Electrical Diagrams

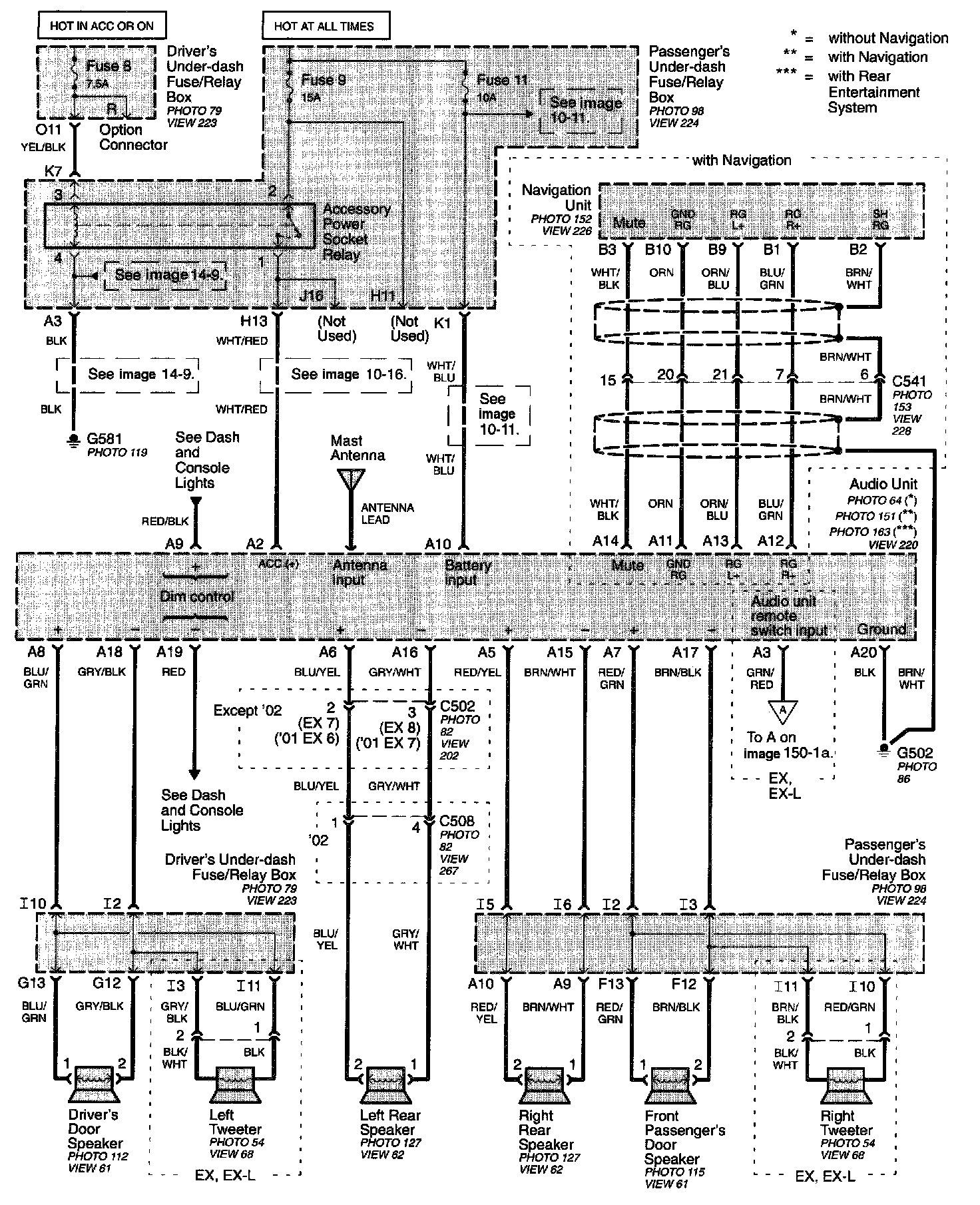

Stereo Sound System Image 150:

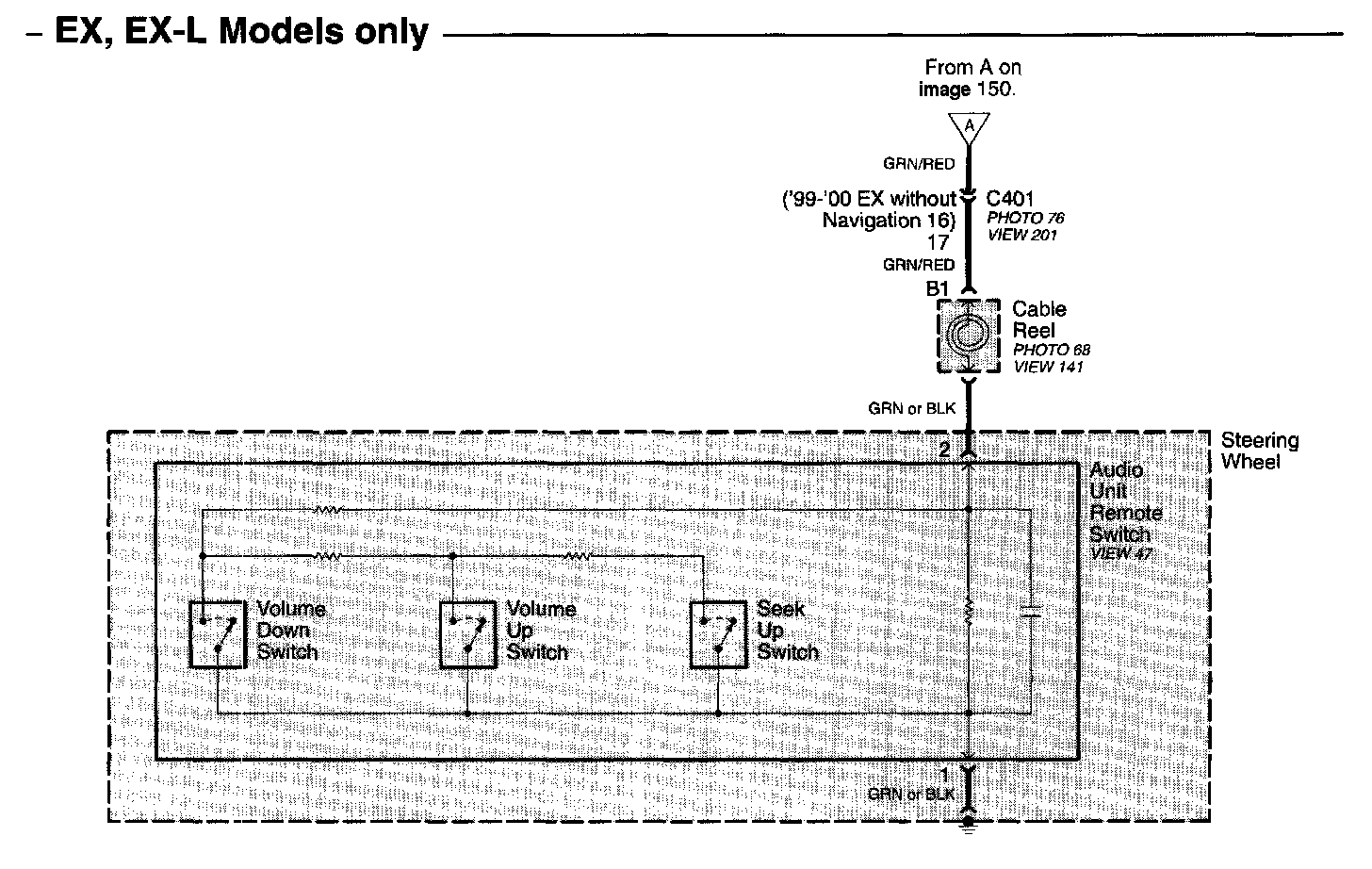

Stereo Sound System - EX, EX-L Models Only Image 150-1a:

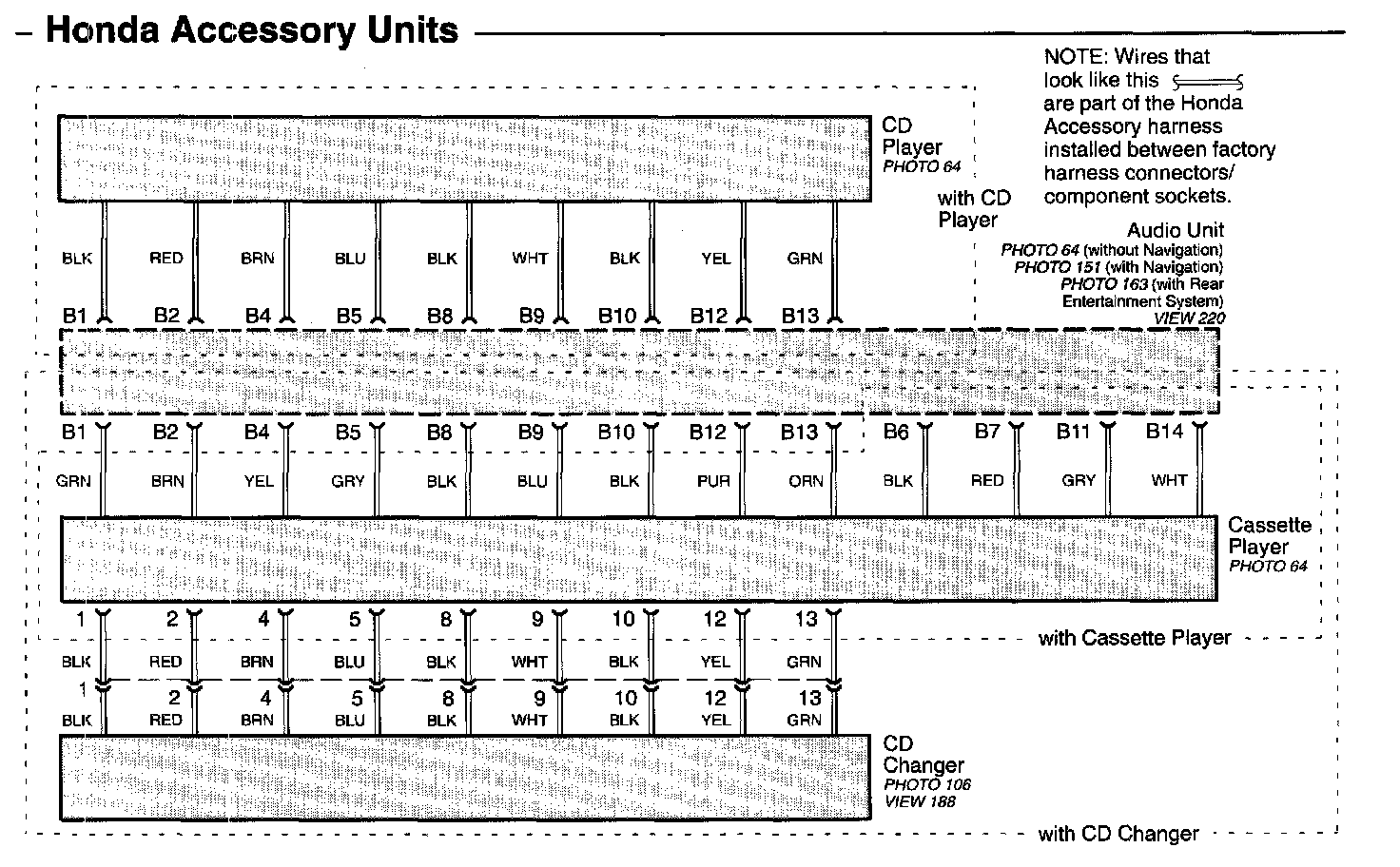

Stereo Sound System - Honda Accessory Units Image 150-1b:

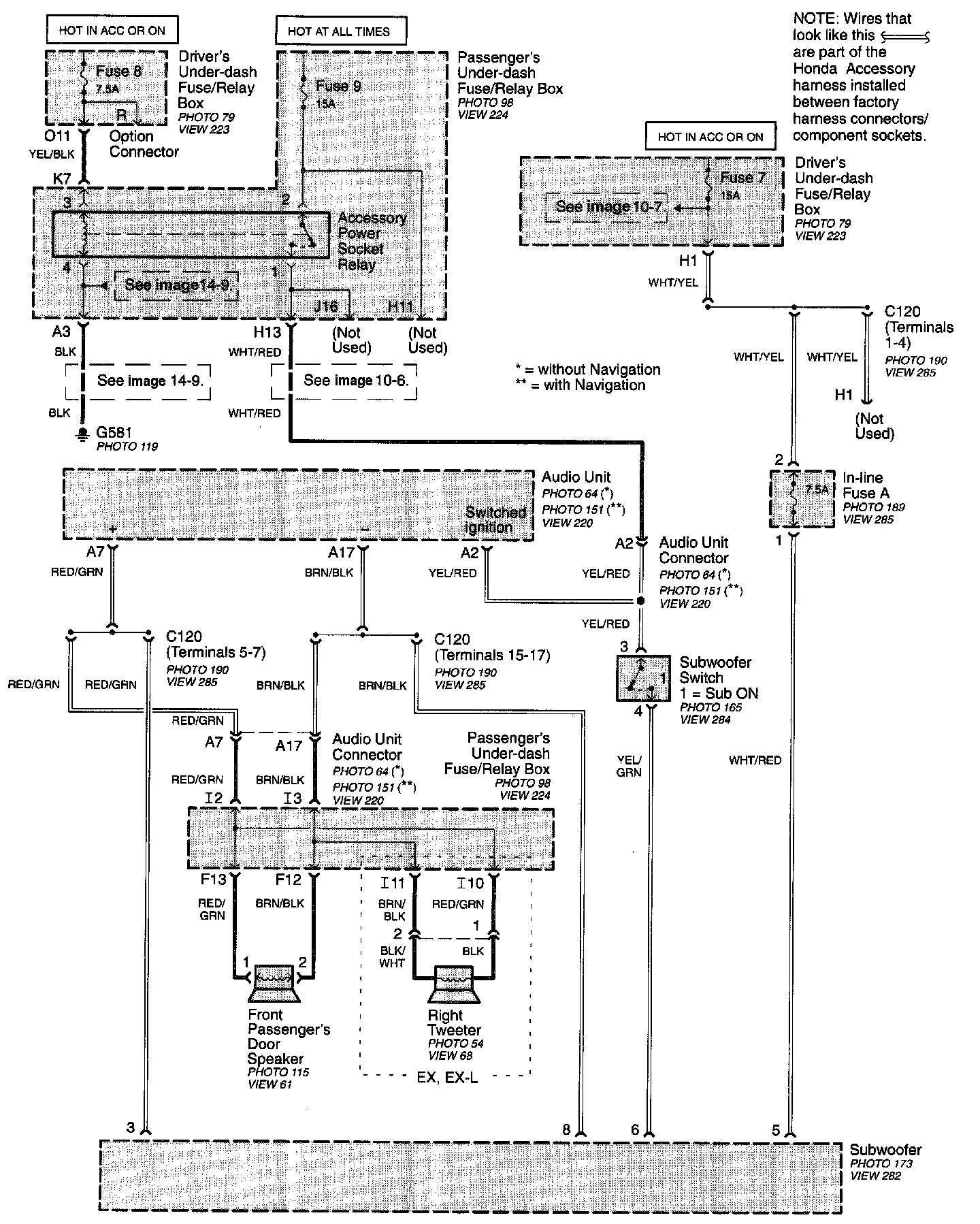

Stereo Sound System (Honda Accessory) Image 150-2:



Stereo Sound System (Honda Accessory) Image 150-3:
