Electrical Diagrams

Diagram 44-0 (99-00 LX):

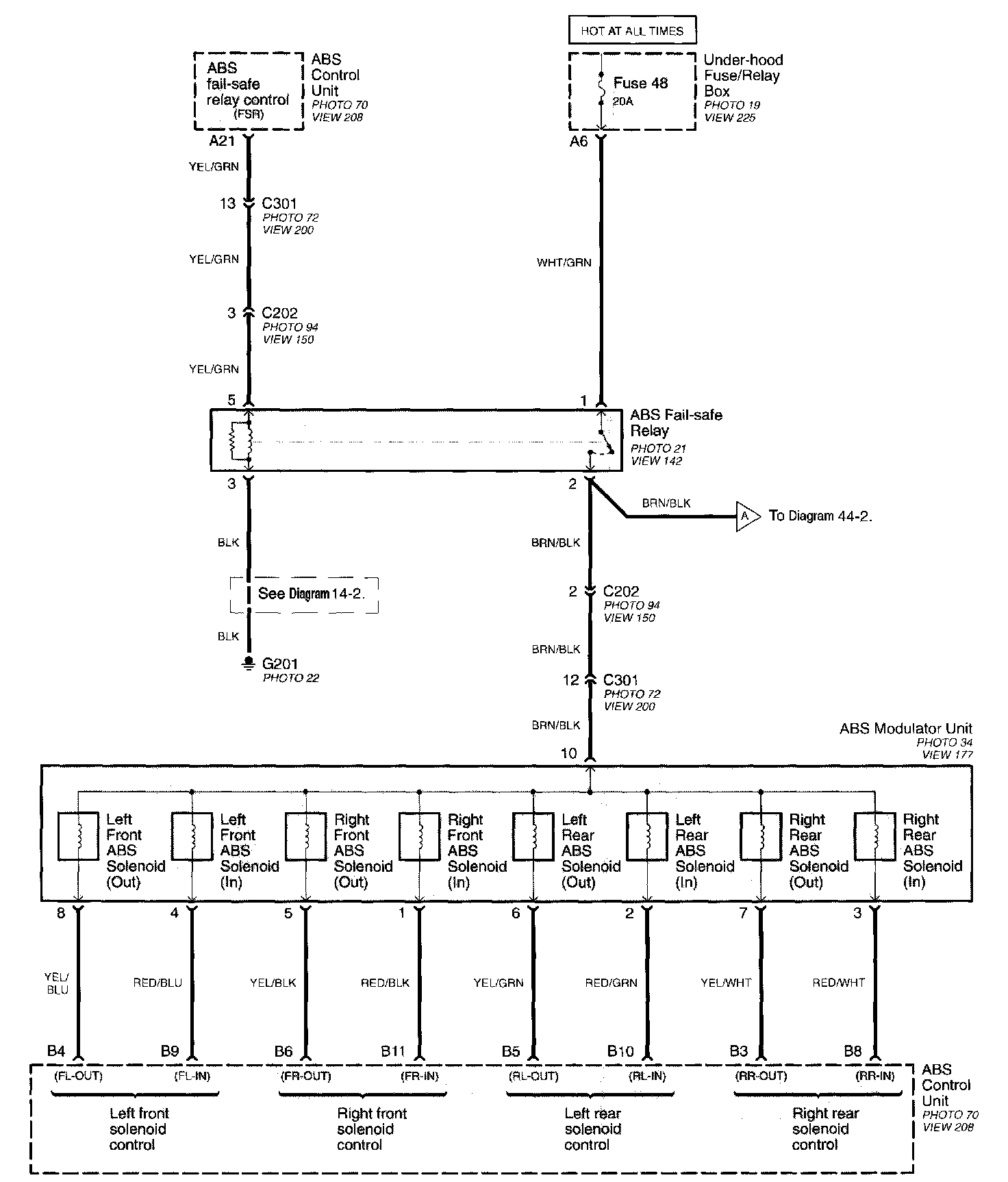

Diagram 44-1 (99-00 LX):

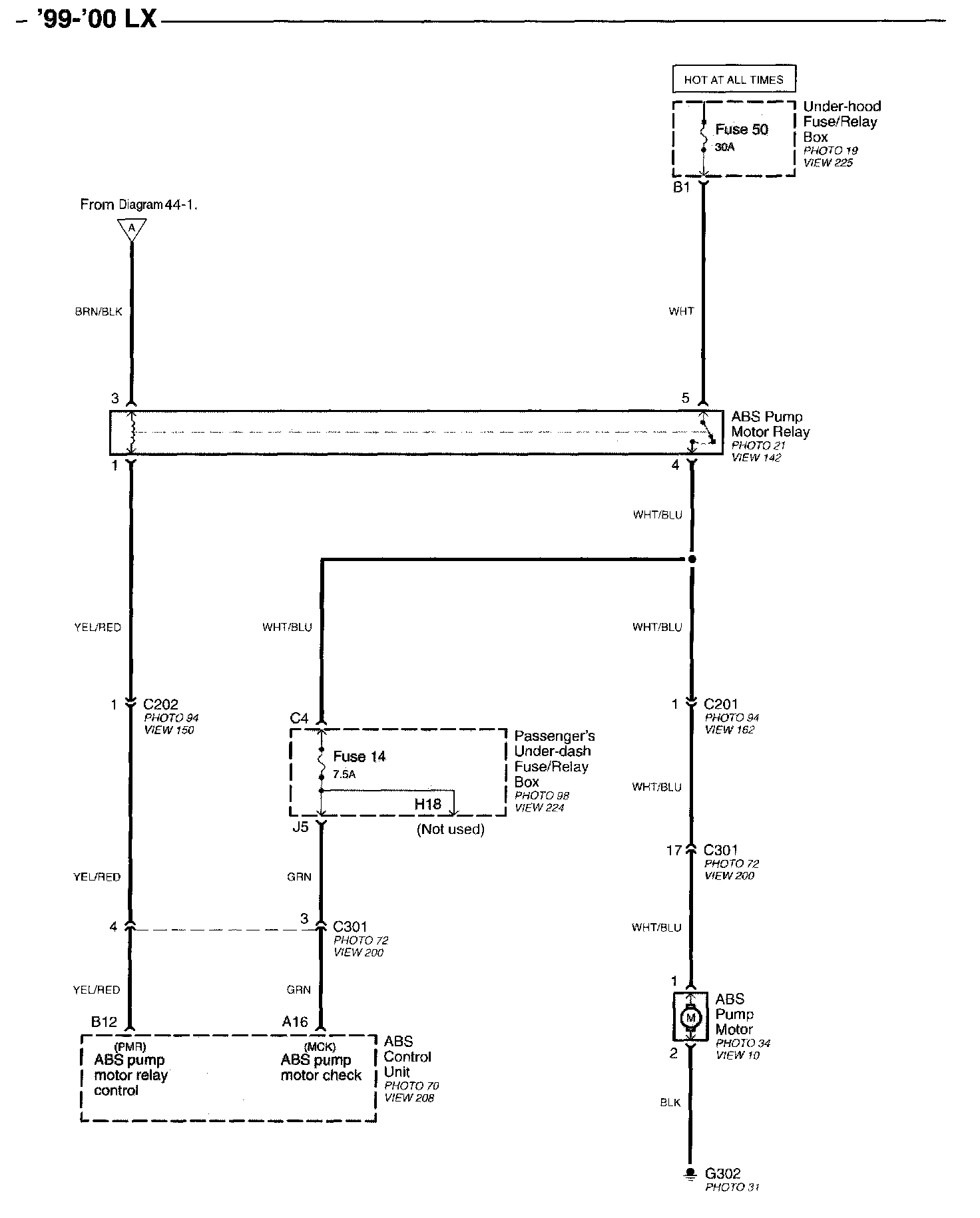

Diagram 44-2 (99-00 LX):

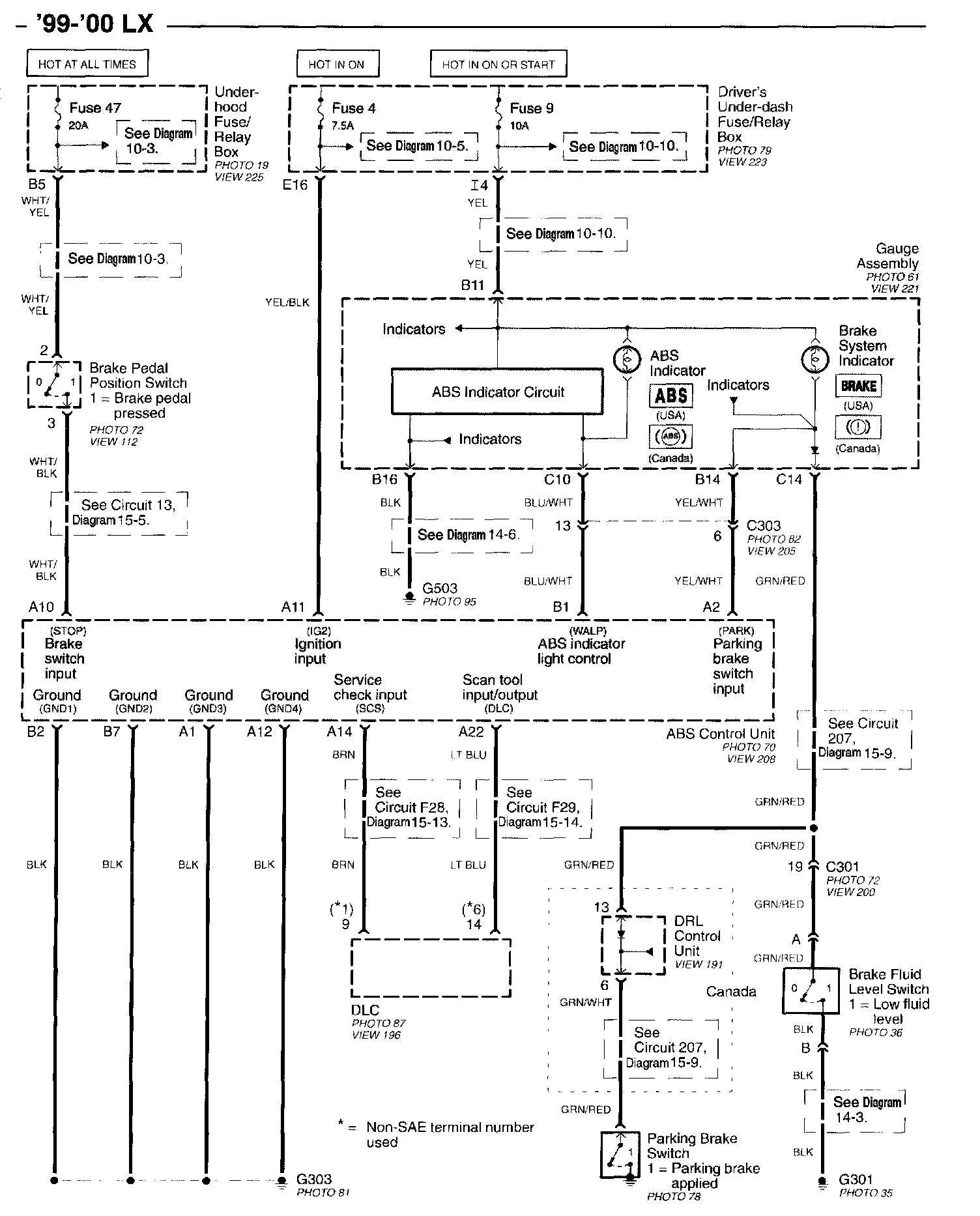

Diagram 44-3 (99-00 LX):

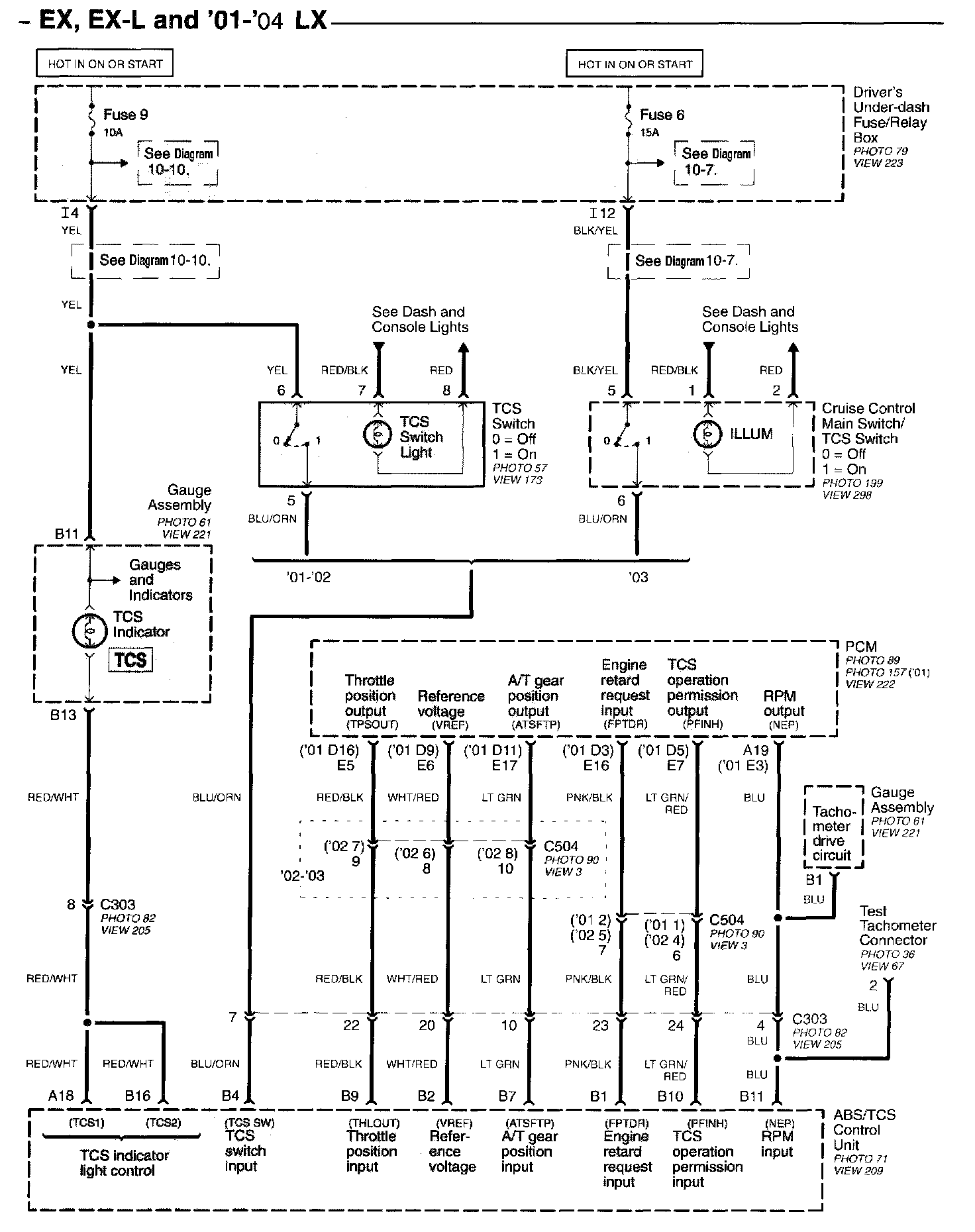

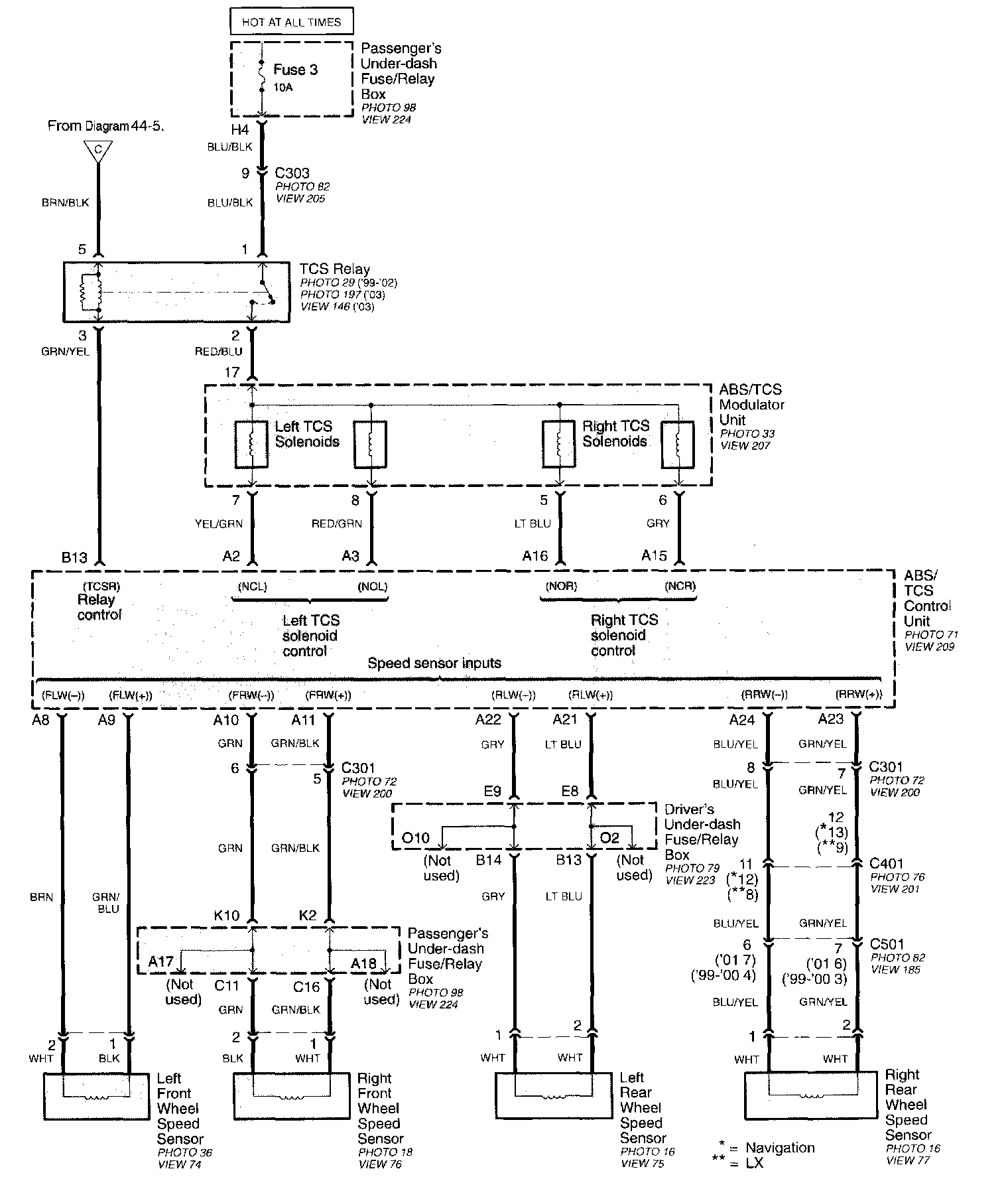

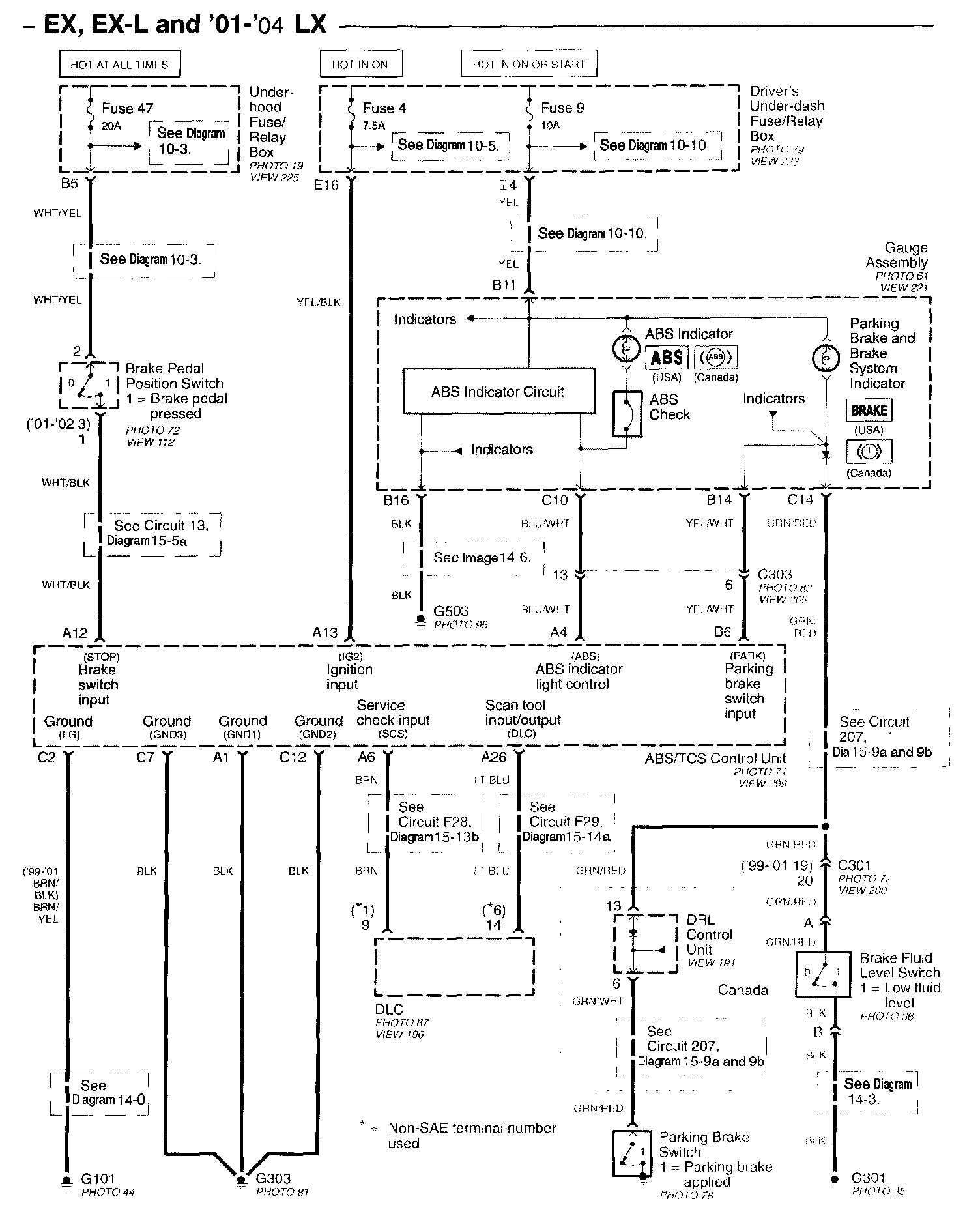

Diagram 44-4 (EX, EX-L And 01-04 LX):

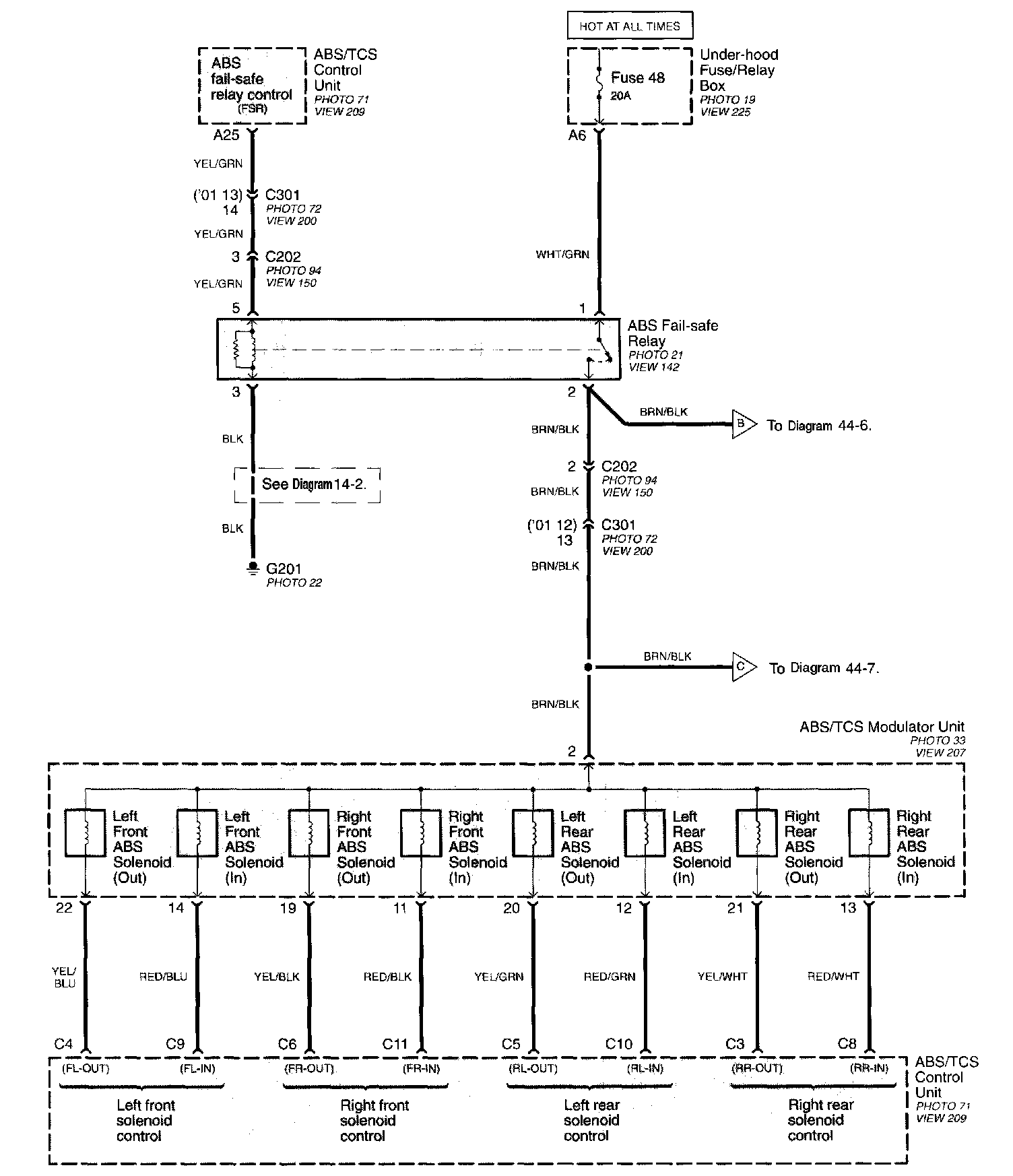

Diagram 44-5 (EX, EX-L And 01-04 LX):

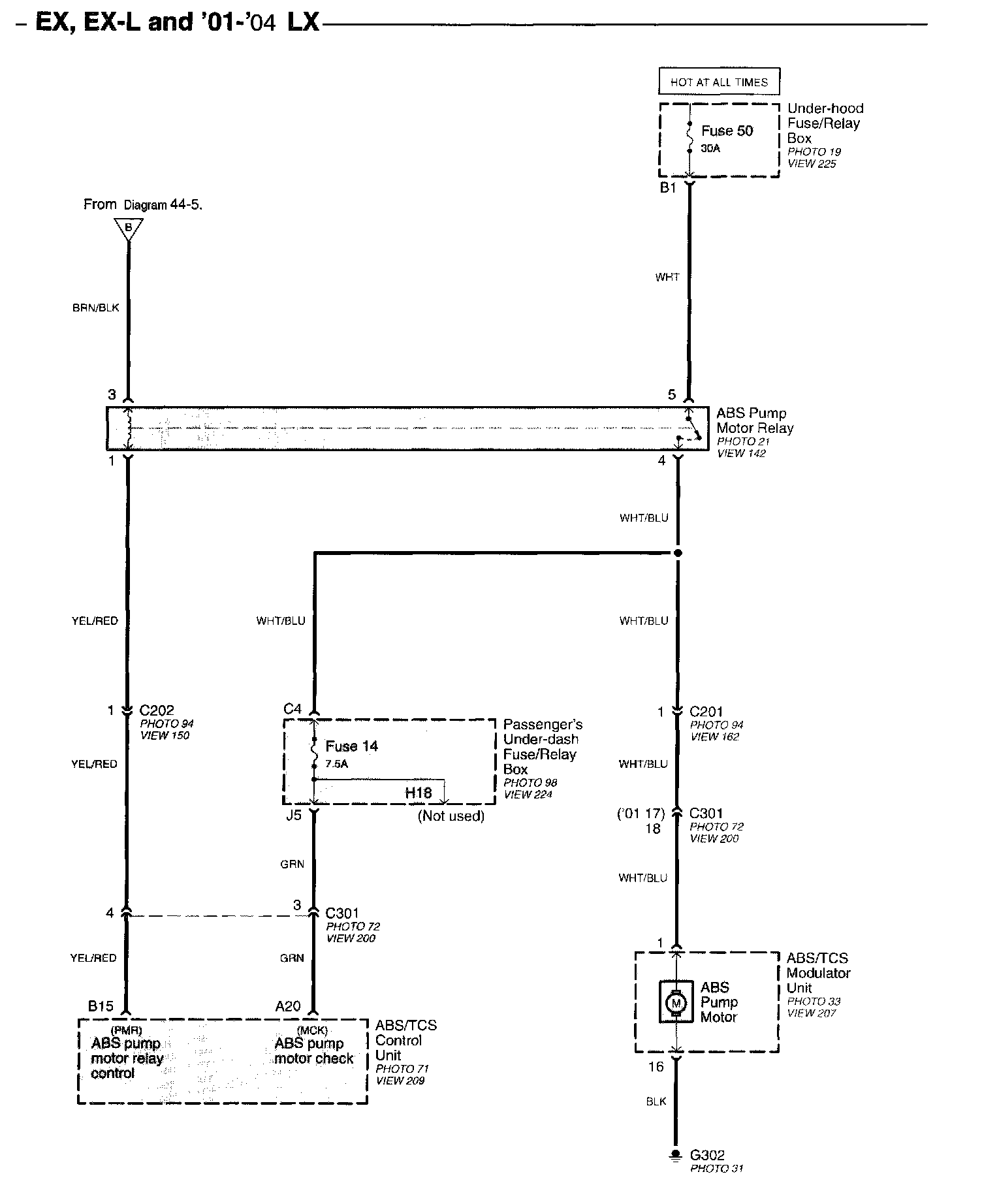

Diagram 44-6 ( EX, EX-L And 01-04 LX):

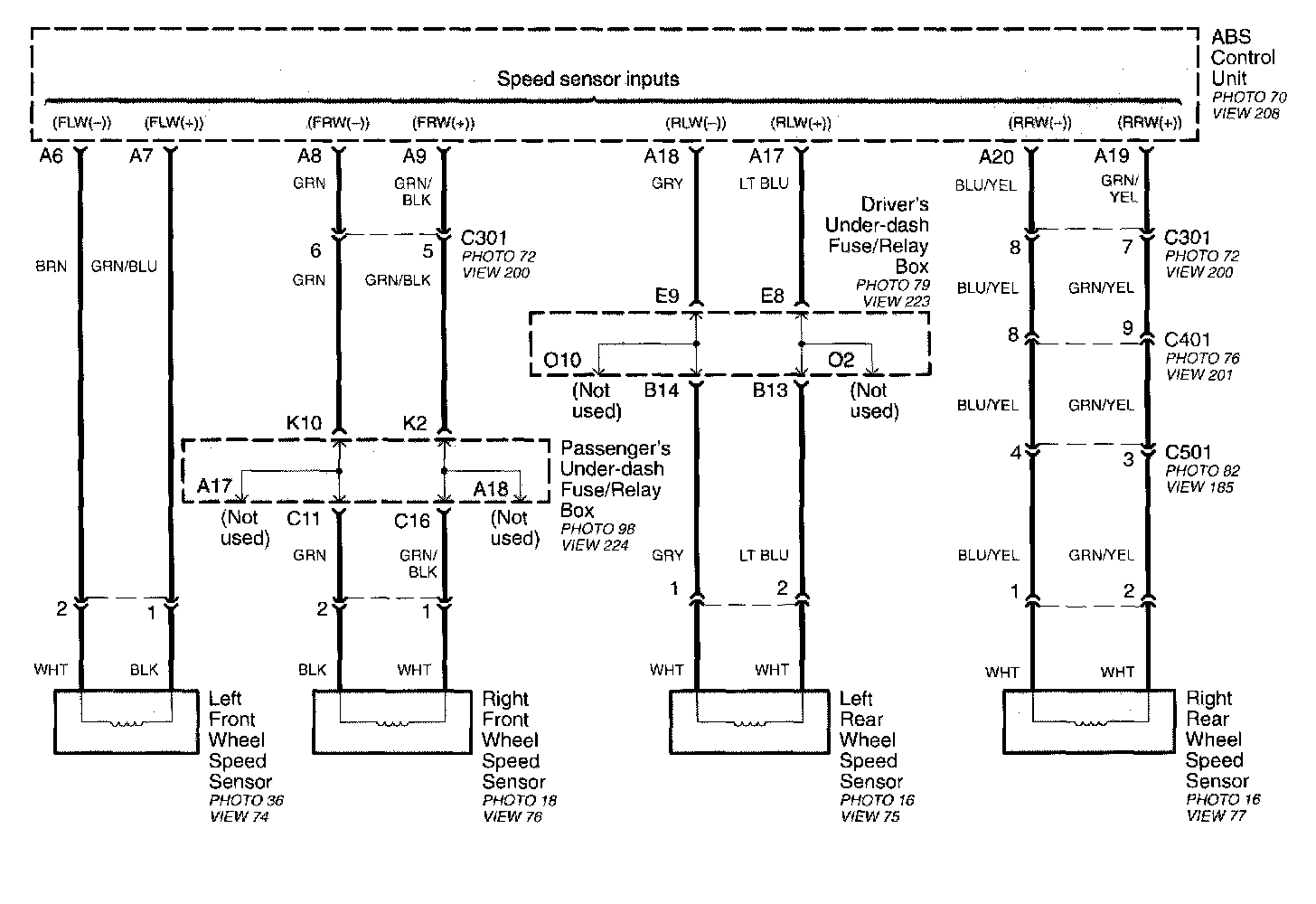

Diagram 44-7 ( EX, EX-L And 01-04 LX):

Diagram 44-8 ( EX, EX-L And 01-04 LX):
