139-5 to 139-7

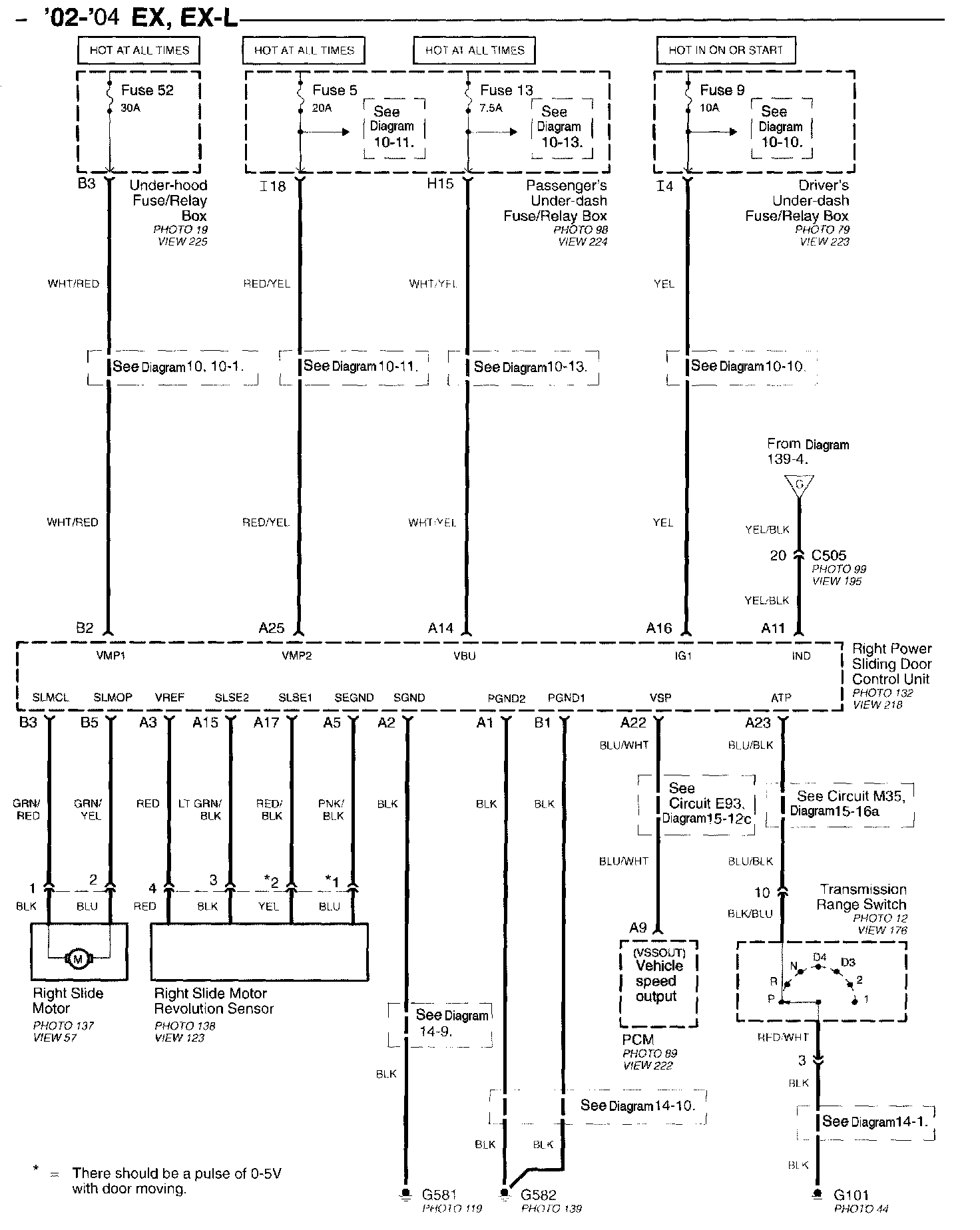

Diagram 139-5 (02-04 EX, EX-L):

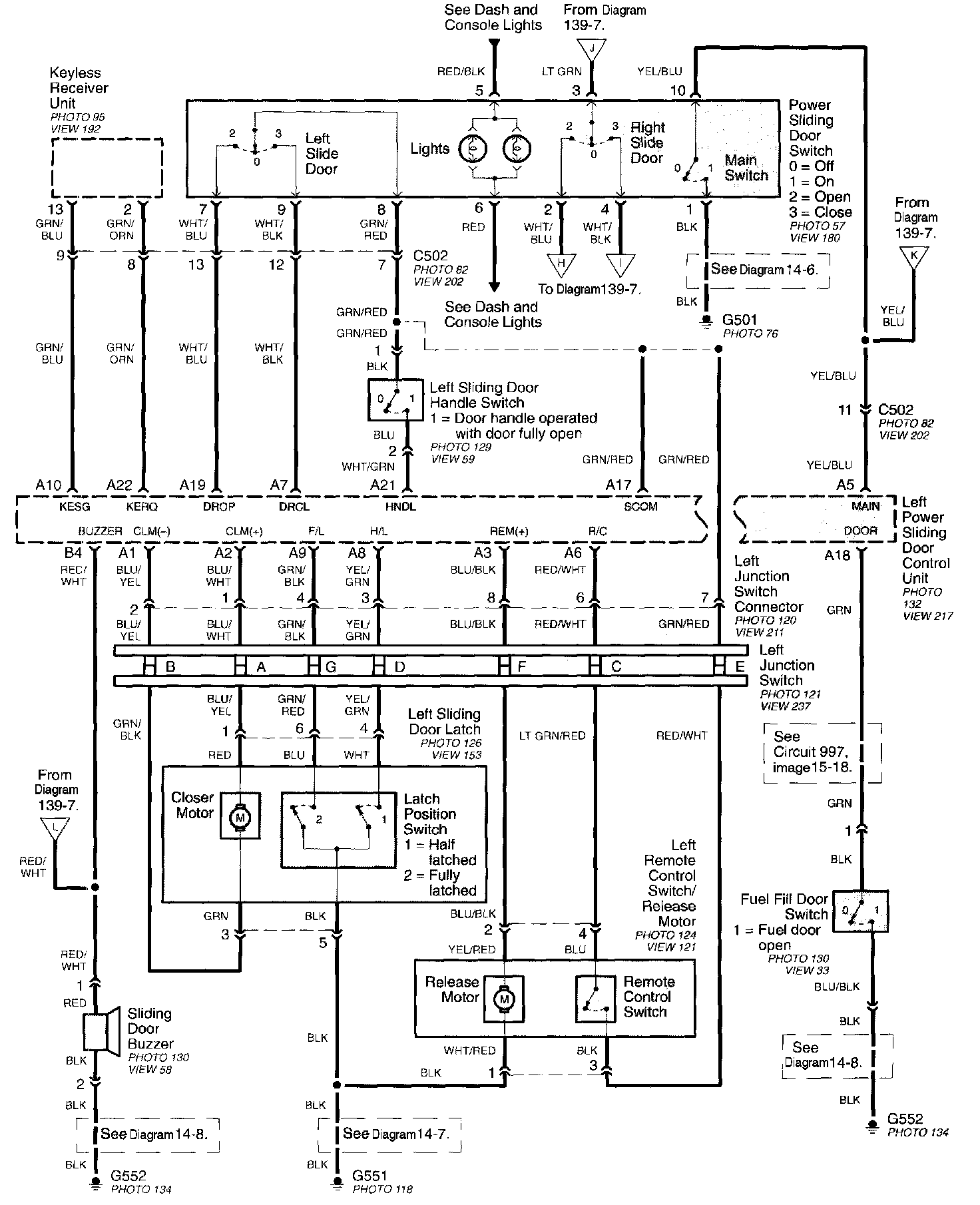

Diagram 139-6 (02-04 EX, EX-L):

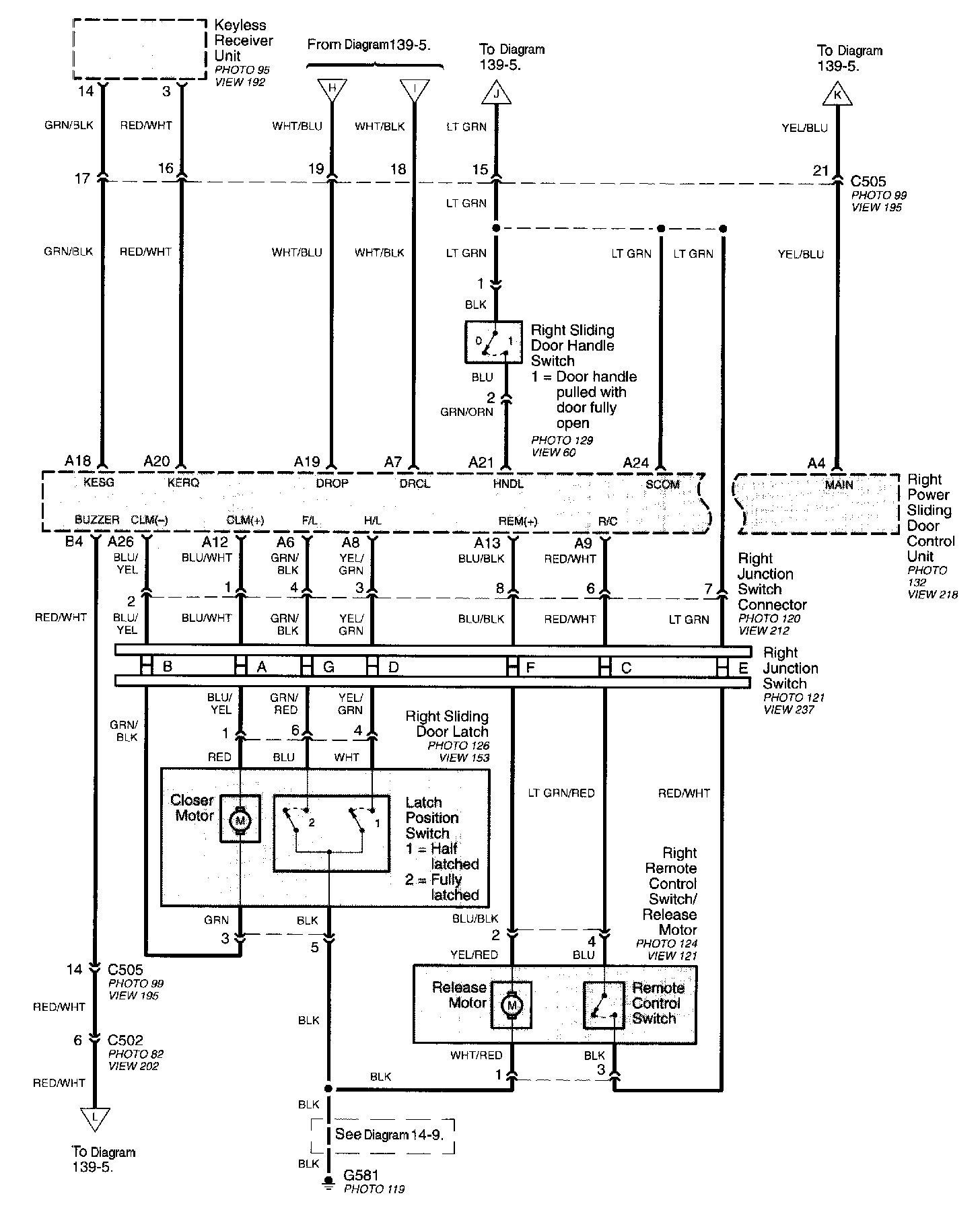

Diagram 139-7 (02-04 EX, EX-L):
