Diagram Set 160
>>
160-0 to 160-4
160-0 to 160-4

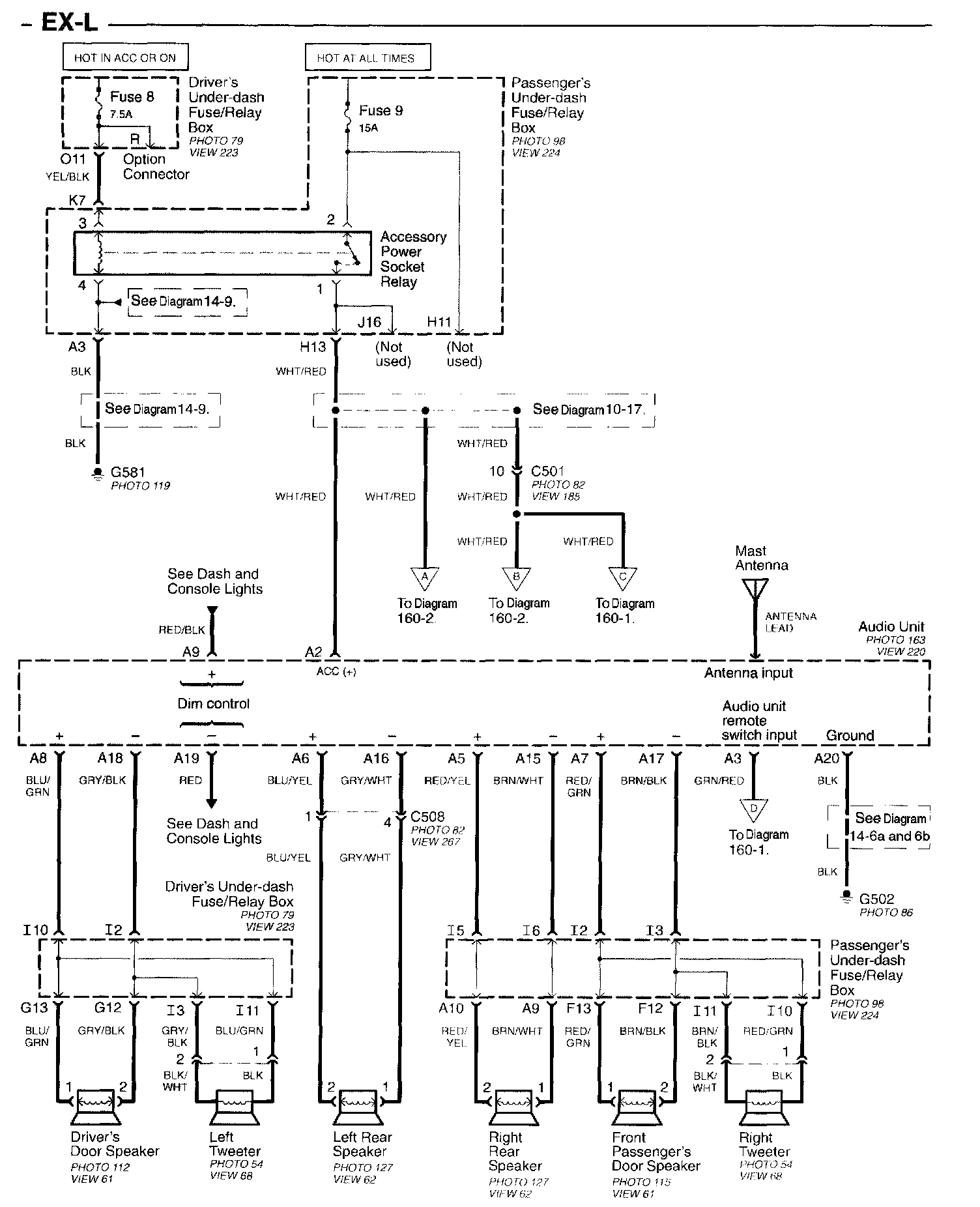

Diagram 160-0 (EX-L):

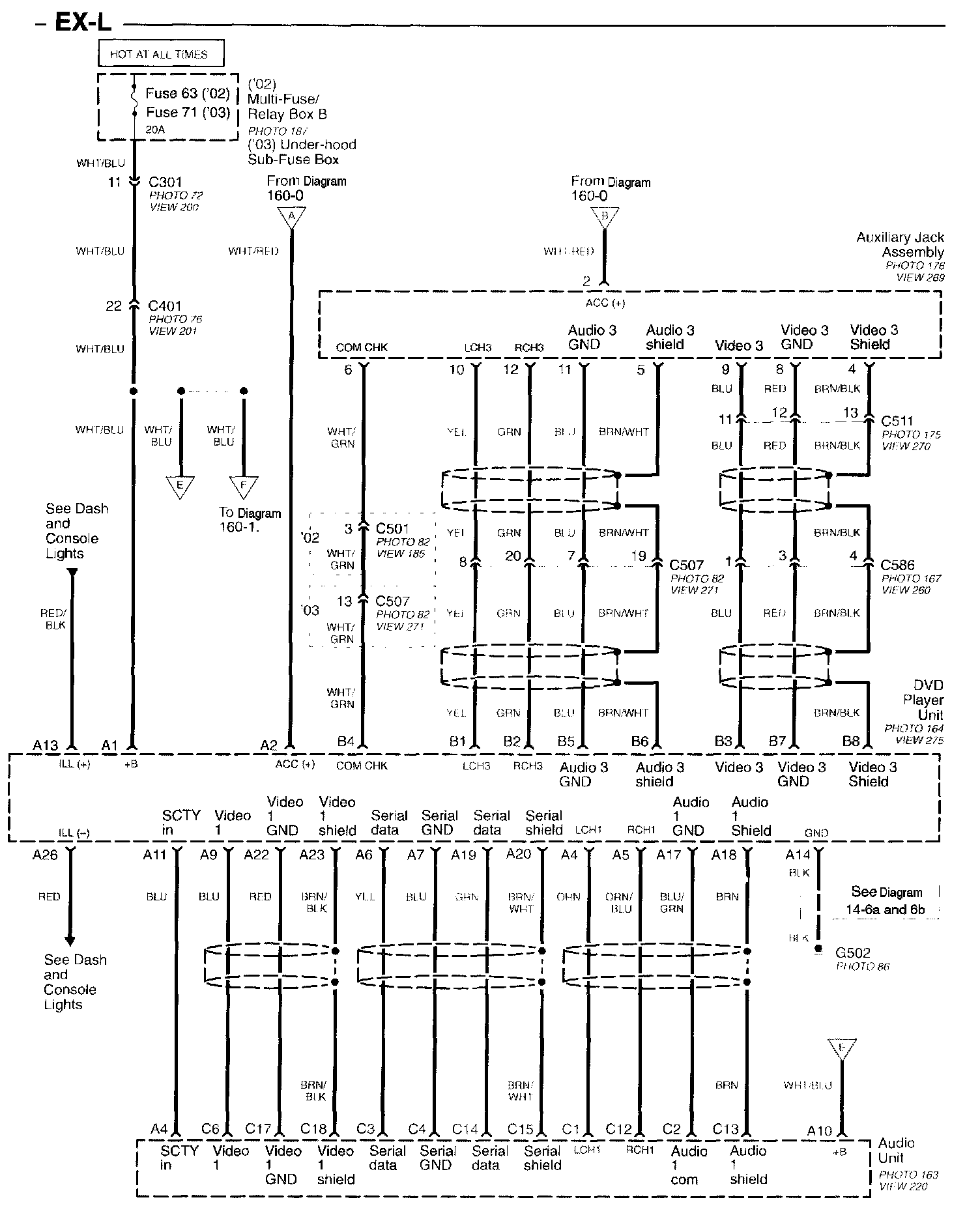

Diagram 160-1 (EX-L):

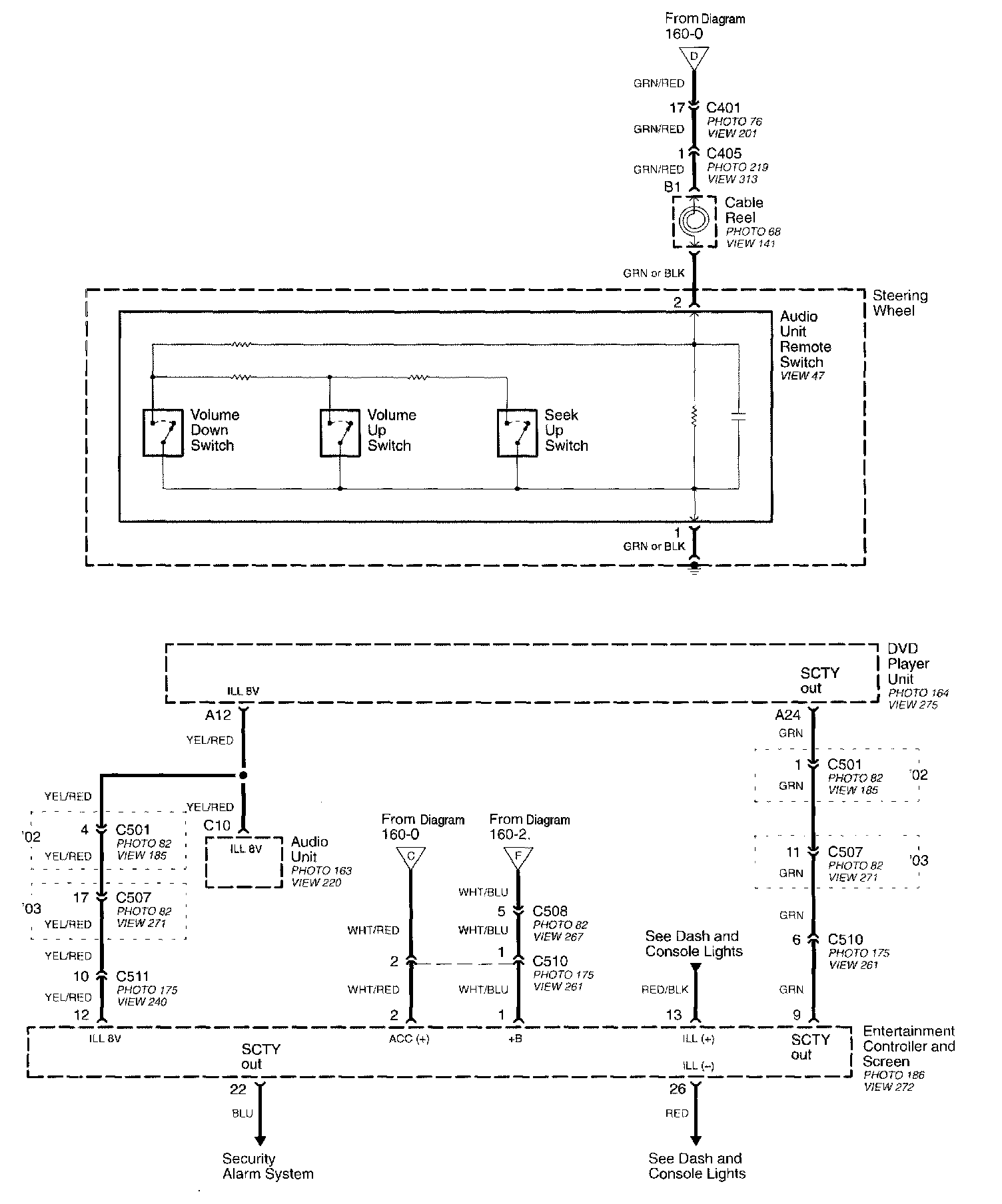

Diagram 160-2 (EX-L):

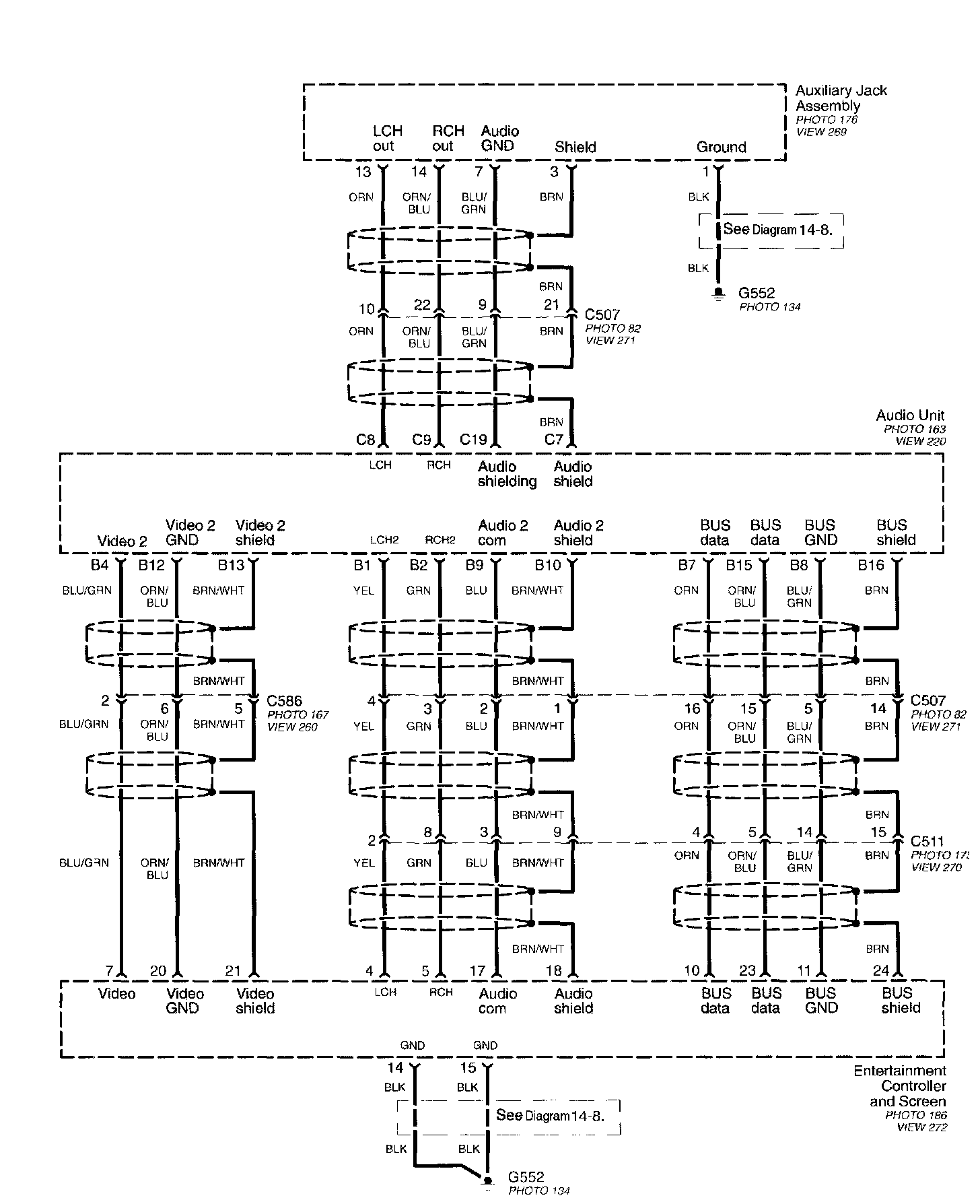

Diagram 160-3 (EX-L):

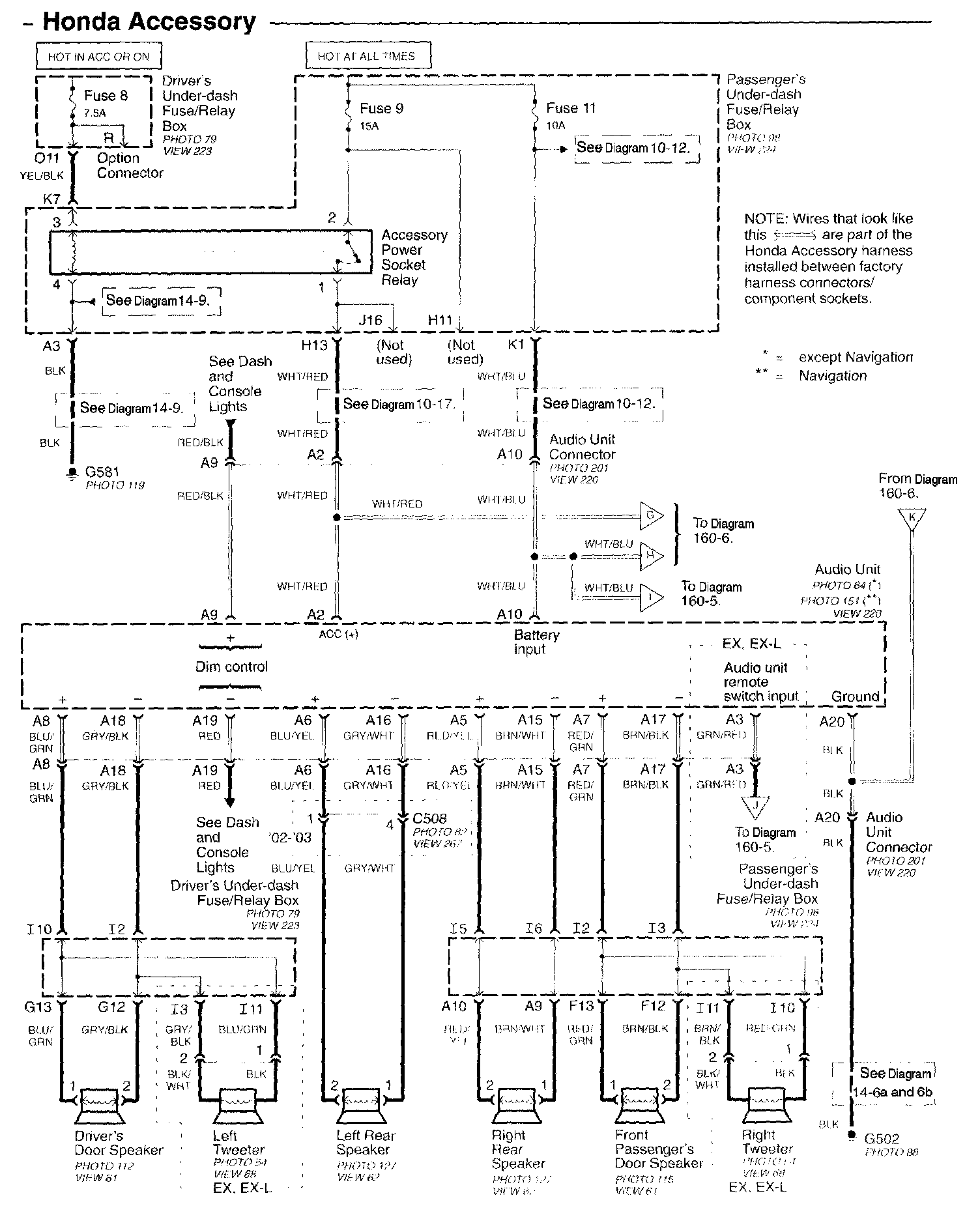

Diagram 160-4:
