Diagram Set 47
Diagram Set 47

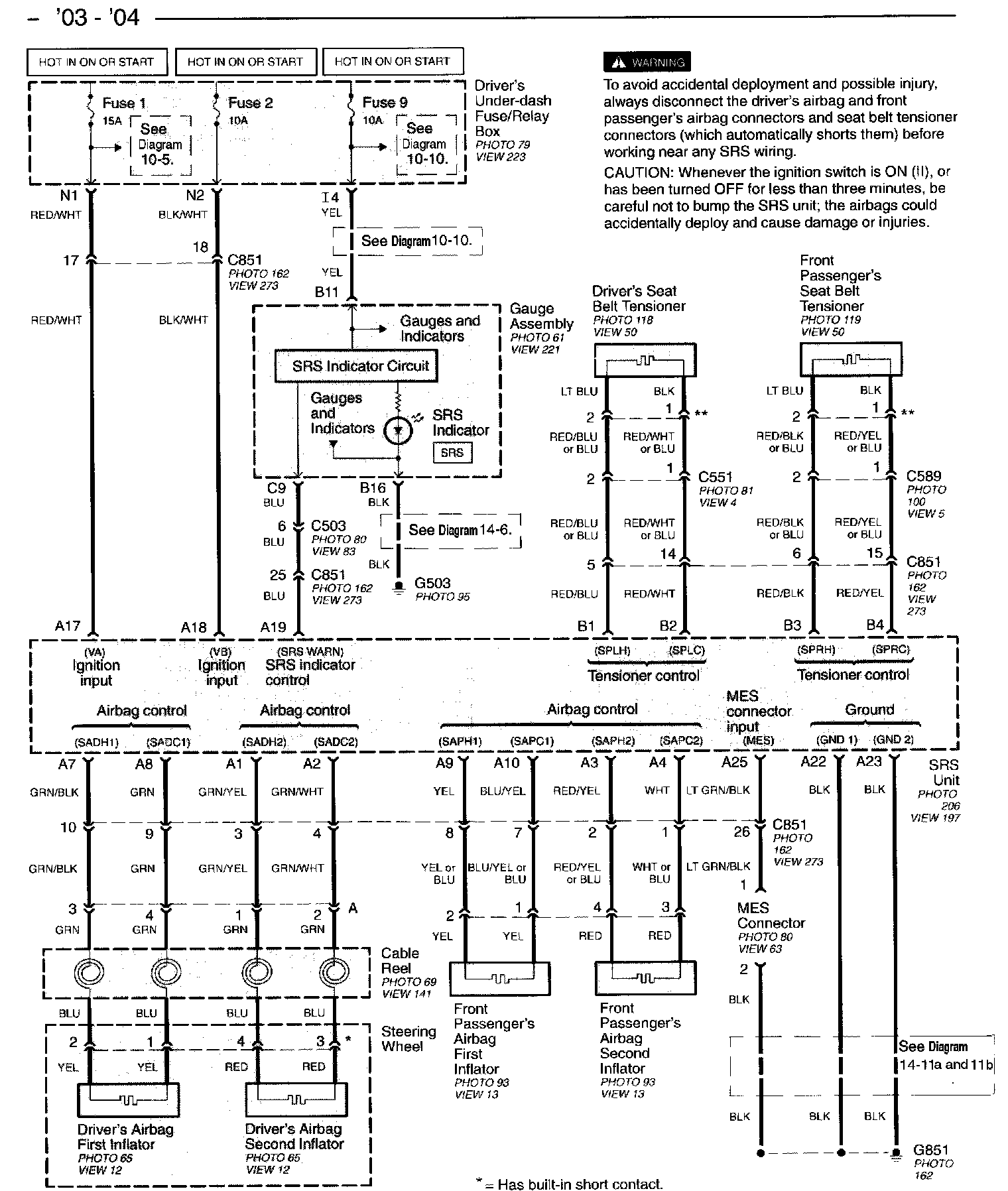

Diagram 47-5 (03-04):

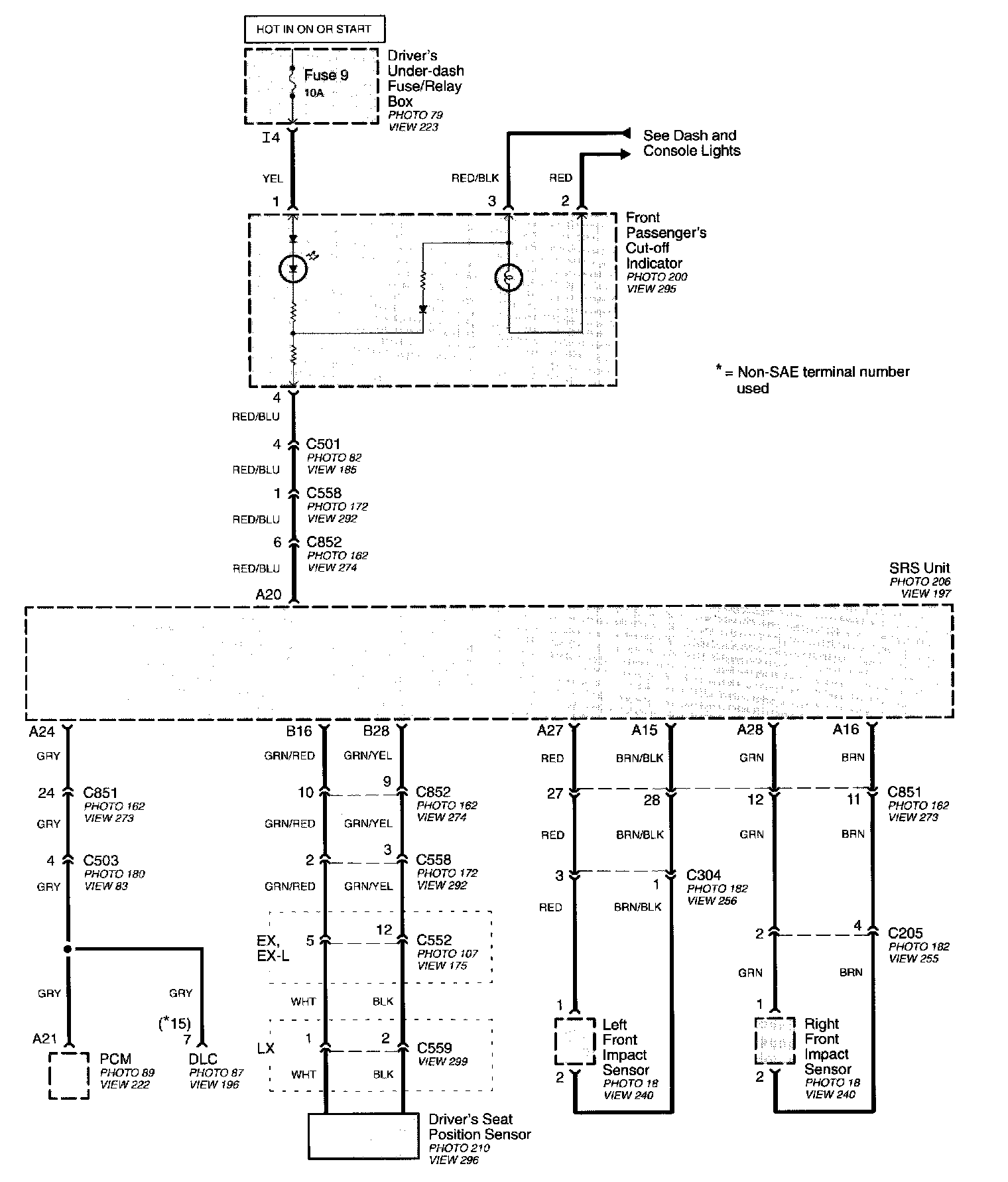

Diagram 47-6 (03-04):

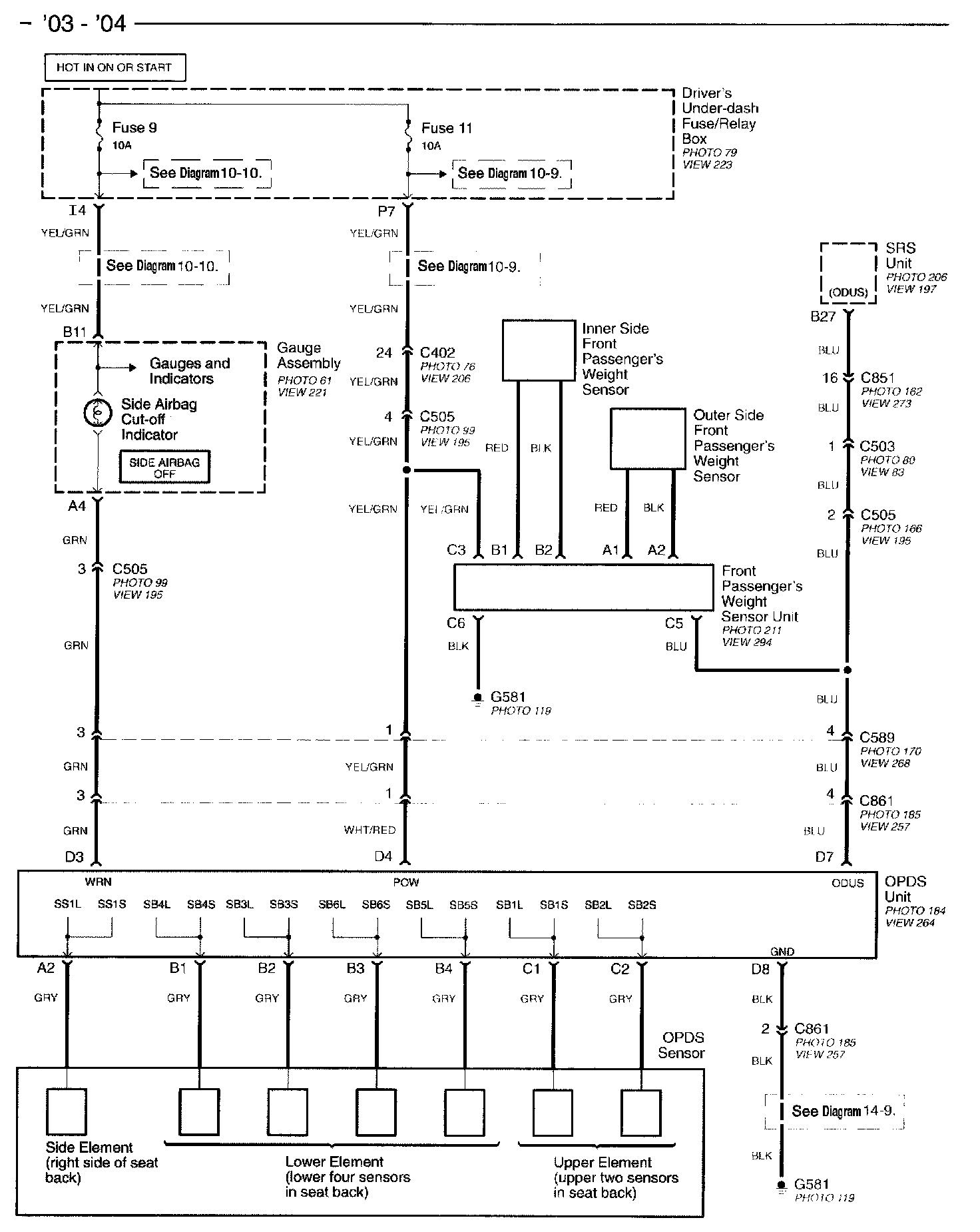

Diagram 47-7 (03-04):

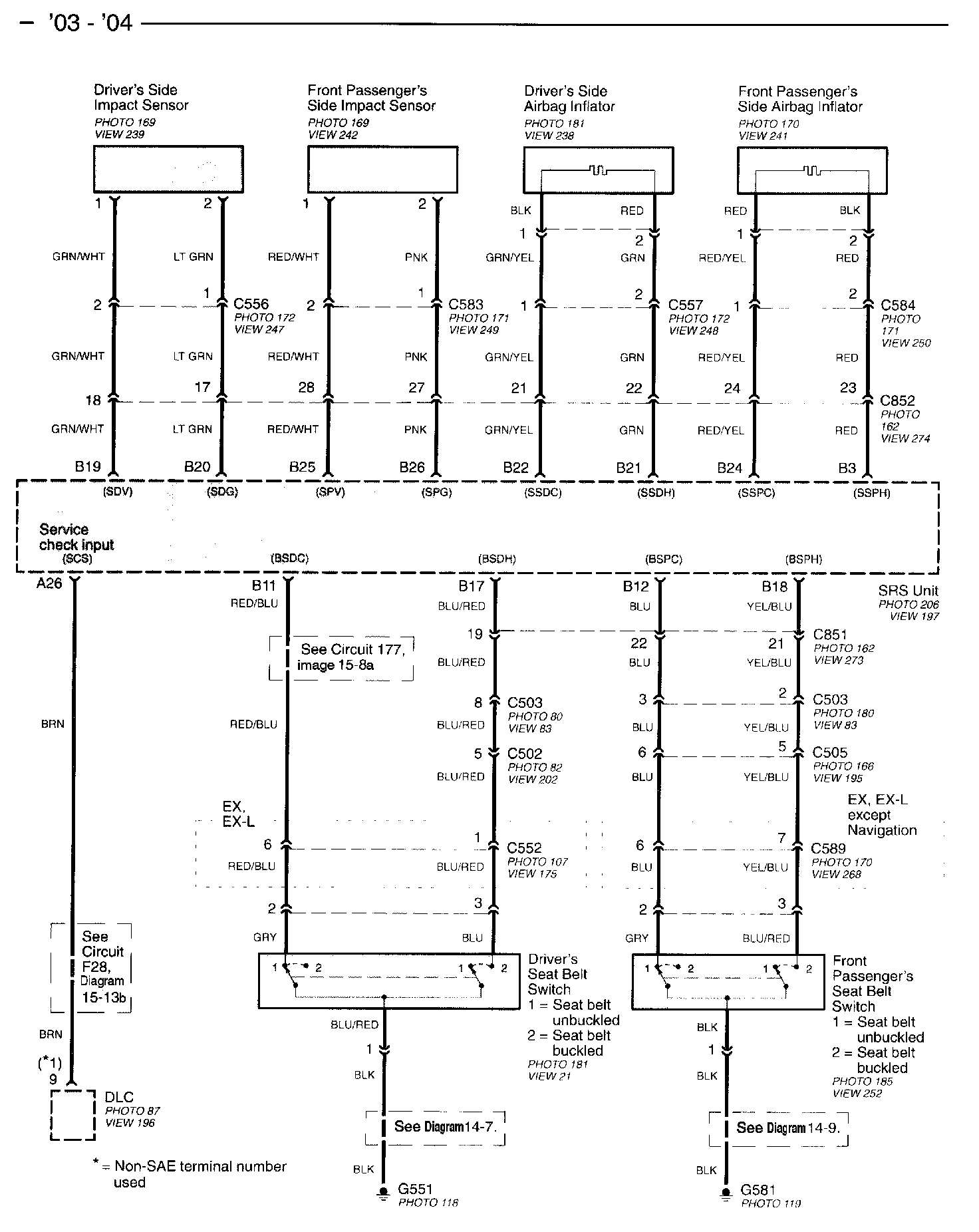

Diagram 47-8 (03-04):
