Diagram Set 60
>>
60-0 to 60-8
60-0 to 60-8

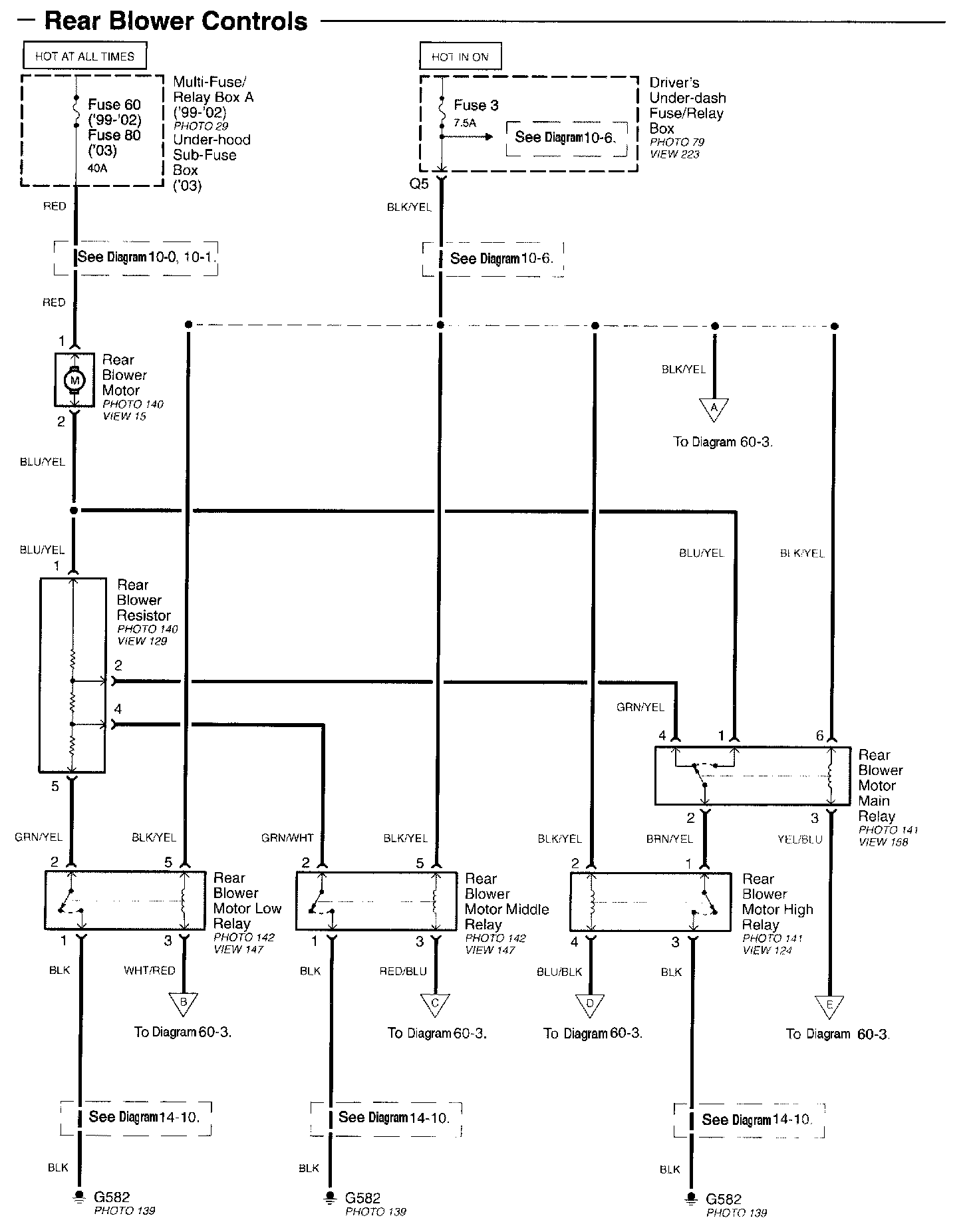

Diagram 60-0 (LX):

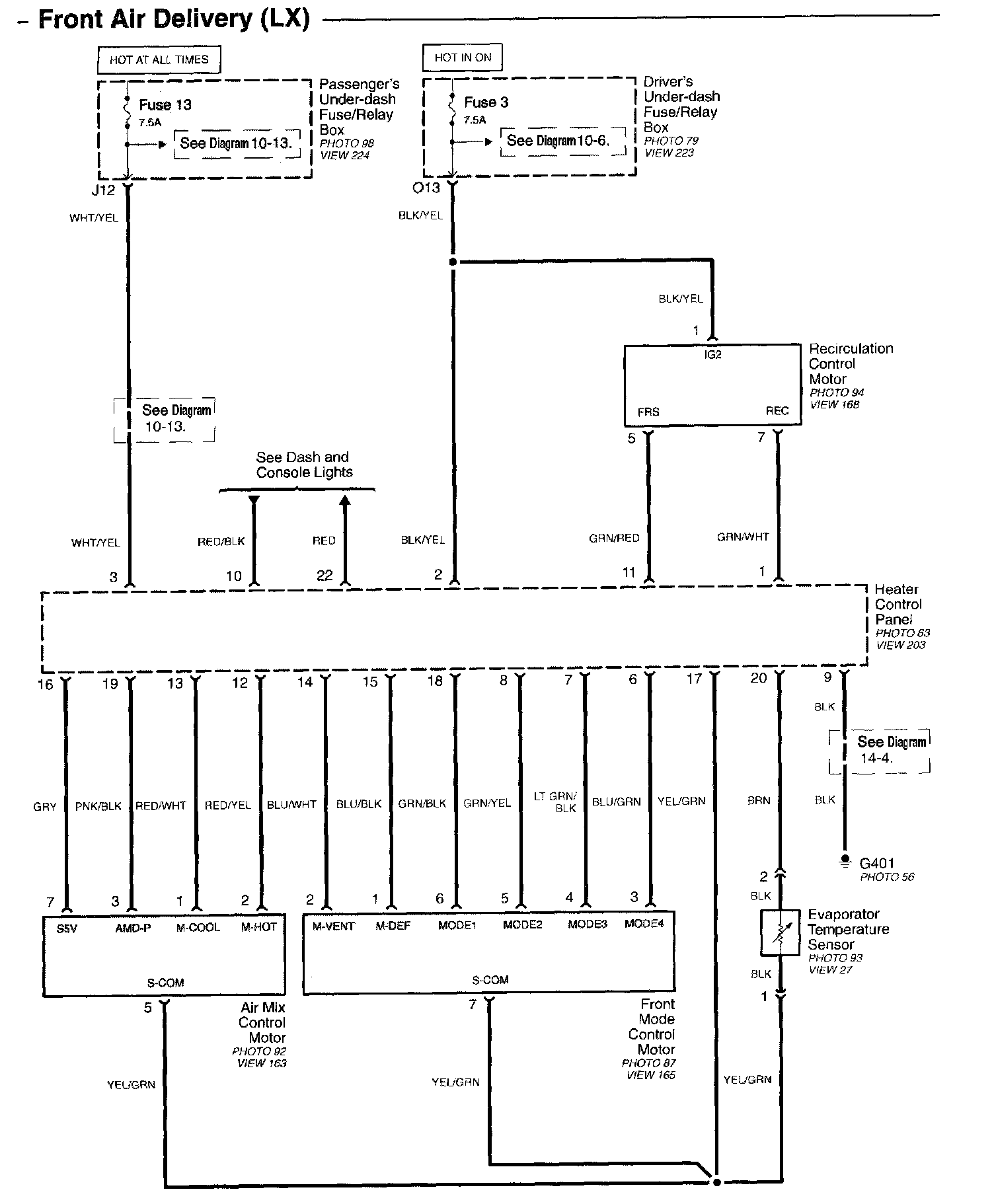

Diagram 60-2:

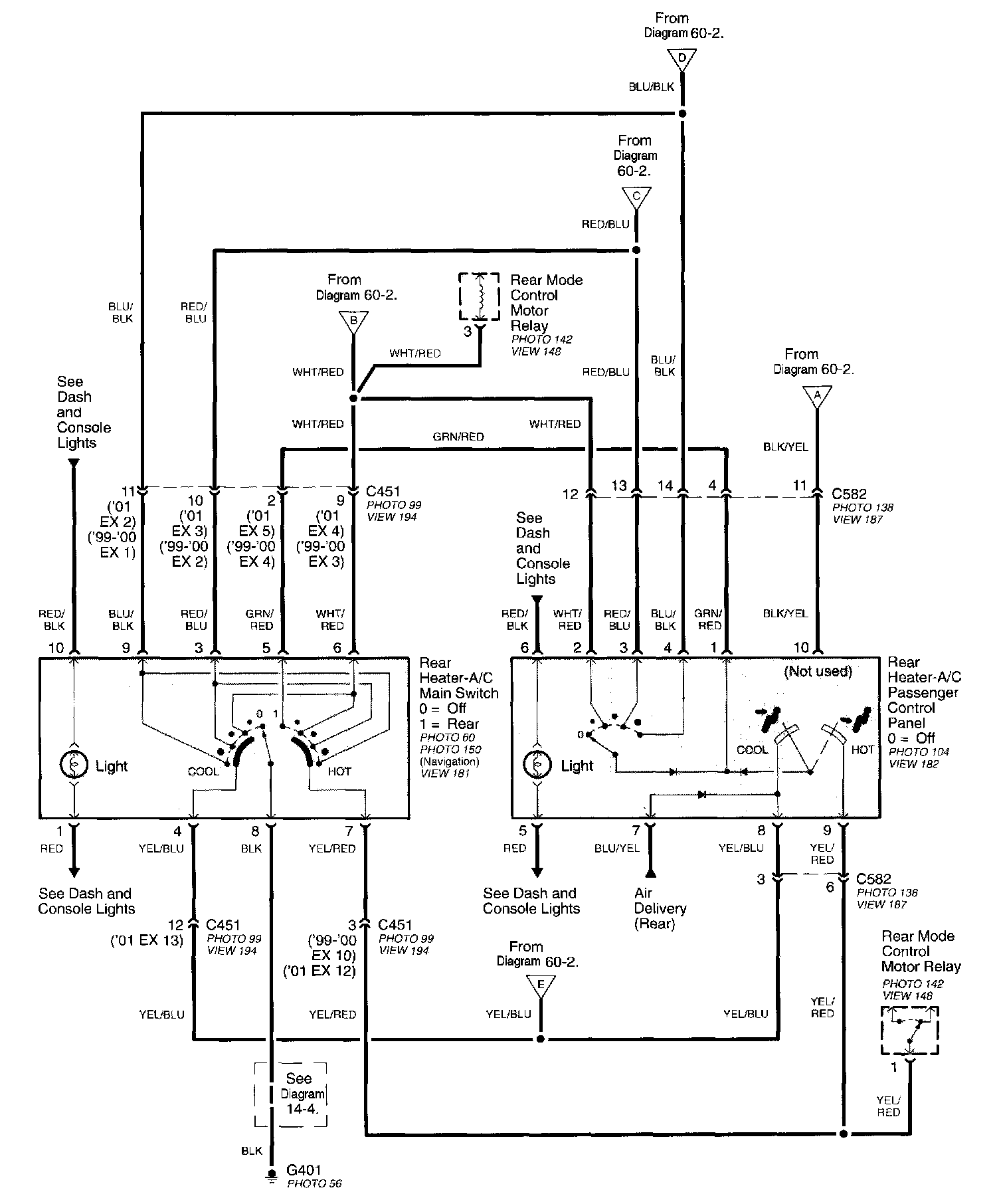

Diagram 60-3:

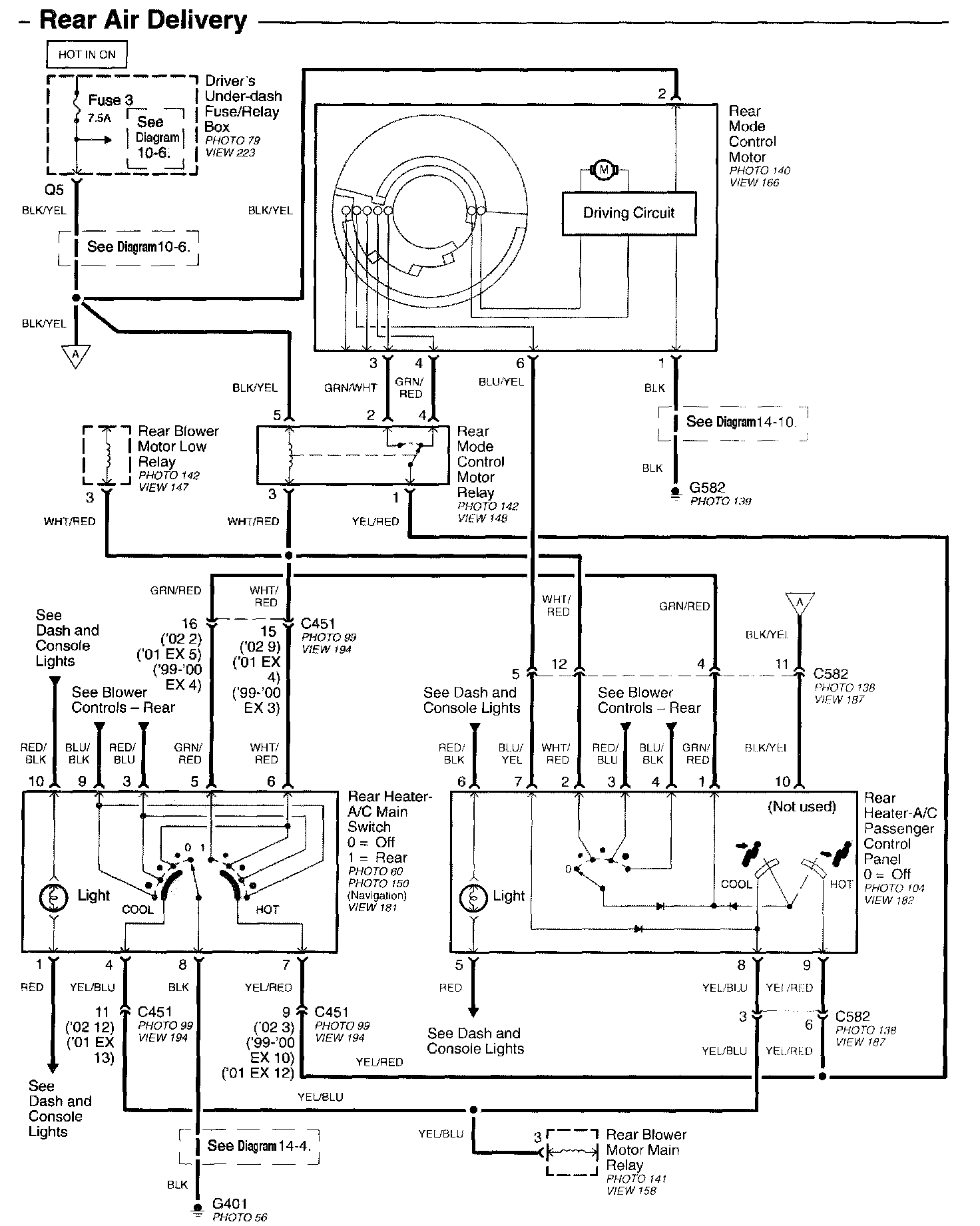

Diagram 60-6 (LX):

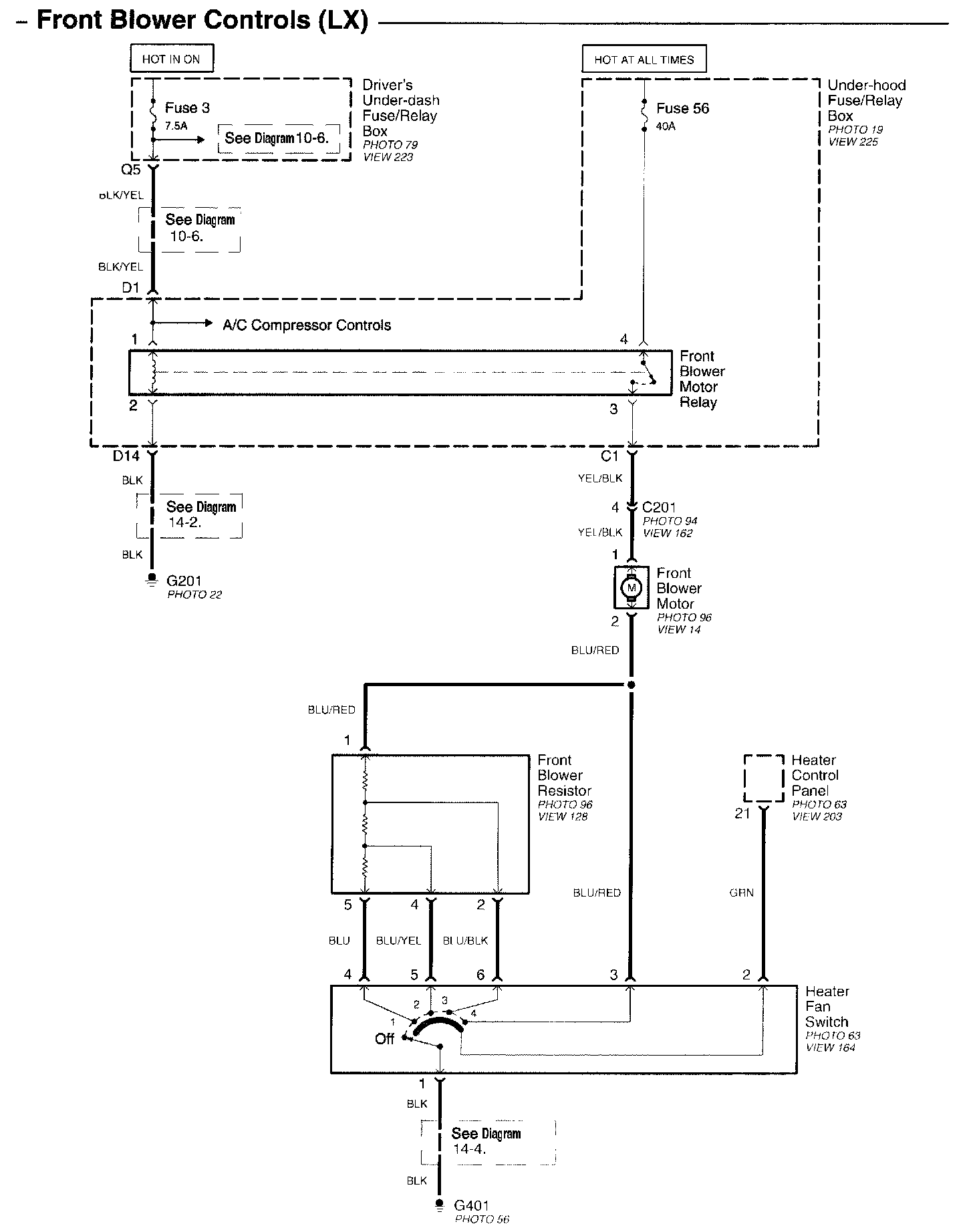

Diagram 60-8:
