60-10 to 60-16

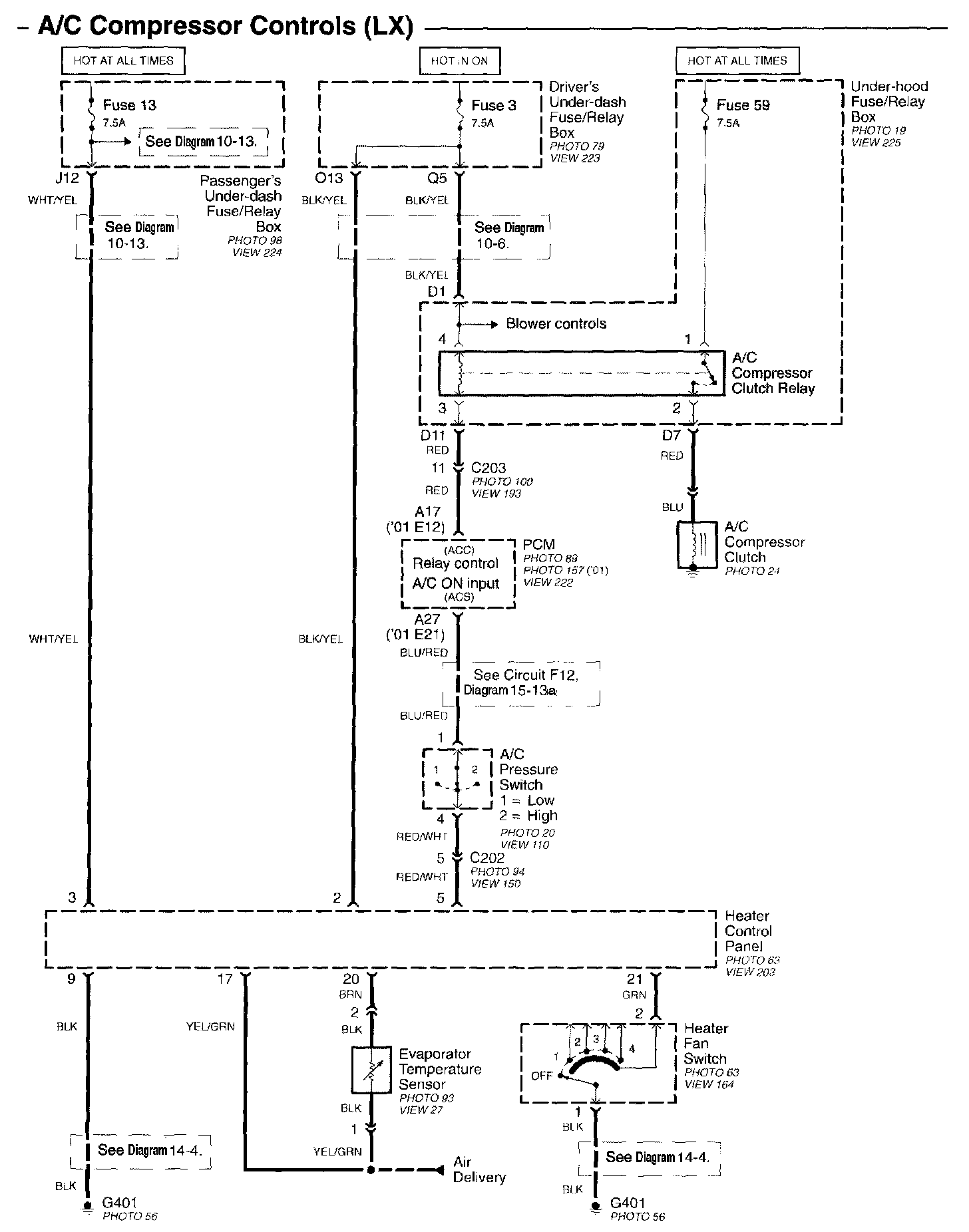

Diagram 60-10 (LX):

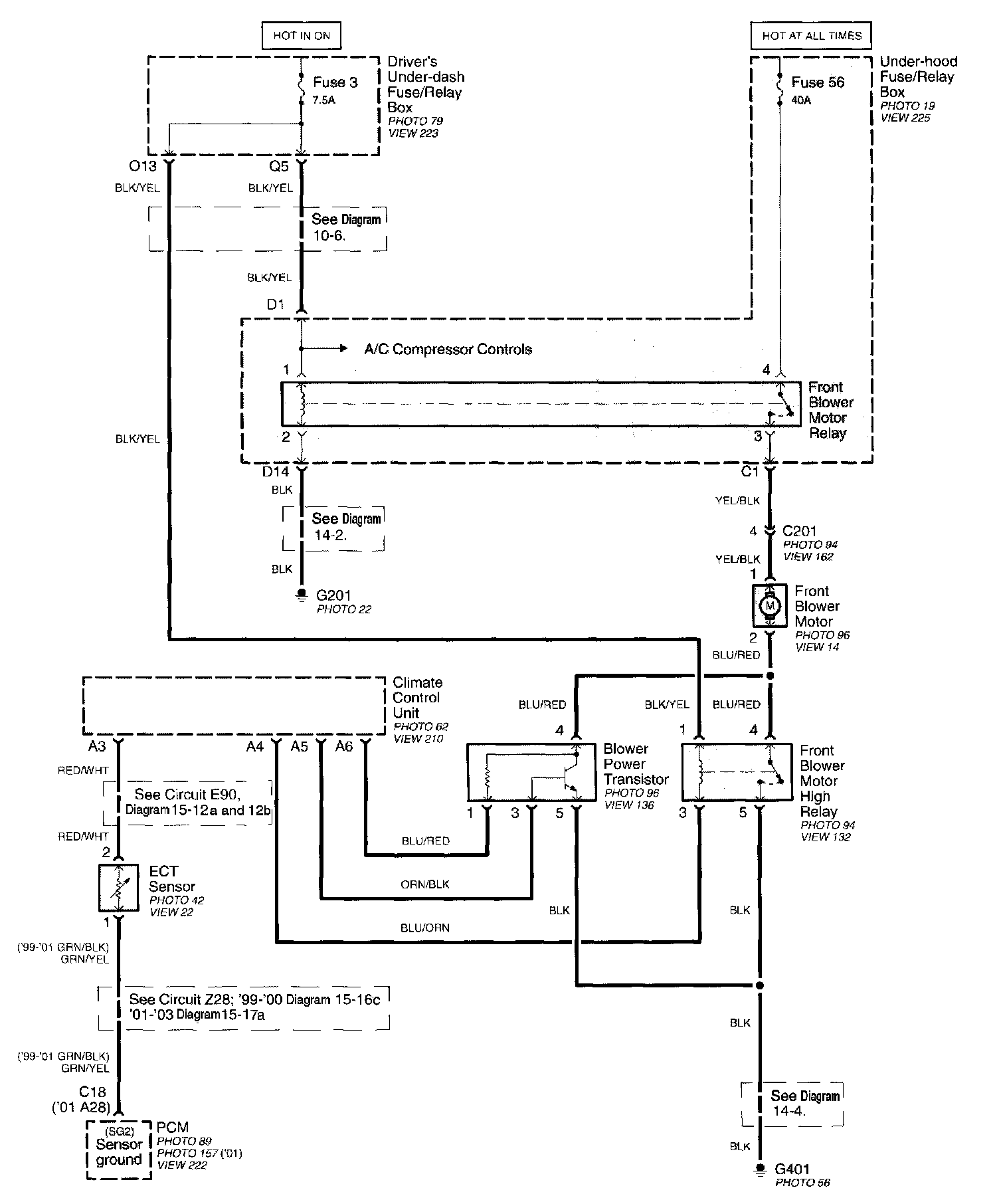

Diagram 60-13 (LX):

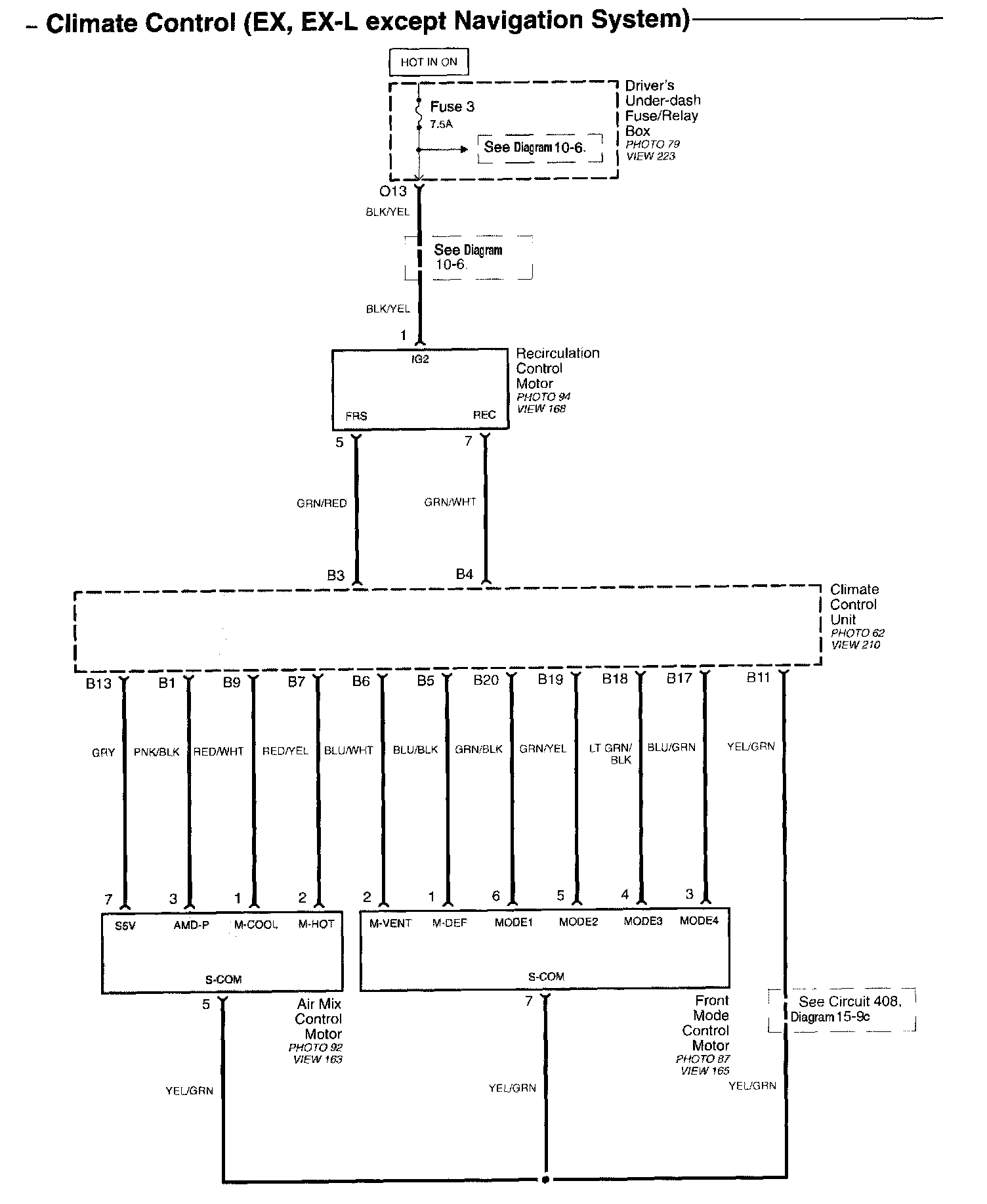

Diagram 60-14 (EX, EX-L Except Navigation System):



Diagram 60-15 (EX, EX-L Except Navigation System):

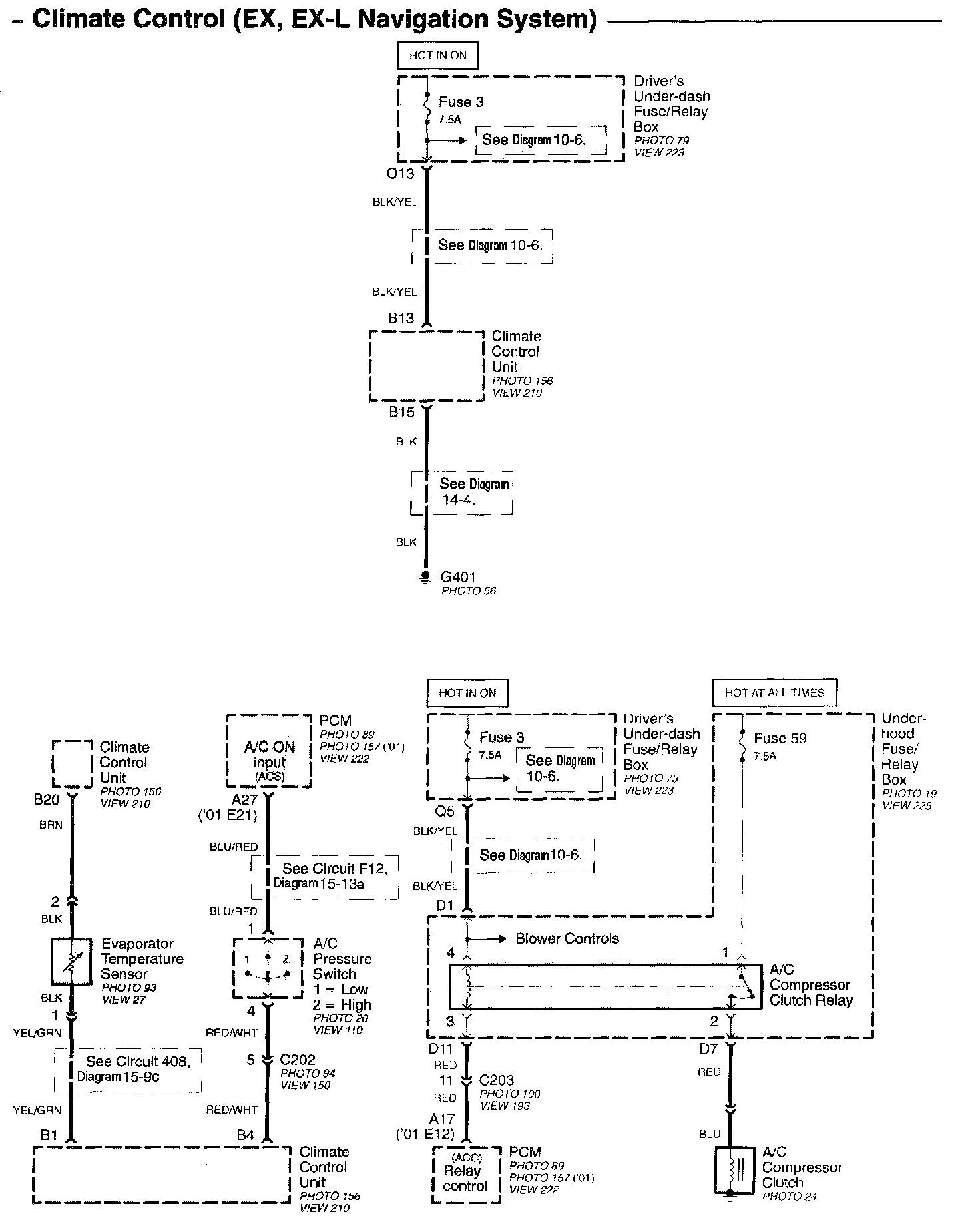

Diagram 60-16 (EX, EX-L Navigation System):
