Odyssey V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
Diagram Set 60
>>
60-17 to 60-19
60-17 to 60-19

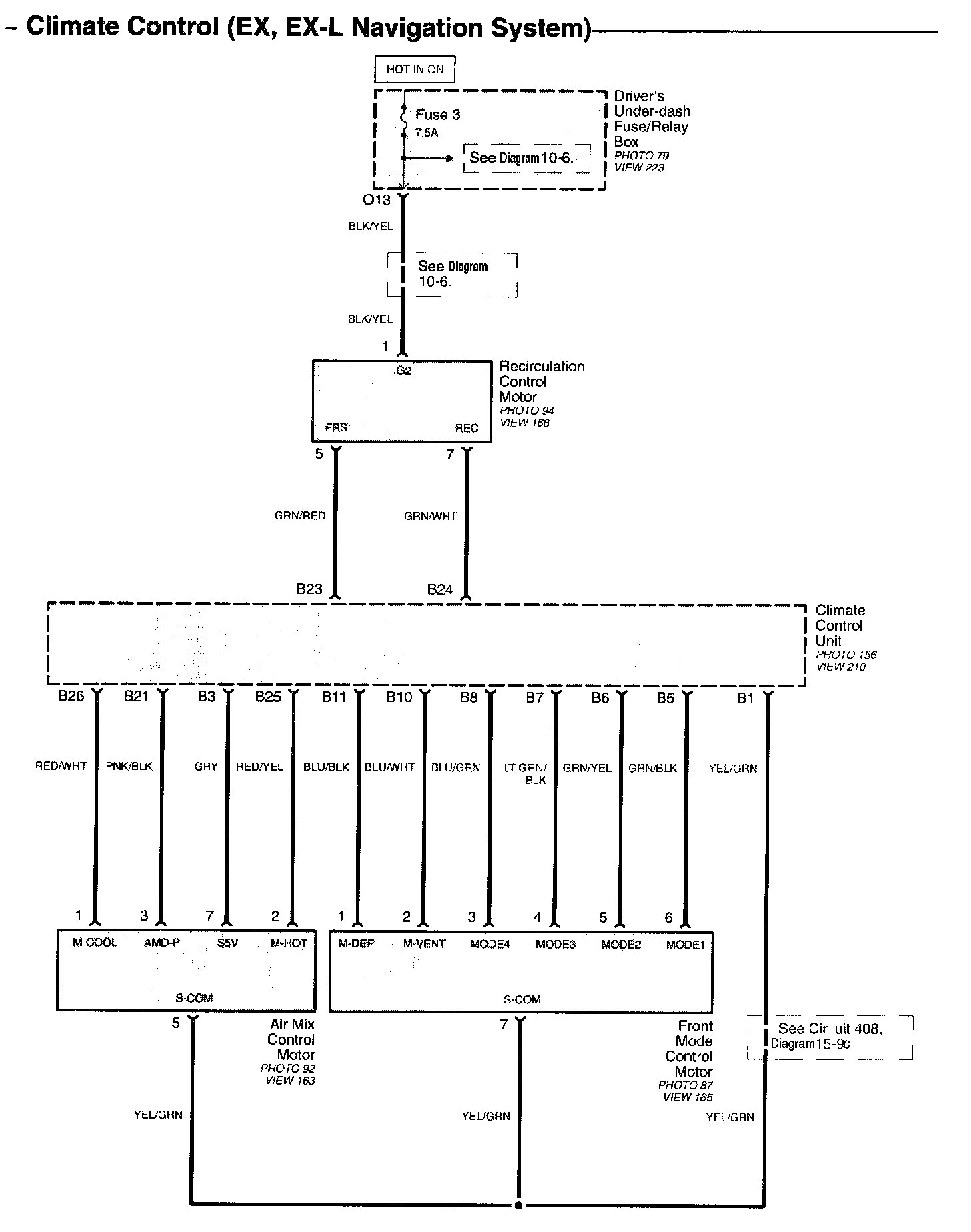

Diagram 60-17 (EX, EX-L Navigation System):

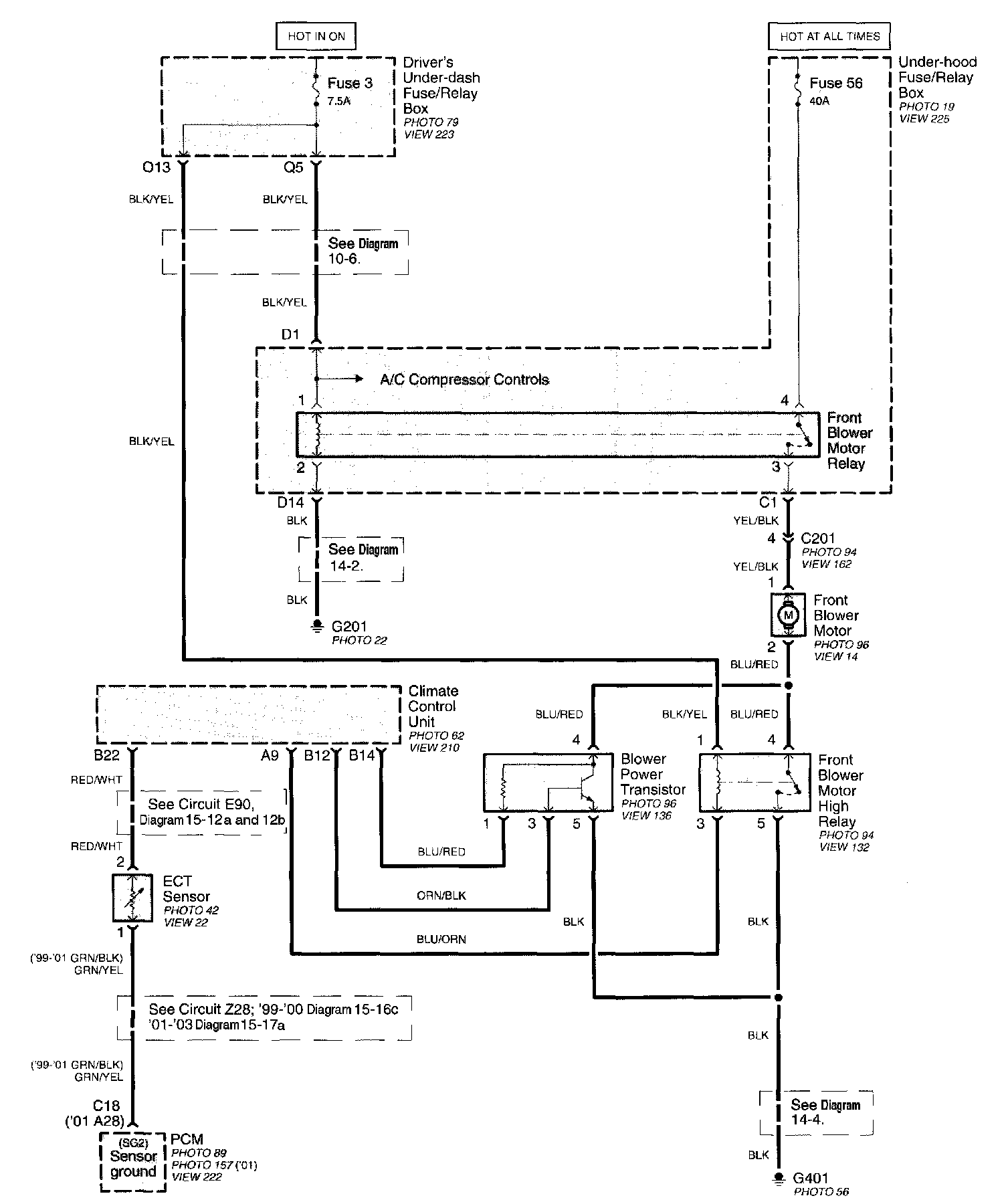

Diagram 60-18 (EX, EX-L Navigation System):

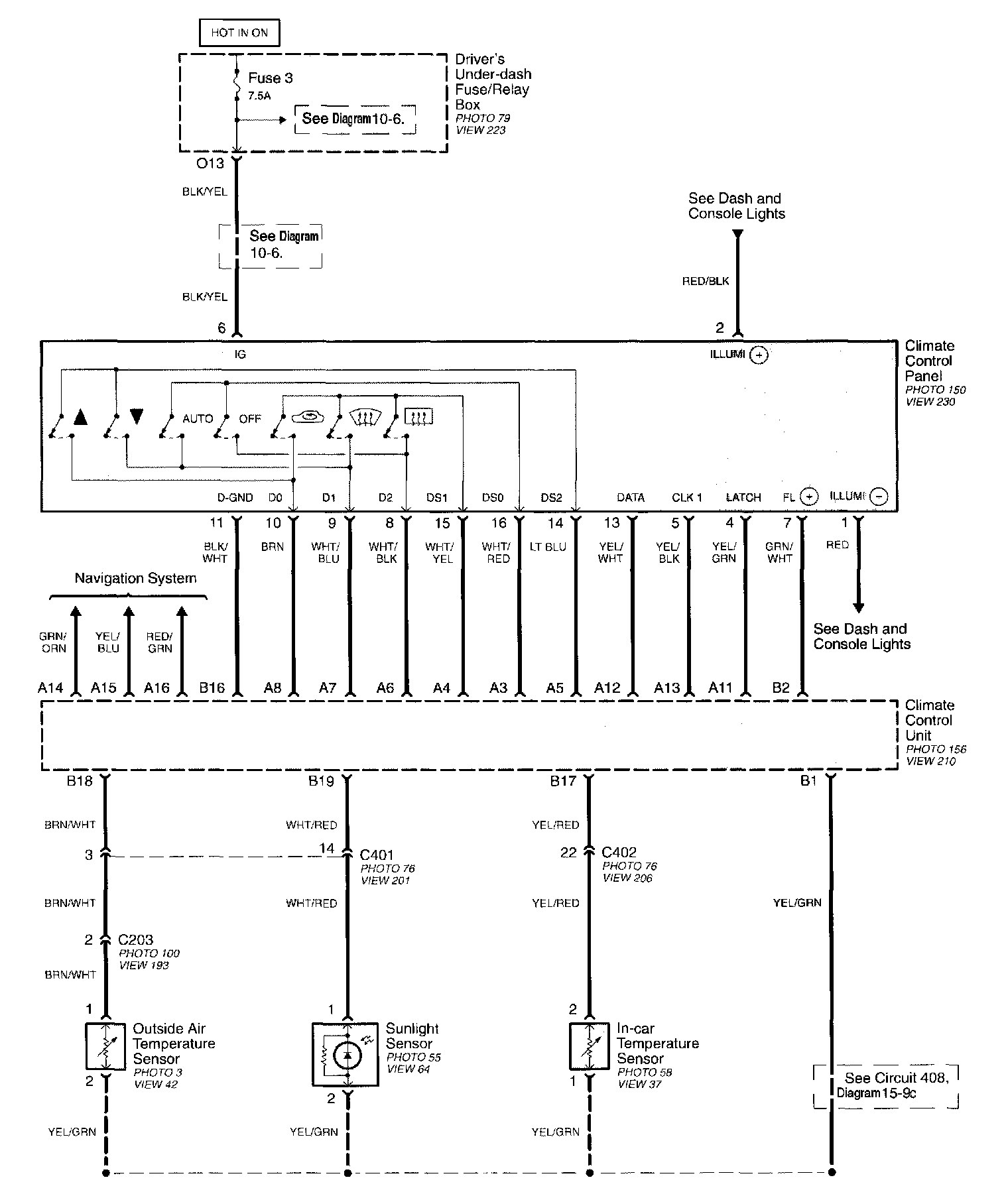

Diagram 60-19 (EX, EX-L Navigation System):
