10-13 to 10-17
10-13 to 10-17

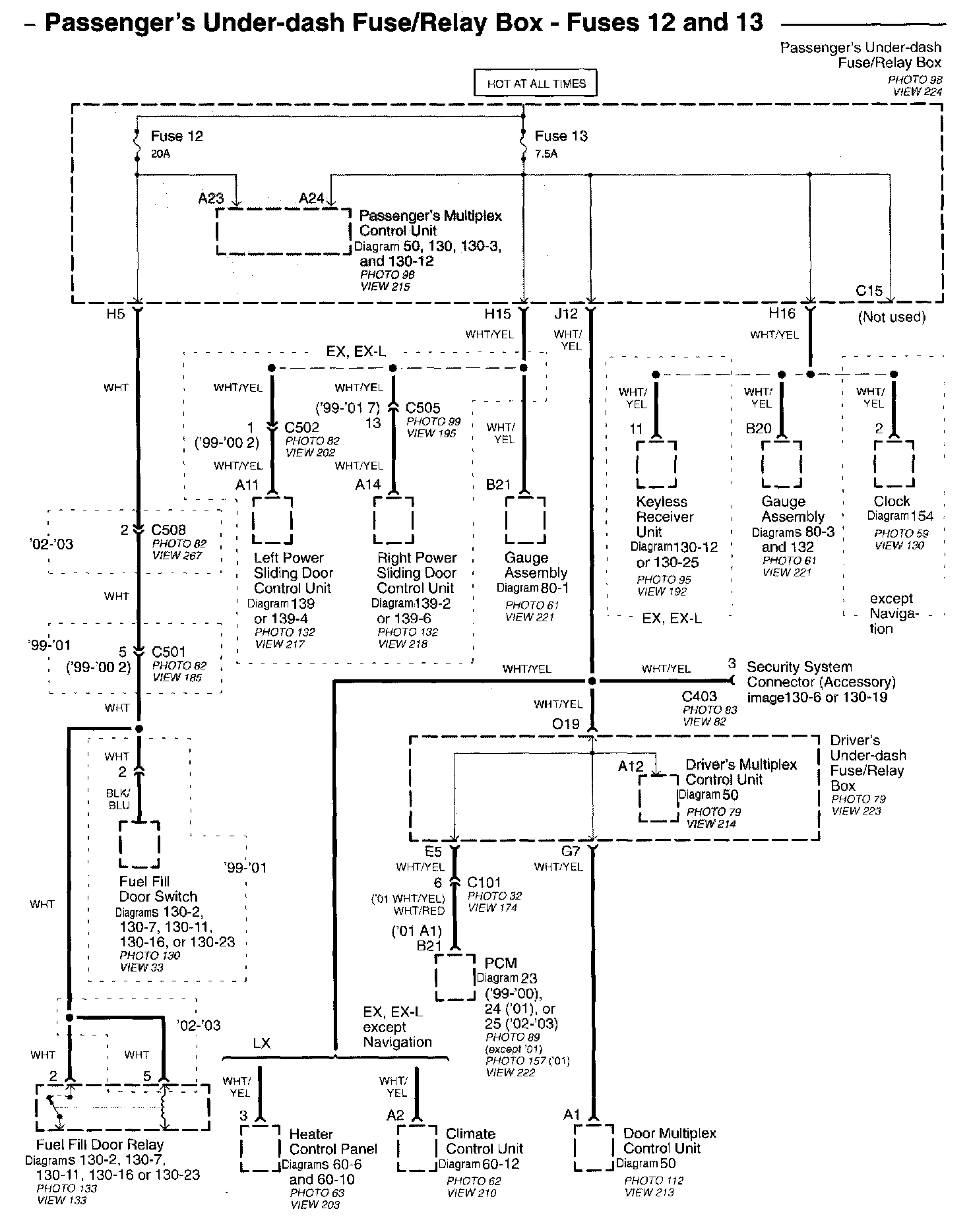

Diagram 10-13:
Diagram 10-14:
Diagram 10-15:
Diagram 10-16:
Diagram 10-17:
