10-9A to 10-12

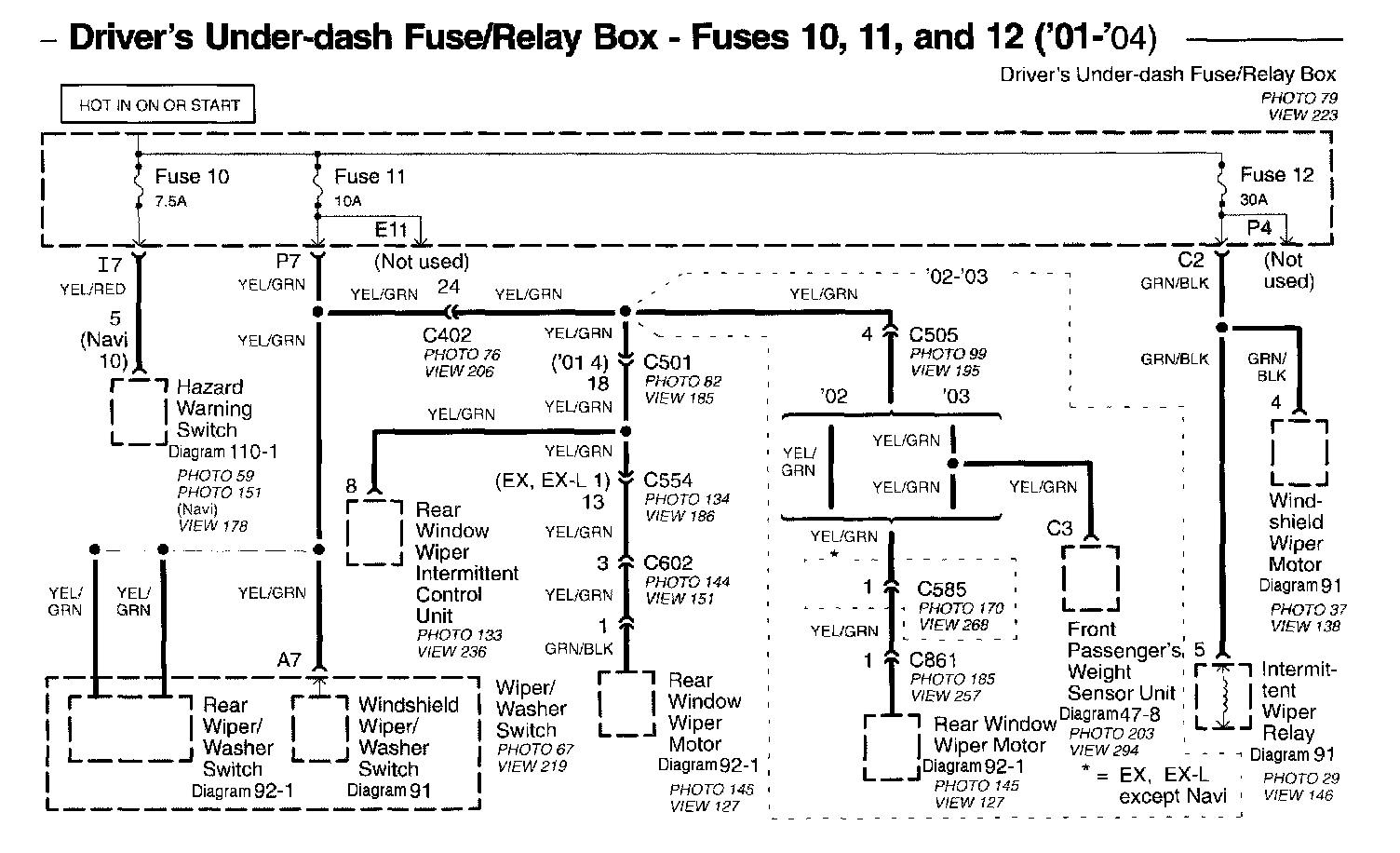

Diagram 10-9 (Fuses 10, 11, And 12) (01-04):



Diagram 10-10:



Diagram 10-11:



Diagram 10-12:
