Driver's Seat Wire Harness (Ex, Ex-L) (SRS Branch)
Driver's Seat Wire Harness (Ex, Ex-L) (SRS Branch)

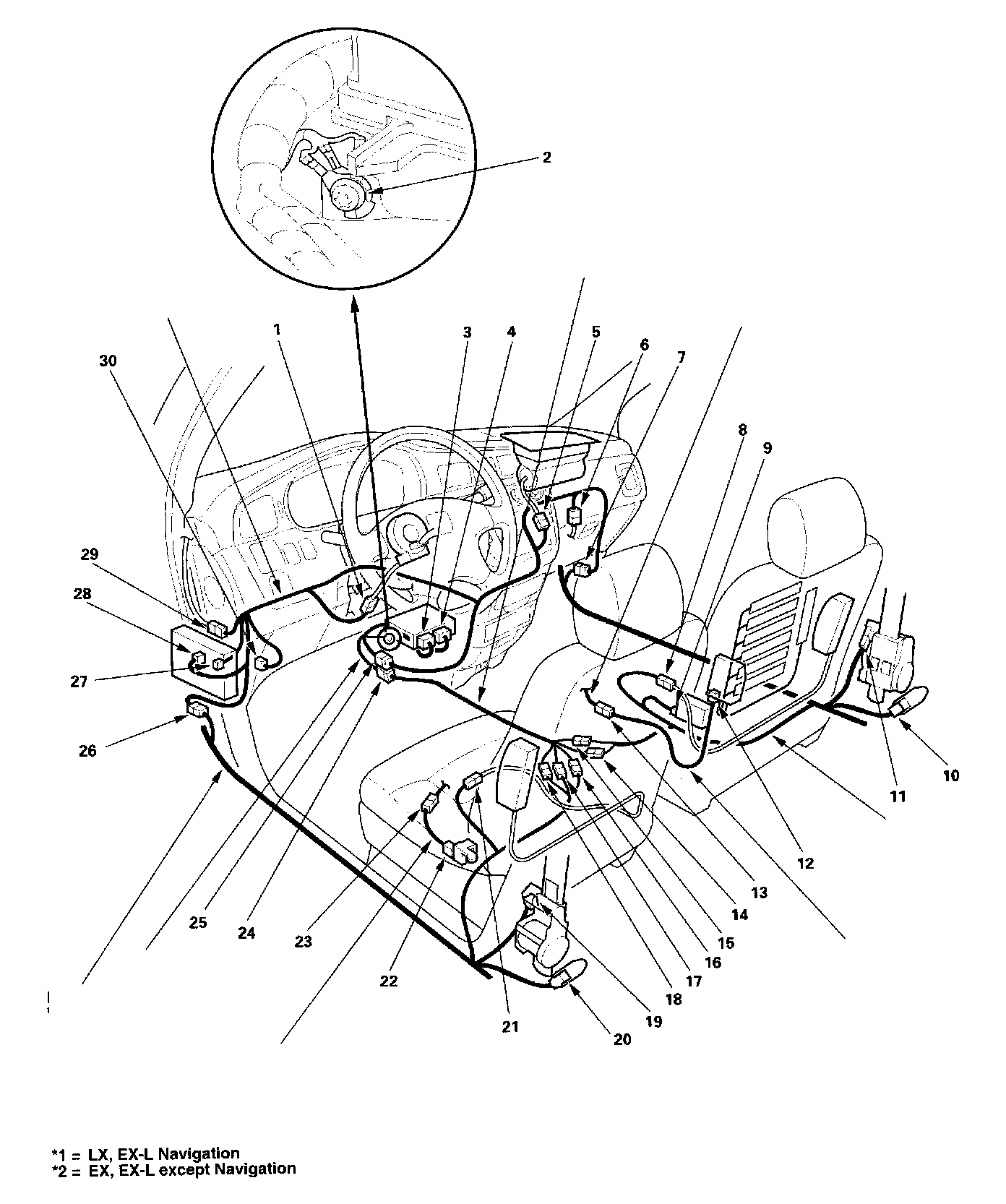

Harness Location View:
Driver's Seat Wire Harness (EX, EX-L) (SRS Branch) (03):
