Connector Disconnection / Connection

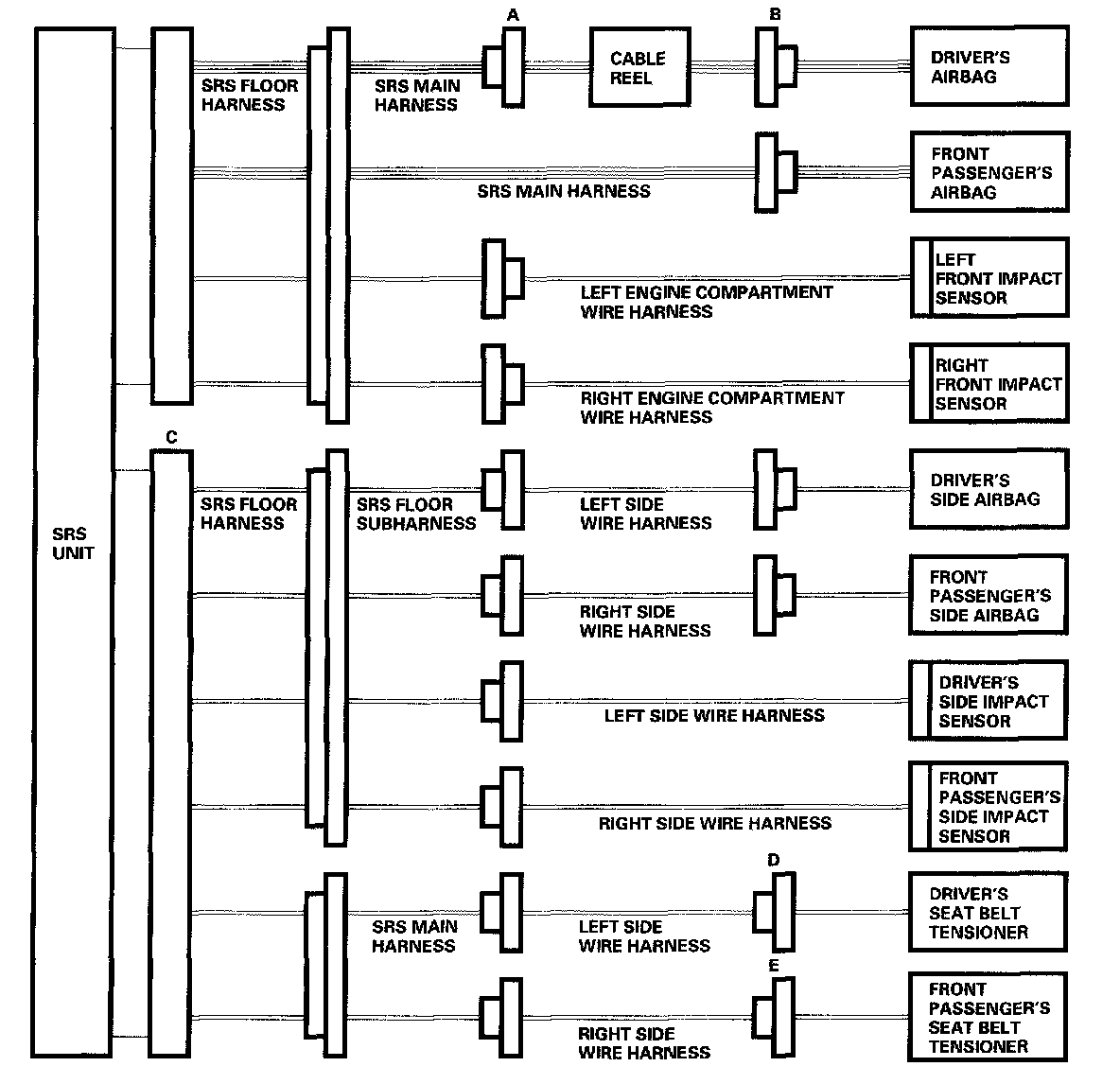

Disconnecting System Connectors




Turn the ignition switch OFF, and disconnect the negative cable from the battery, and wait at least 3 minutes before beginning the following procedures.
- Before disconnecting the left side wire harness 2P connector (F), disconnect the driver's seat belt tensioner 2P connector (G).
- Before disconnecting the right side wire harness 2P connector (H), disconnect the front passenger's seat belt tensioner 2P connector (I).

1. Turn the ignition switch OFF. Disconnect the battery negative cable, and wait at least 3 minutes

Driver's Airbag




2. Remove the access panel from the steering wheel, then disconnect the driver's airbag 4P connector (A) from the cable reel 4P connector (B)

Front Passenger's Airbag




3. Remove the glove box, then disconnect the front passenger's airbag 4P connector (A) from the SRS main harness 4P connector (B).

Side Airbag




4. Disconnect both side airbag 2P connectors (A) from the side wire harness 2P connectors (B).

Seat Belt Tensioner




5. Disconnect both seat belt tensioner 2P connectors (A) from the side wire harness 2P connector (B).

SRS Unit




6. Disconnect SRS unit connector A, and/or SRS unit connector B from the SRS unit.
