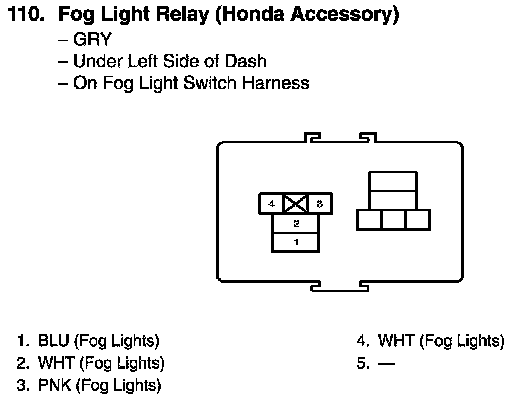

View 110 Fog Light Relay Connector View (Honda Accessory)
View 110 Fog Light Relay Connector View (Honda Accessory)
