Home >> Honda Truck >> 2009 >> CR-V 4WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 116 Front Passenger's Seat Belt Buckle Switch Connector View

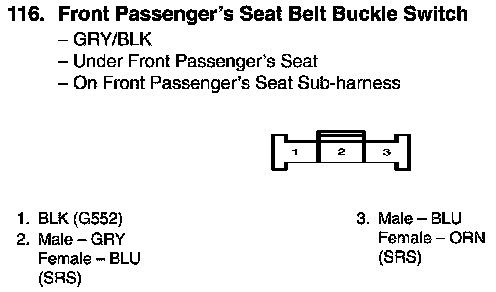

View 116 Front Passenger's Seat Belt Buckle Switch Connector View
