Honda Truck
>>
2009
>>
CR-V 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

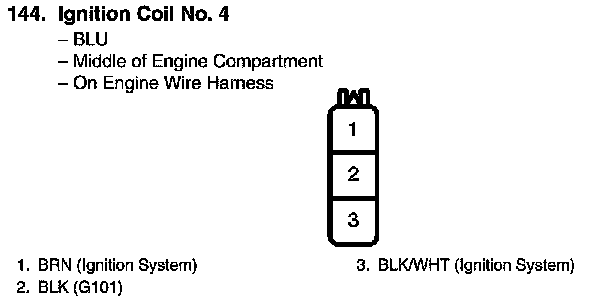

View 144 Ignition Coil No. 4 Connector View
View 144 Ignition Coil No. 4 Connector View
