Honda Truck
>>
2009
>>
CR-V 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

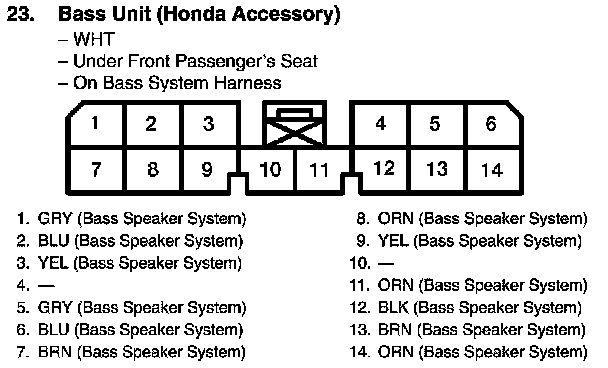

View 23 Bass Unit Connector View (Honda Accessory)
View 23 Bass Unit Connector View (Honda Accessory)
