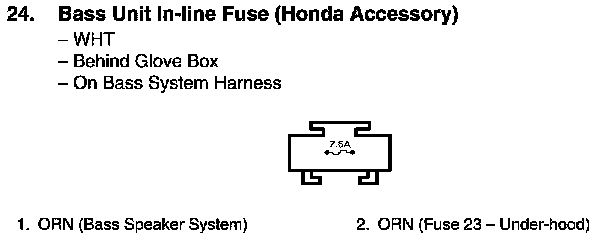

View 24 Bass Unit In-line Fuse Connector View (Honda Accessory)
View 24 Bass Unit In-line Fuse Connector View (Honda Accessory)
