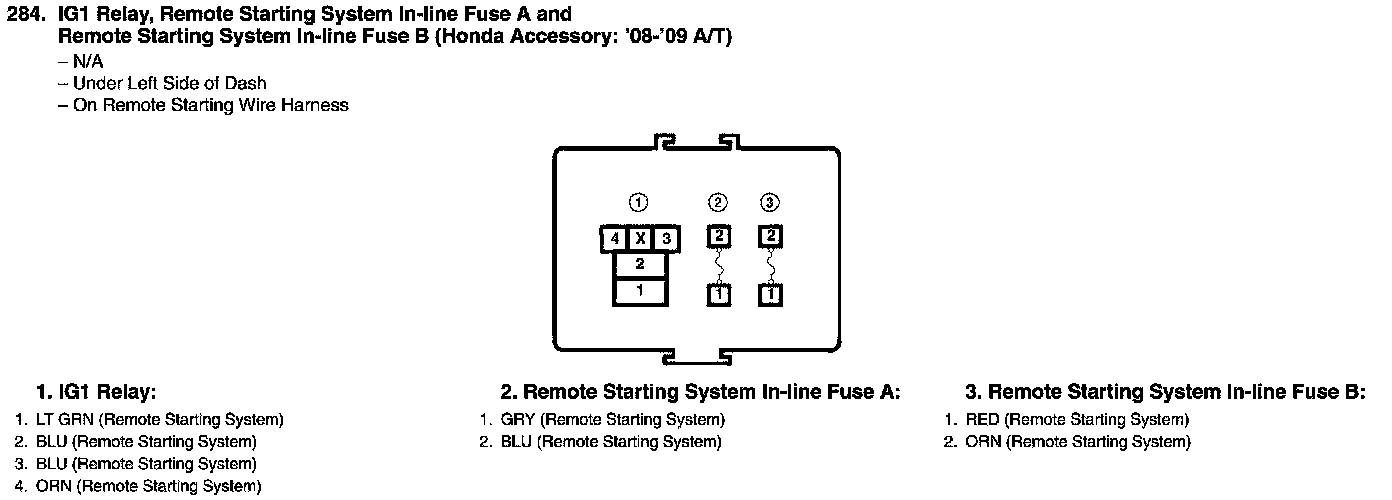

View 284 IG1 Relay, Remote Starting System In-line Fuse A And Remote Starting System In-line Fuse B Connector View
View 284 IG1 Relay, Remote Starting System In-line Fuse A And Remote Starting System In-line Fuse B Connector View
