Home >> Honda Truck >> 2009 >> CR-V 4WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 9 View 9 A/T Clutch Pressure Control Solenoid Valve C Connector View

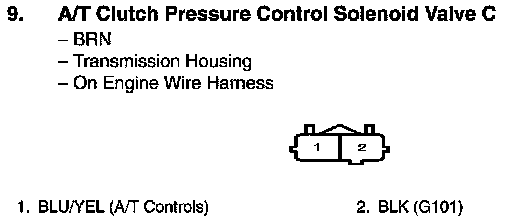

View 9 View 9 A/T Clutch Pressure Control Solenoid Valve C Connector View
