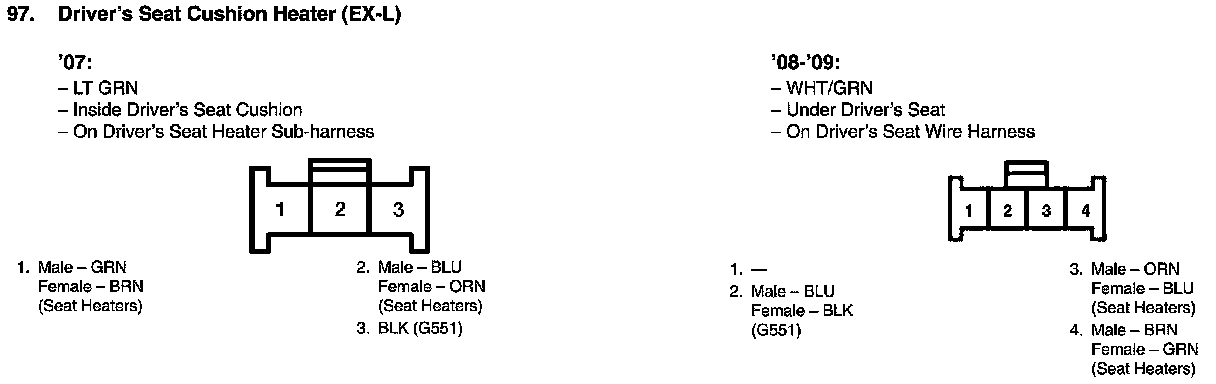

View 97 Driver's Seat Cushion Heater Connector View
View 97 Driver's Seat Cushion Heater Connector View
