Fuse/Relay Box Connector Locations
Fuse/Relay Box Connector Locations

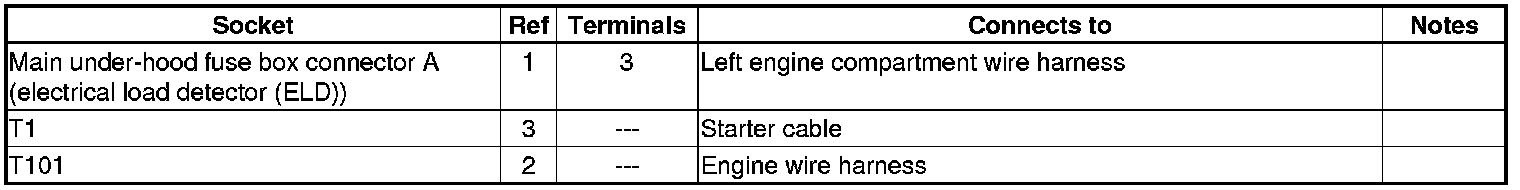

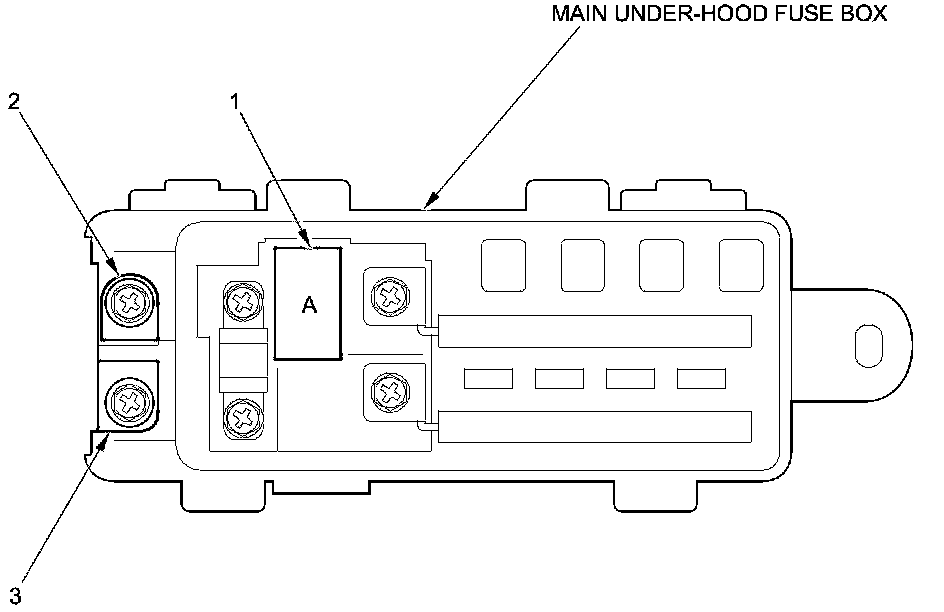

Main Under-Hood Fuse Box

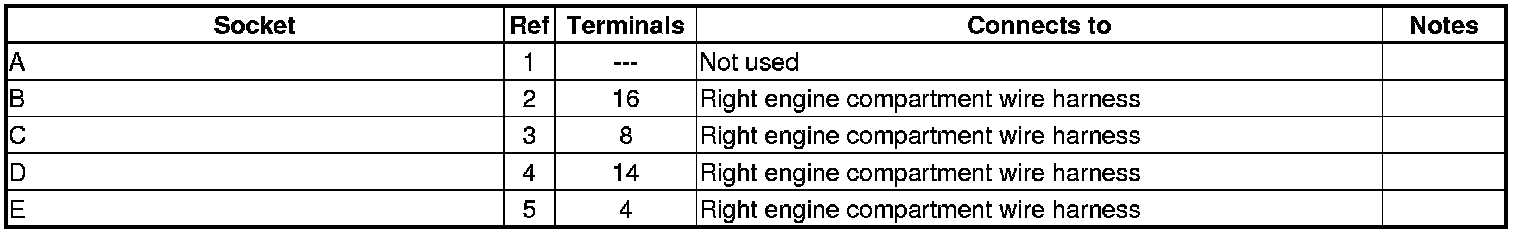

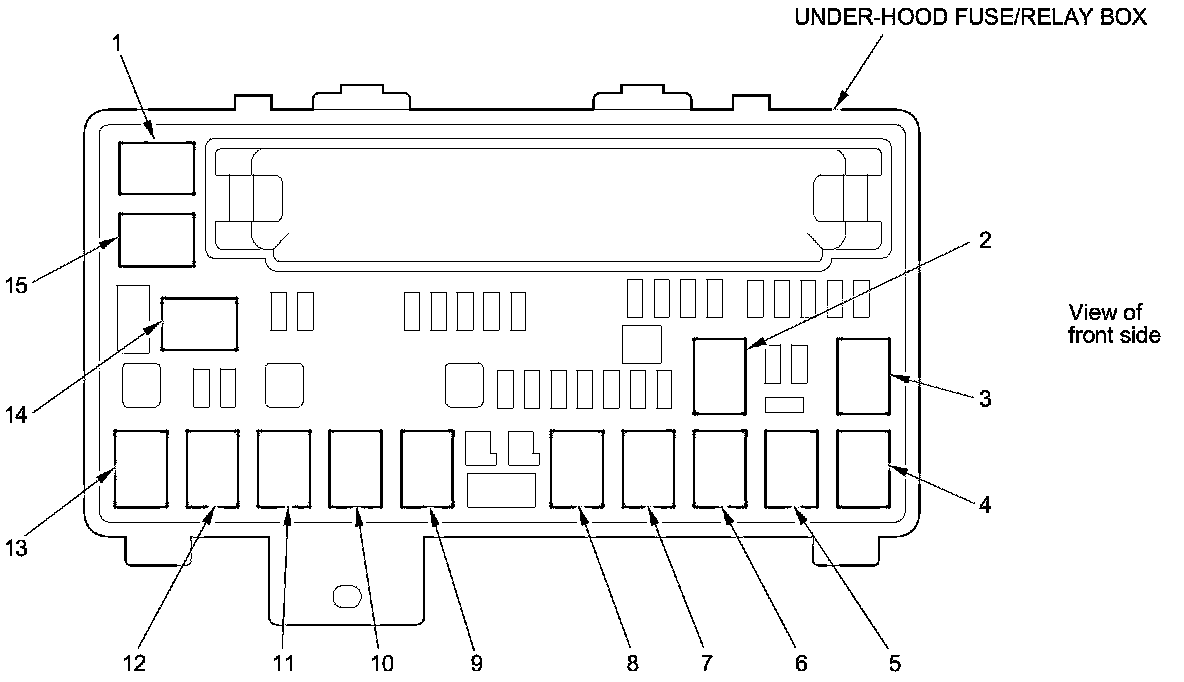

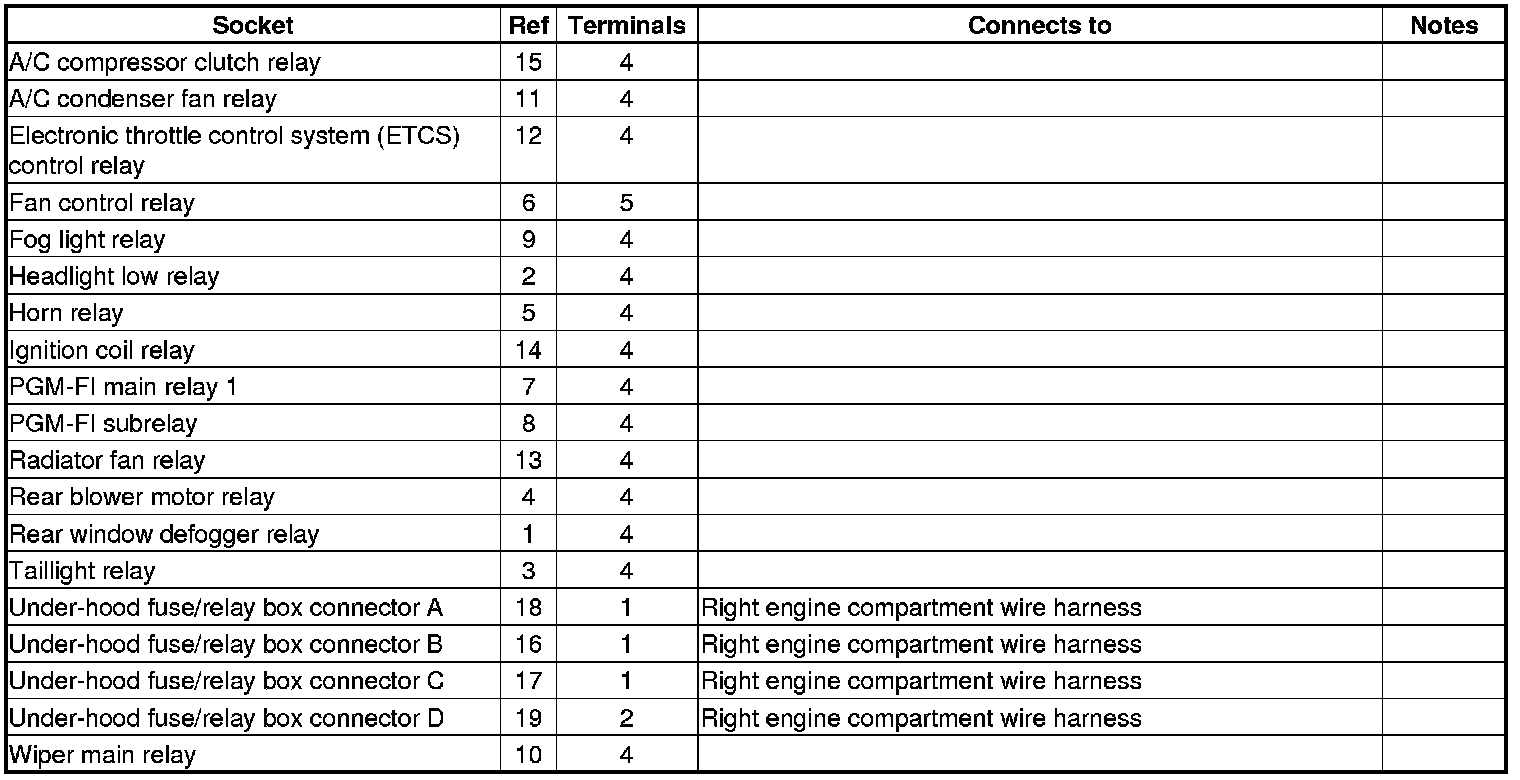

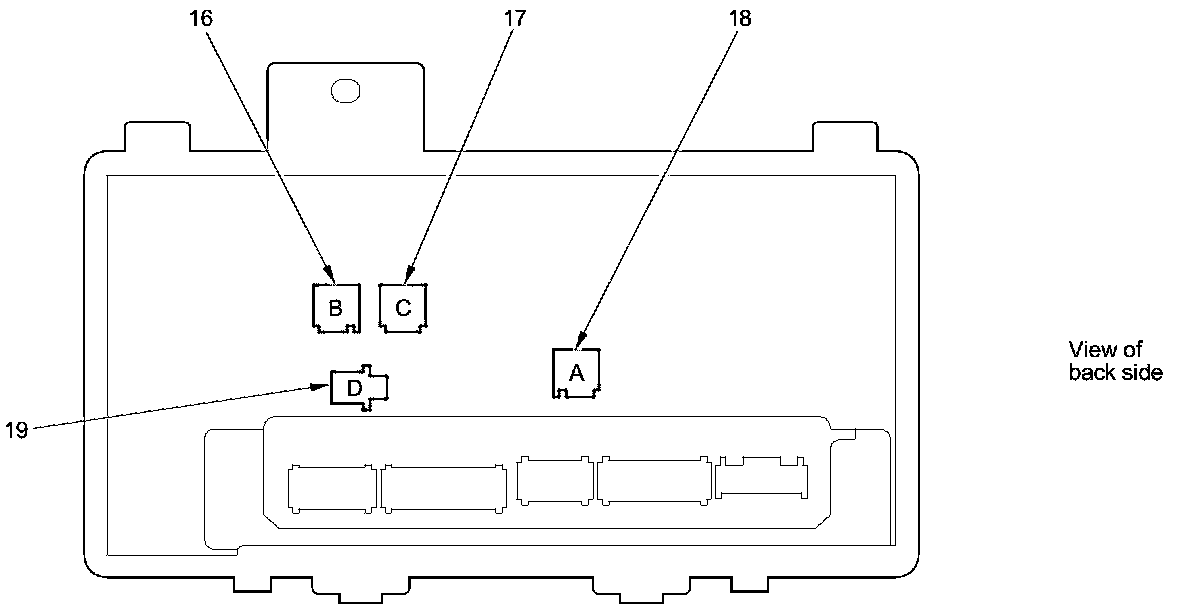

Under-Hood Fuse/Relay Box

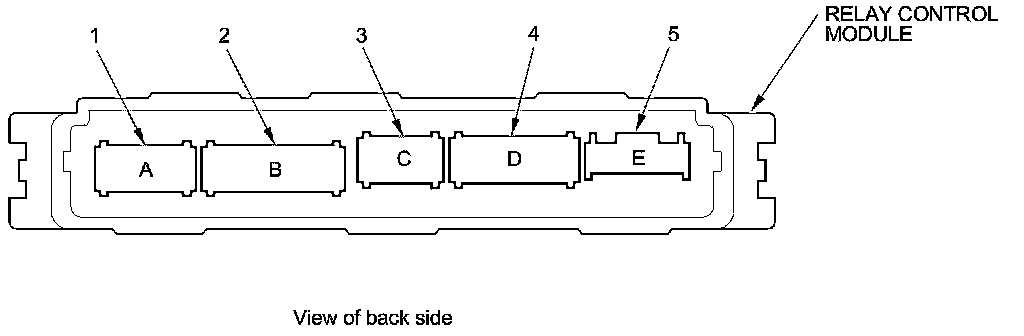

Under-hood Fuse/Relay Box (Relay Control Module Part)

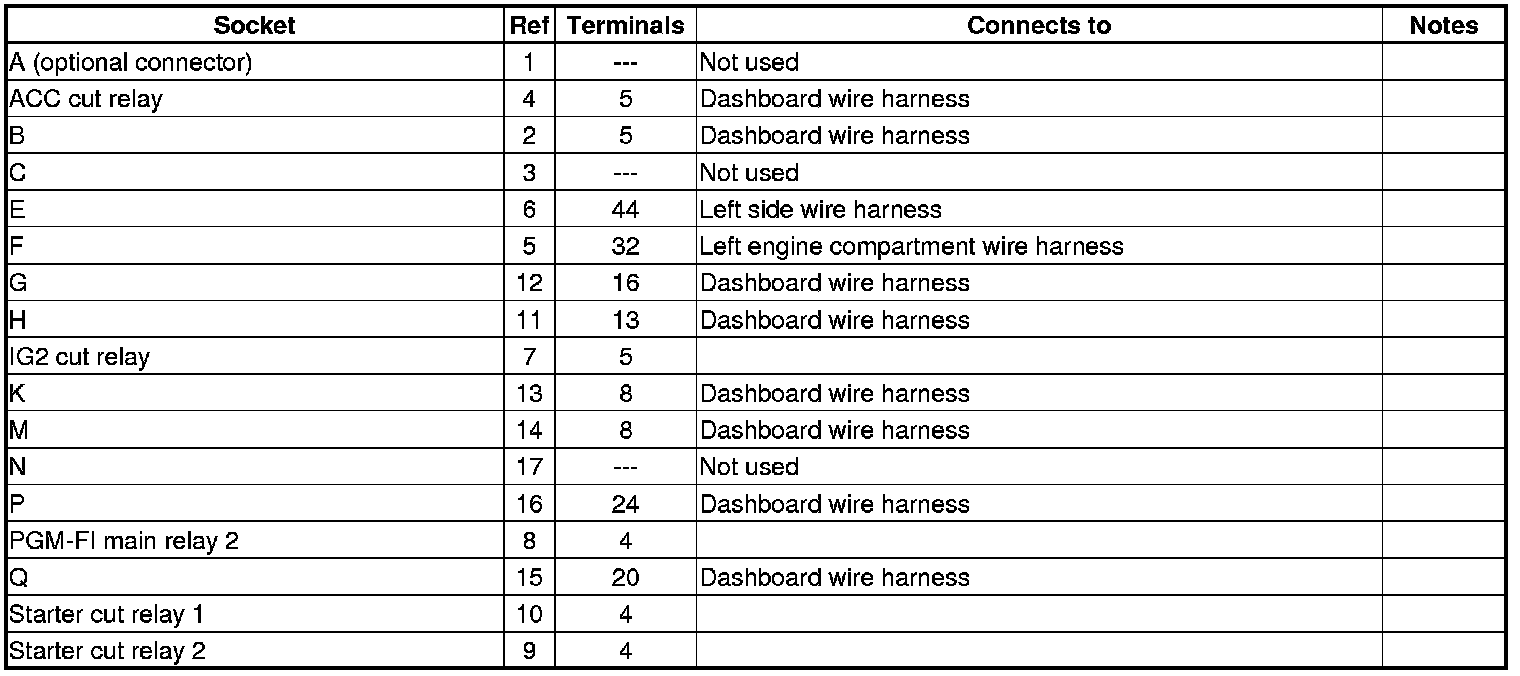

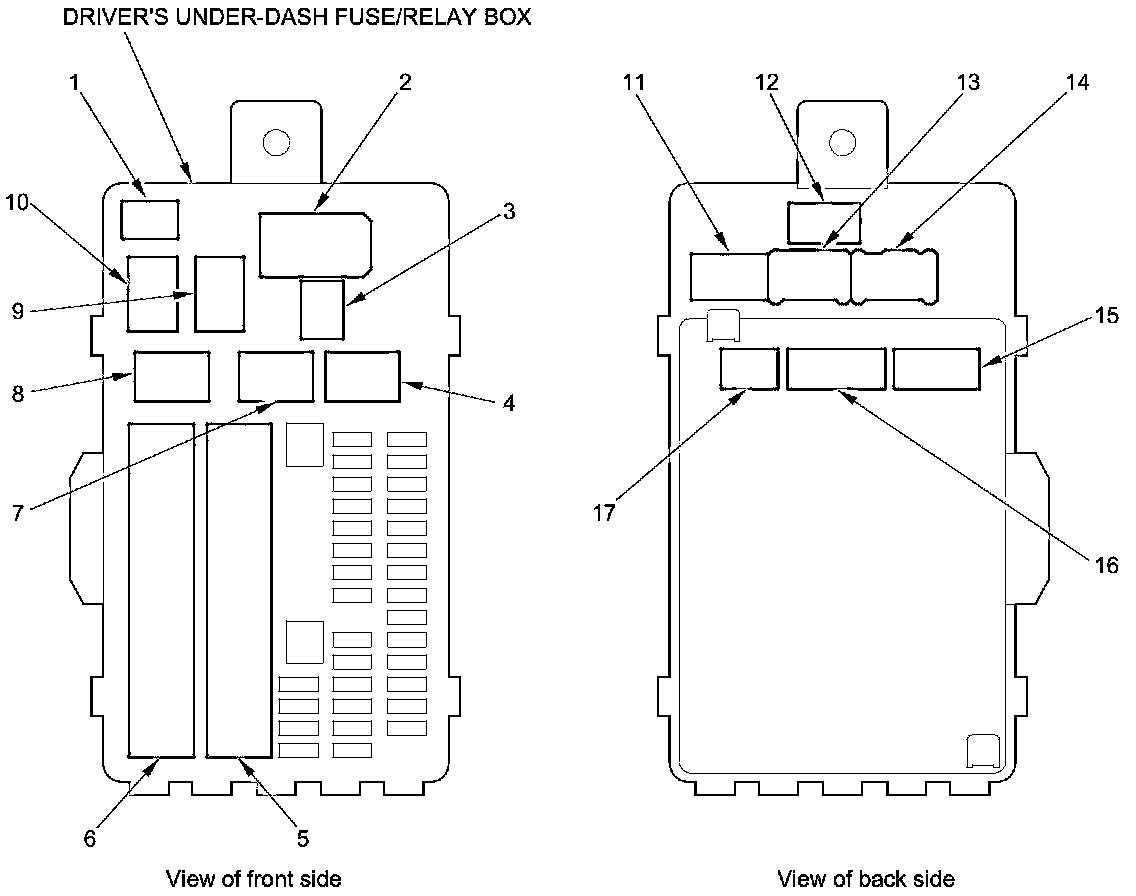

Driver's Under-Dash Fuse/Relay Box

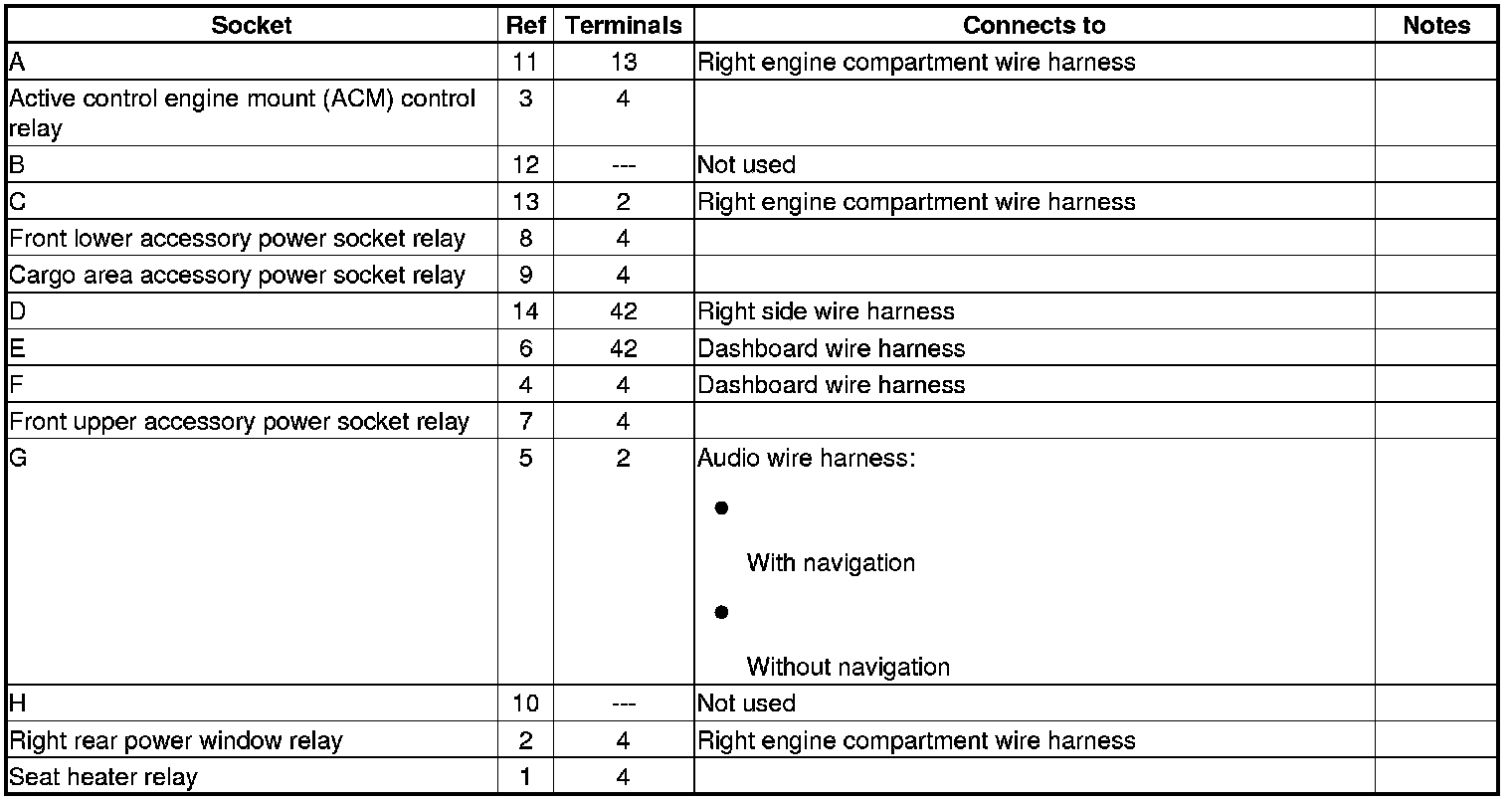

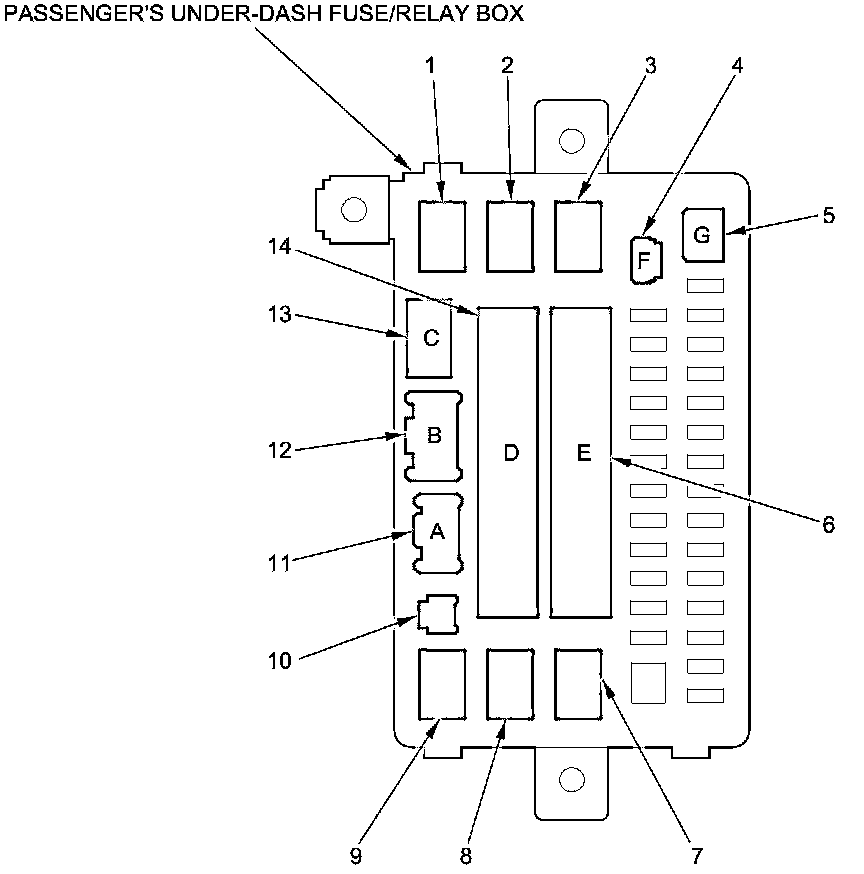

Passenger's Under-Dash Fuse/Relay Box

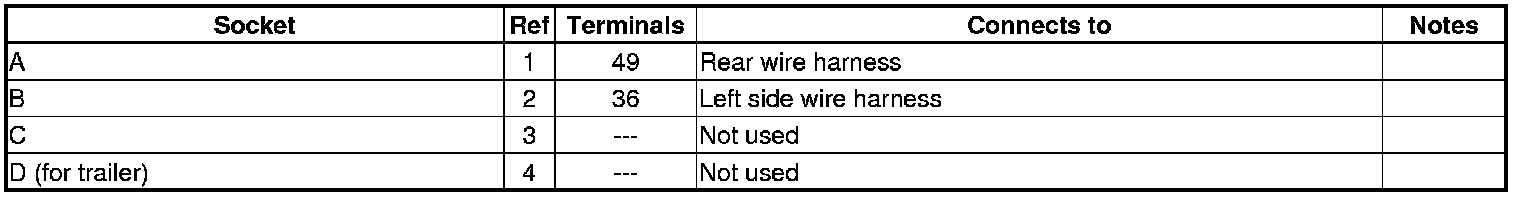

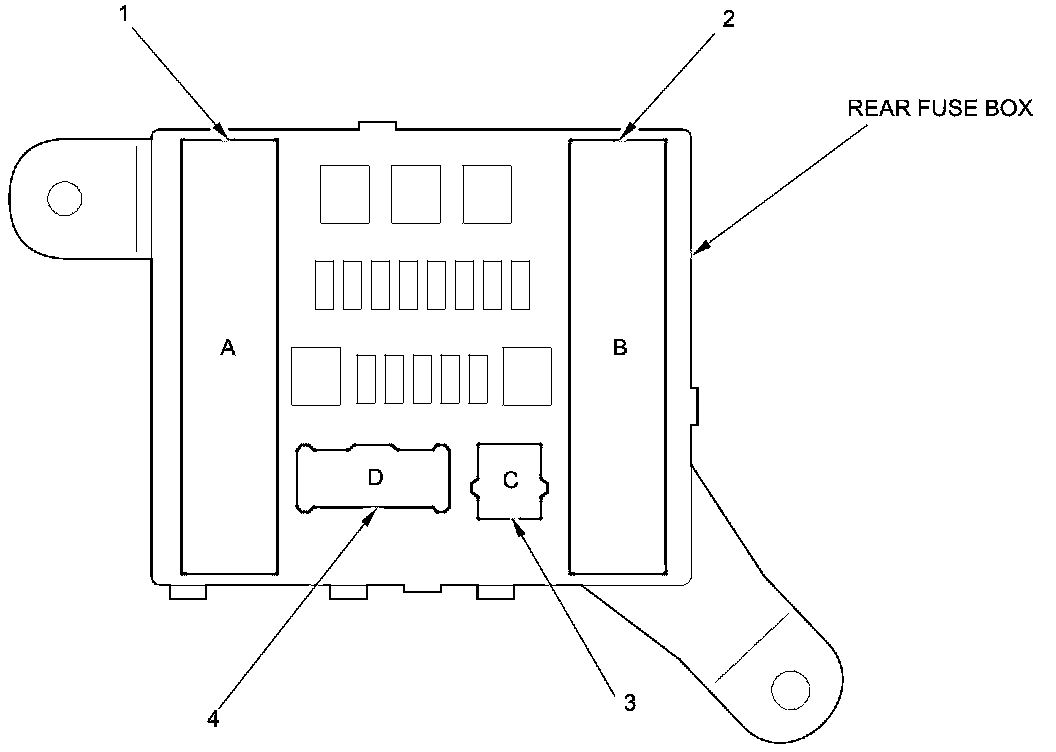

Rear Fuse Box
