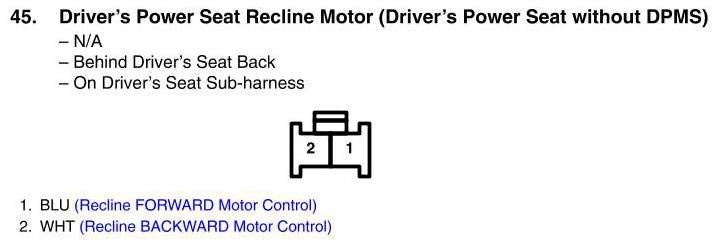

View 45 - Driver's Power Seat Recline Motor Connector View (Driver's Power Seat Without DPMS)
View 45 - Driver's Power Seat Recline Motor Connector View (Driver's Power Seat Without DPMS)
