Charging System
Charging System

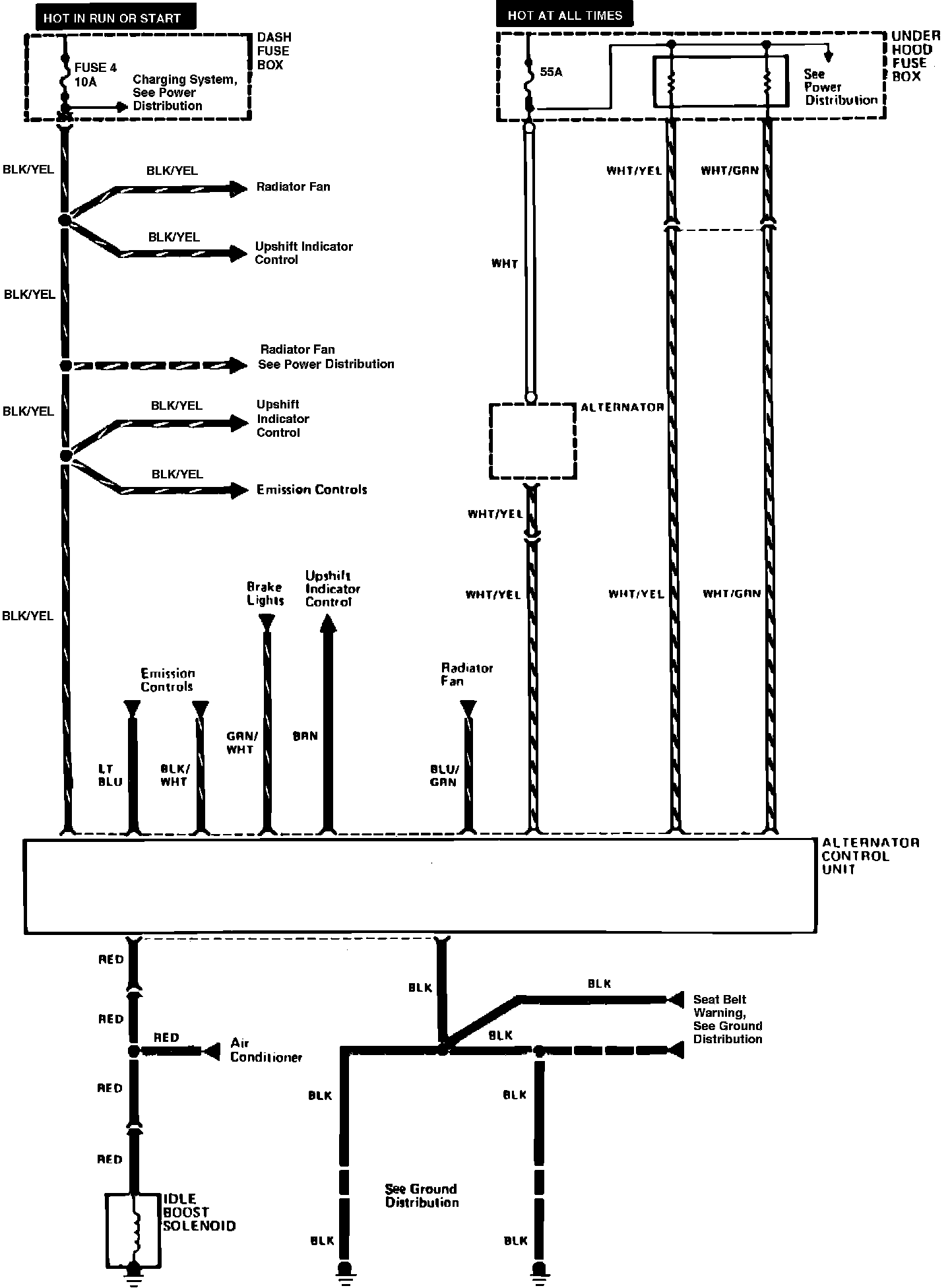

Fig. 65 Alternator Control Wiring Circuit. CRX W/1300 Engine:

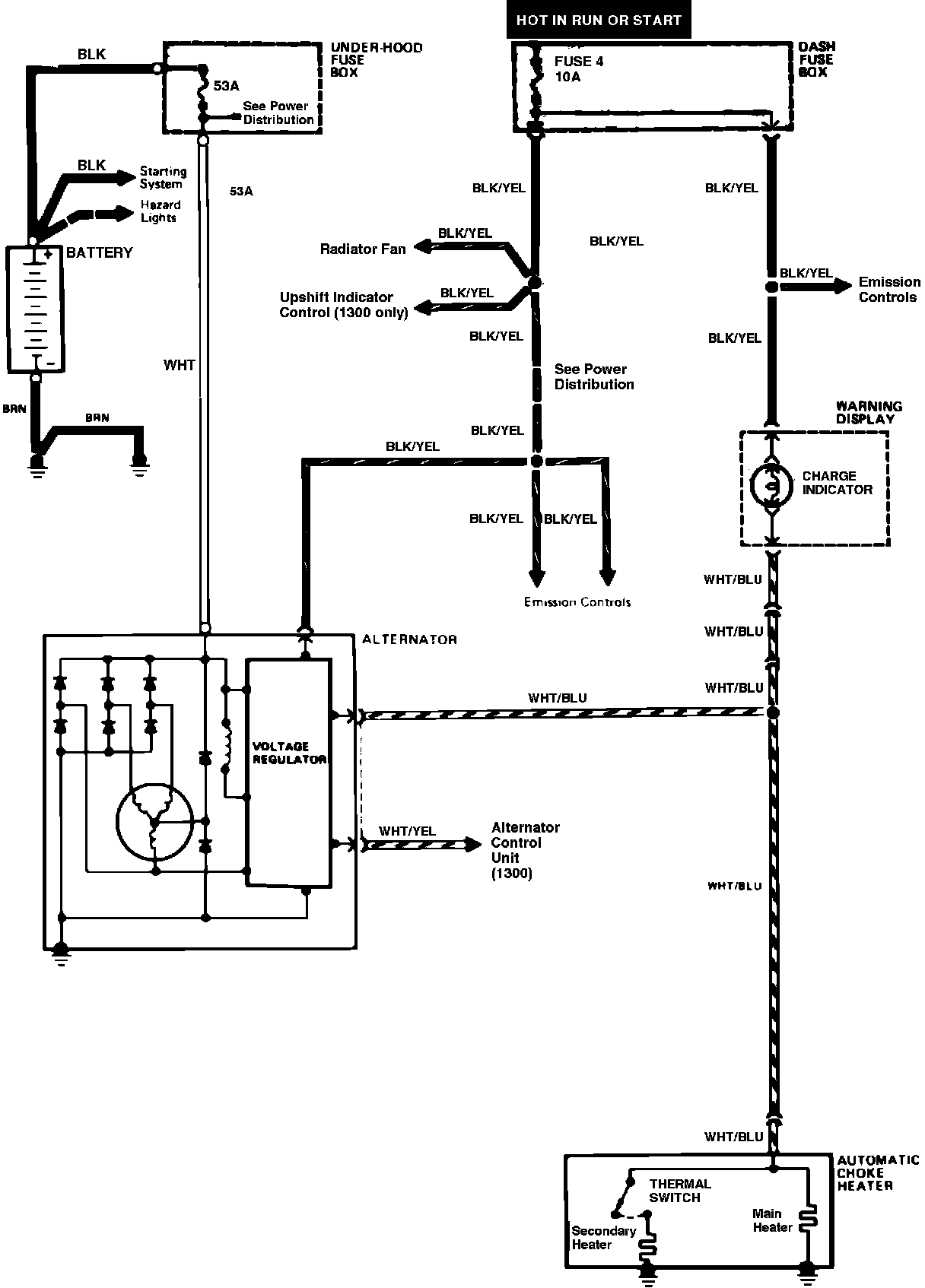

Fig. 70 Charging System & Choke Heater Wiring Circuit. CRX:
