Trunk / Liftgate Latch

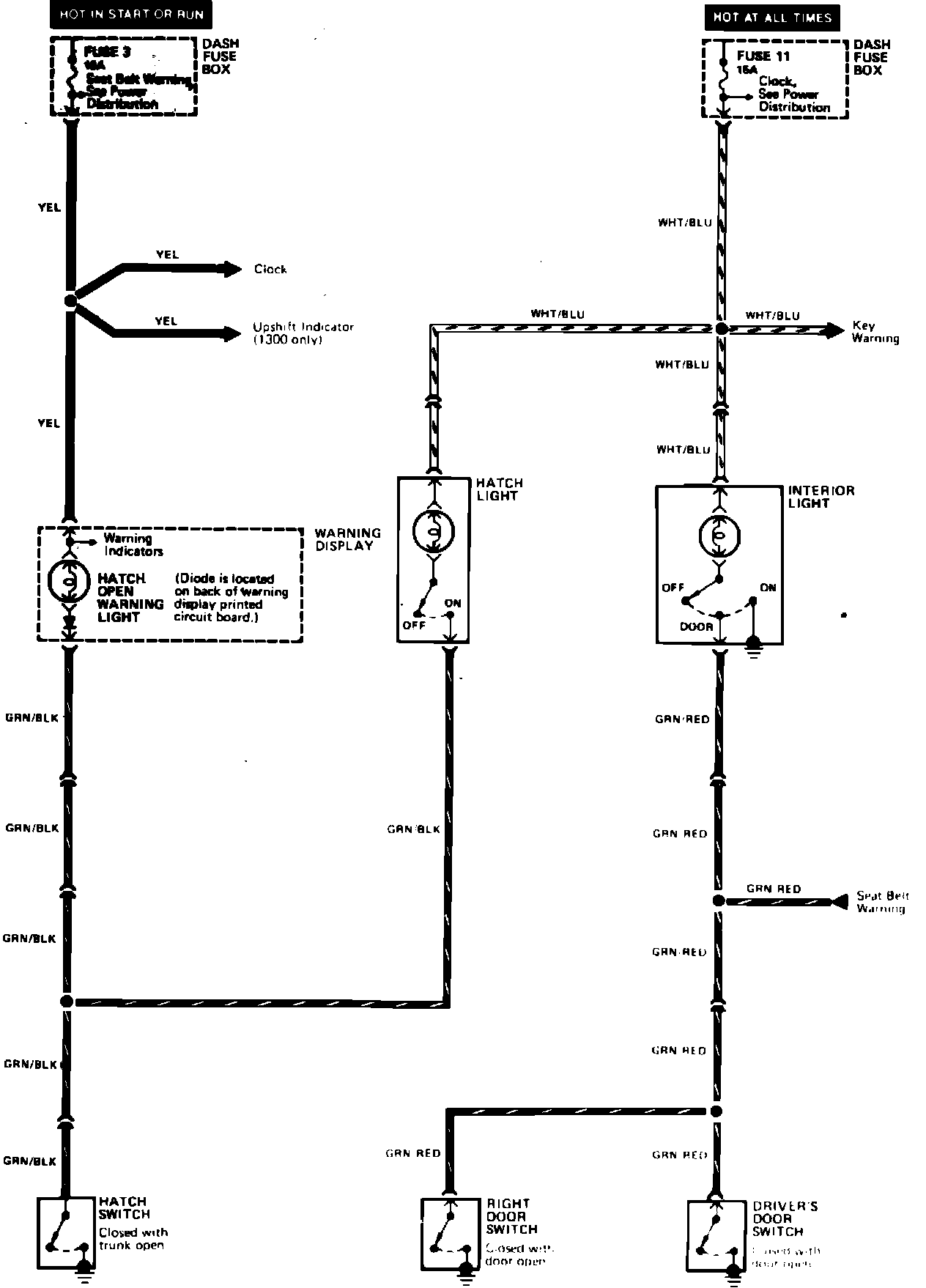

Fig. 80 Hatch Light, Hatch-Open Warning & Interior Light Wiring Circuit. CRX:
