Electrical Diagrams

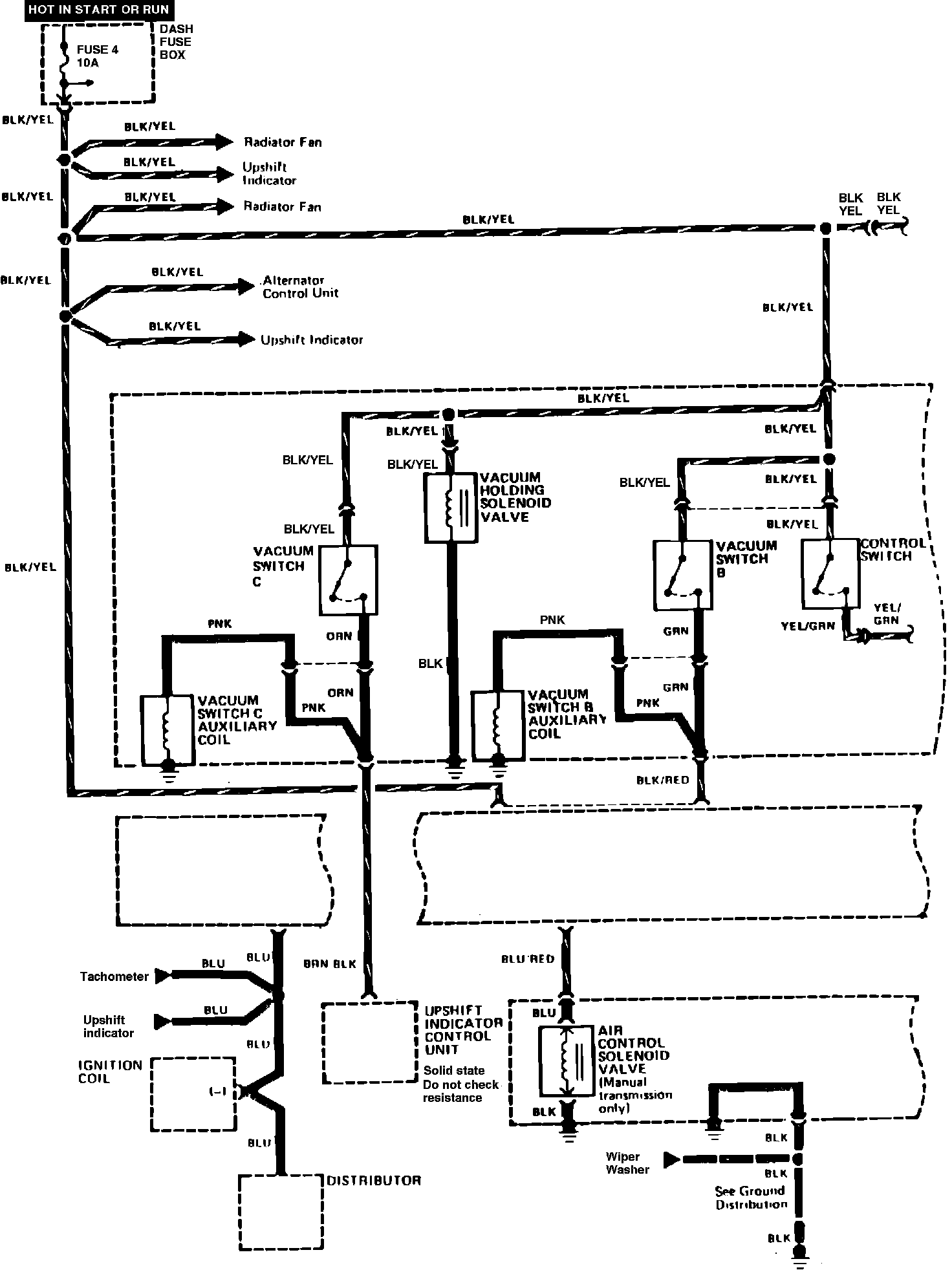

Fig. 76a Emission Control Wiring Circuit (Part 1 of 4). CRX W/1300 Engine:

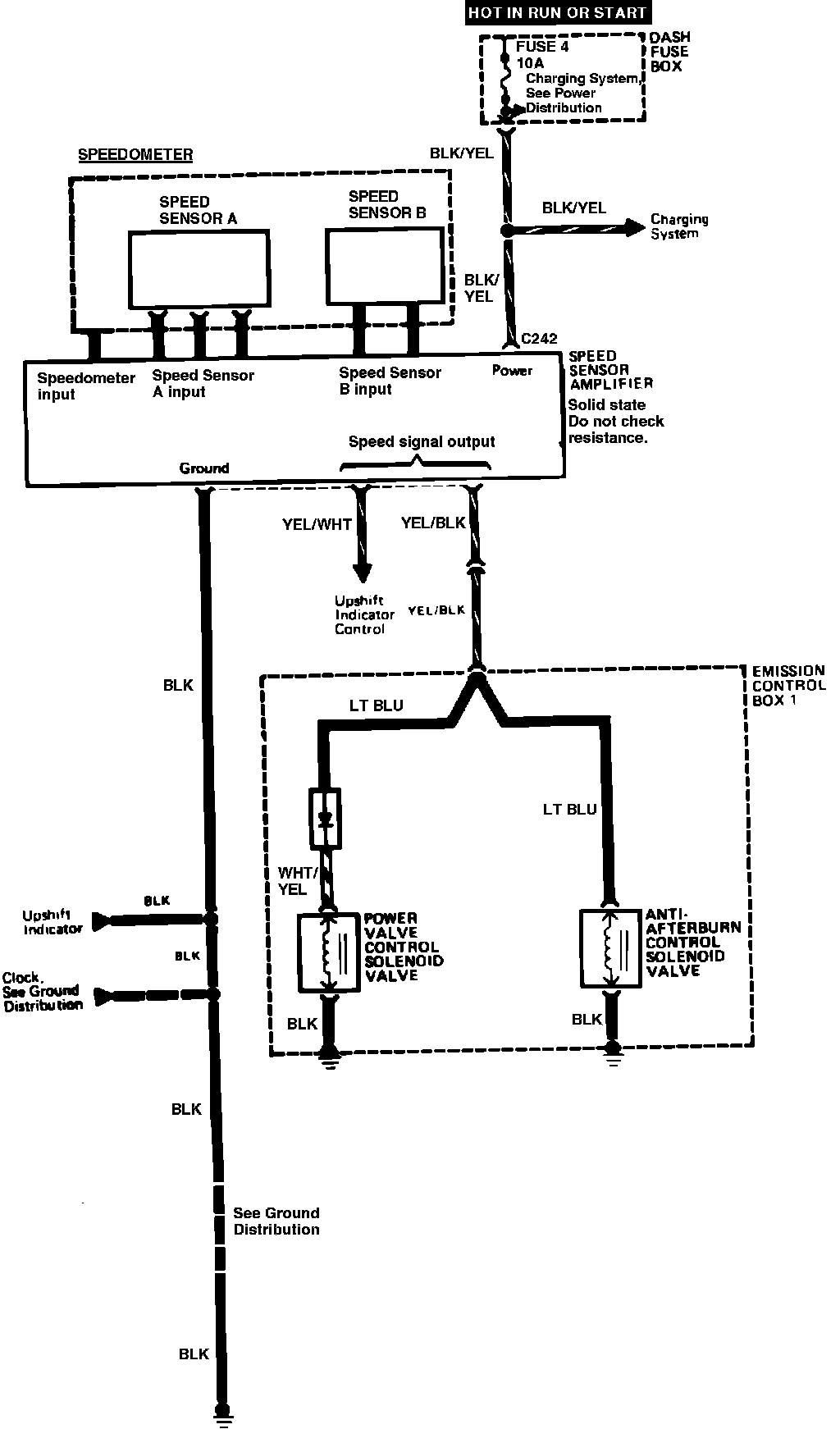

Fig. 76b Emission Control Wiring Circuit (Part 2 of 4). CRX W/1300 Engine:

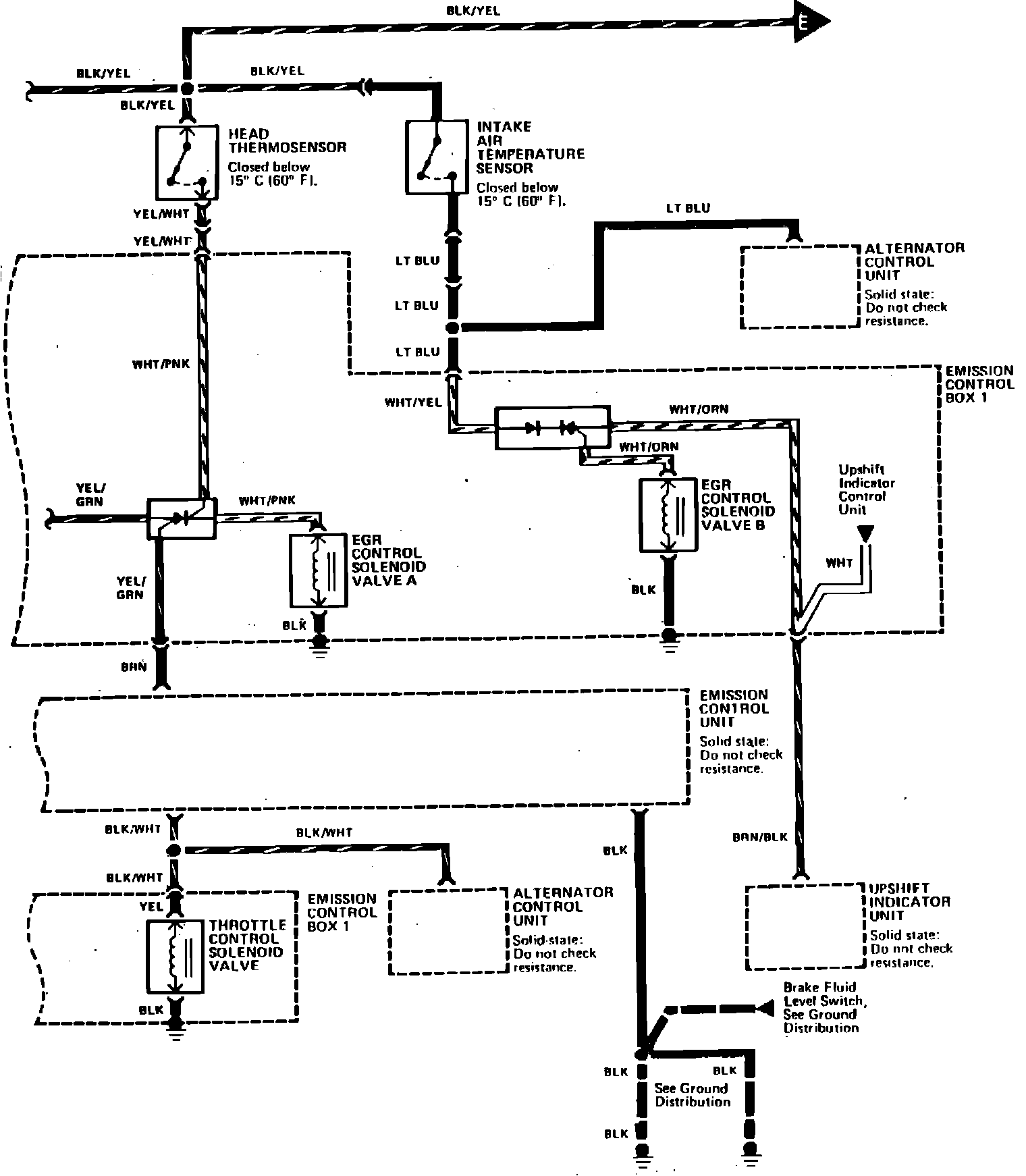

Fig. 76c Emission Control Wiring Circuit (Part 3 of 4). CRX W/1300 Engine:



Fig. 76d Emission Control Wiring Circuit (Part 4 of 4). CRX W/1300 Engine:
