Fuel Injected Engine

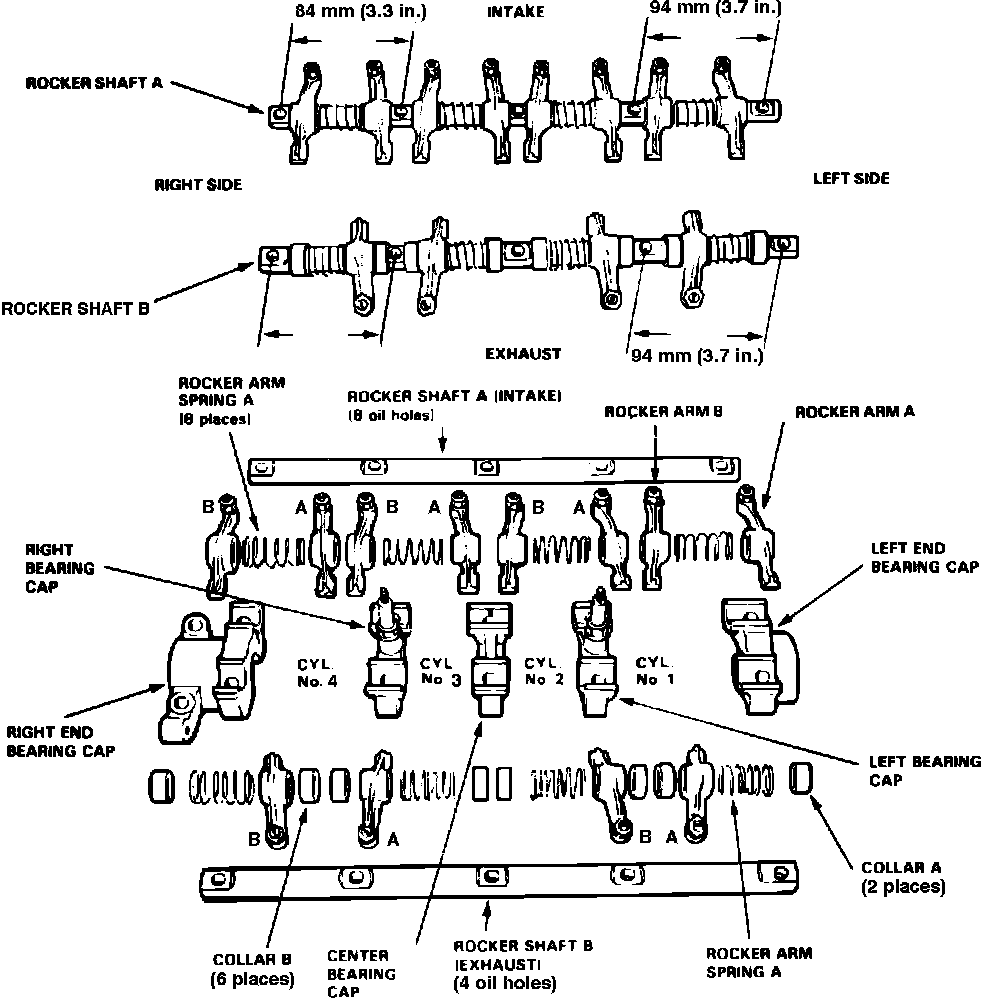

Fig. 14 Rocker arm assembly exploded view. 1985-87 Civic & CRX w/fuel injected engine:
