Diagnostic Trouble Code Descriptions

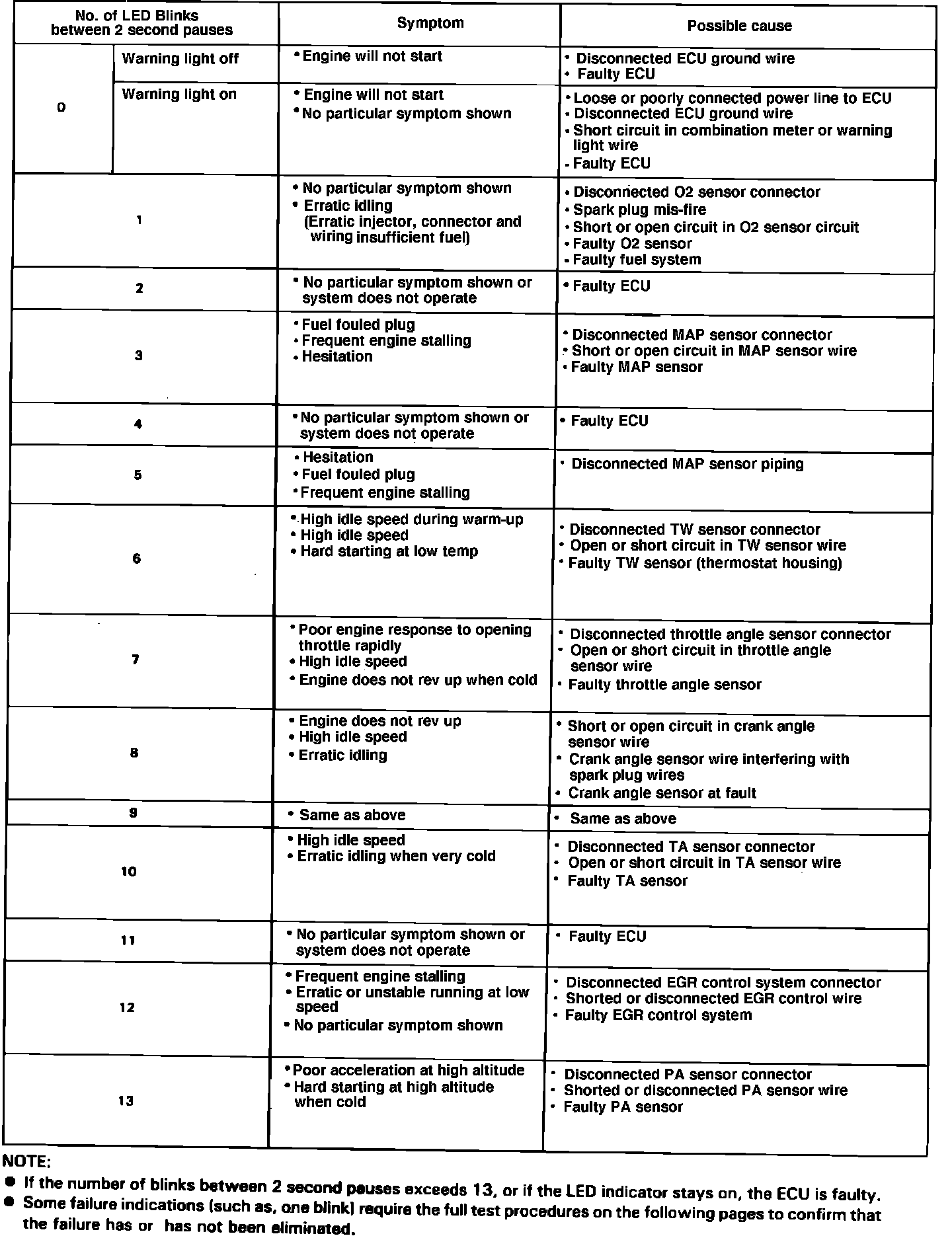

Fig. 48 PGM-FI preliminary self-diagnosis chart:

If problem is not detected by following suggested remedies on this chart, continue to more detailed diagnostic charts. Use chart that most closely describes vehicle symptom and/or operation of warning lamp and LED. Follow tests carefully and repair each malfunction before proceeding to next step.
