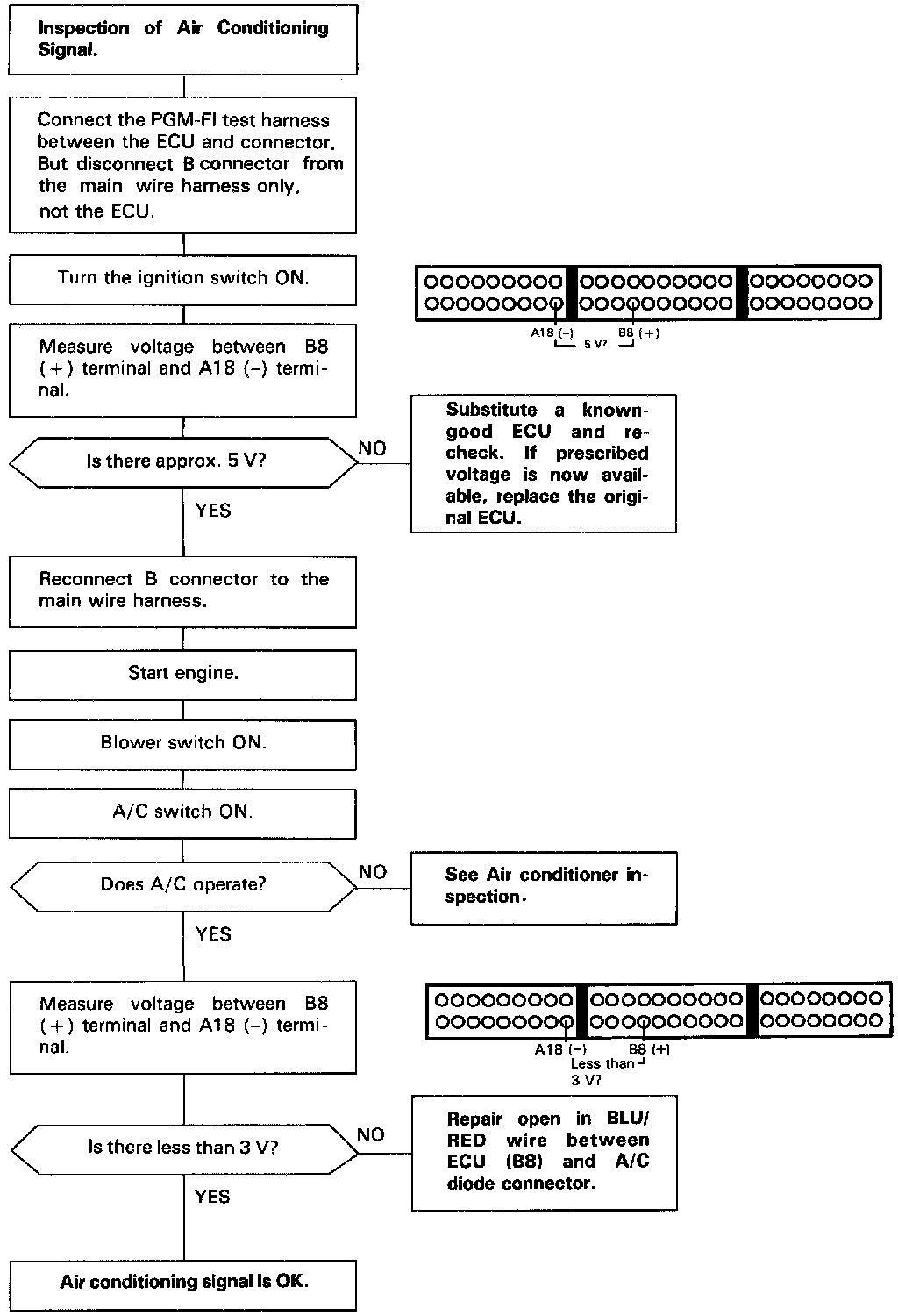

Air Conditioning Signal

Air Conditioning Signal





This signals the PGM-FI ECU when there is a demand for cooling from the air conditioning circuits (A/C switch).
