Home >> Honda >> 1988 >> Prelude L4-1958cc SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor Clutch Relay >> Locations

Compressor Clutch Relay: Locations

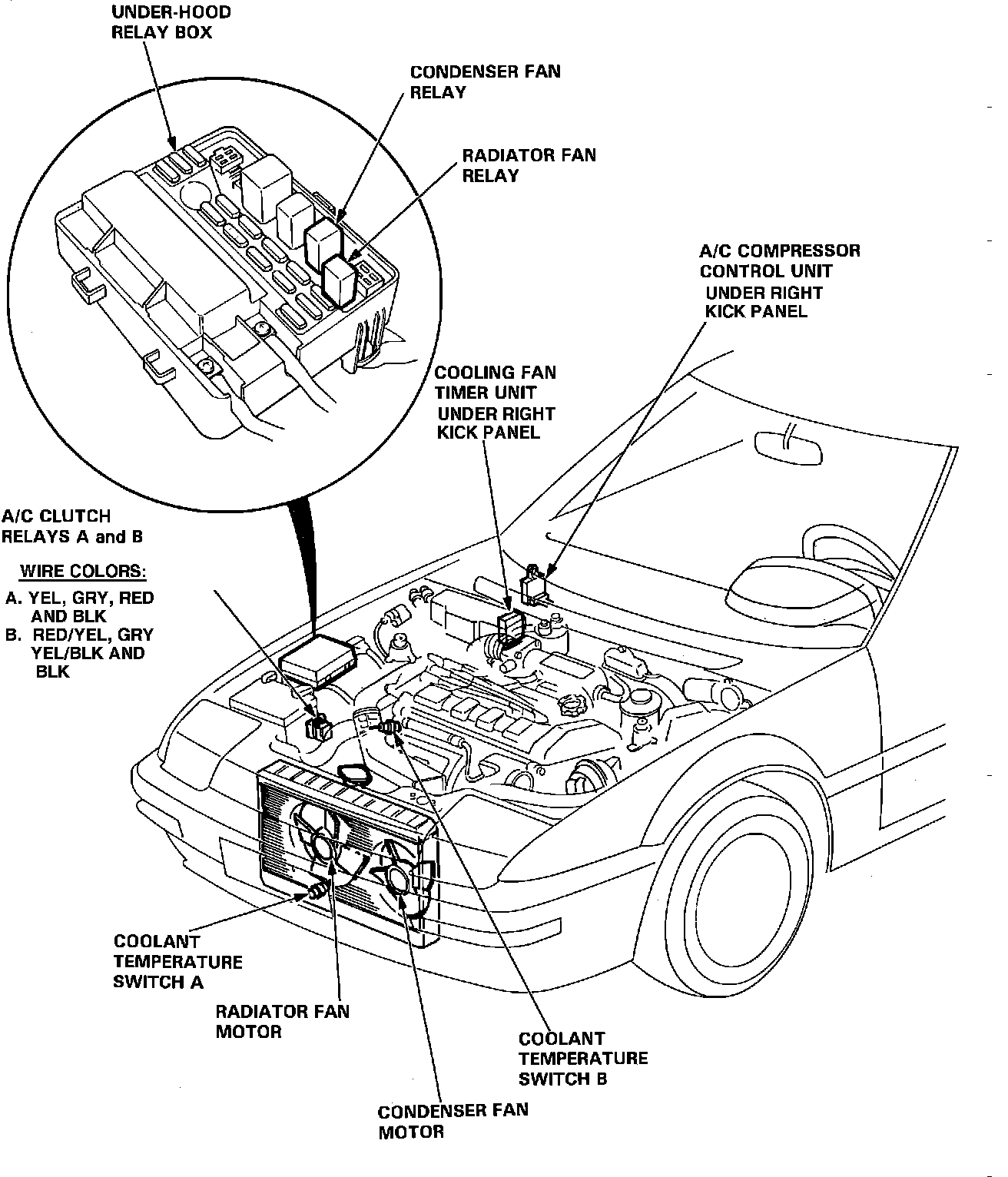

Fig. 1 Component location.:
