Function Control Motor Does Not Run

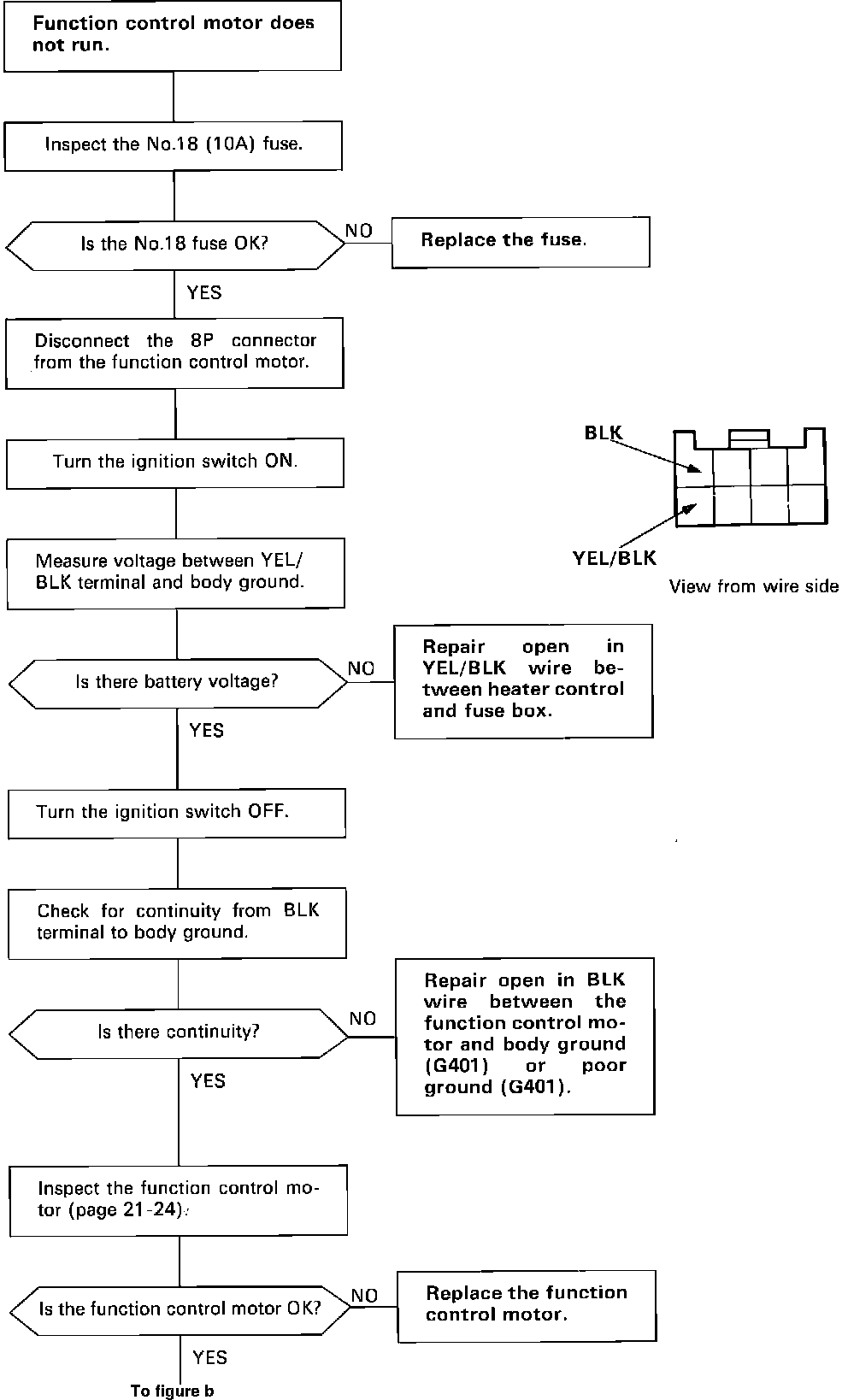

Fig. 11a Function control motor does not run.:

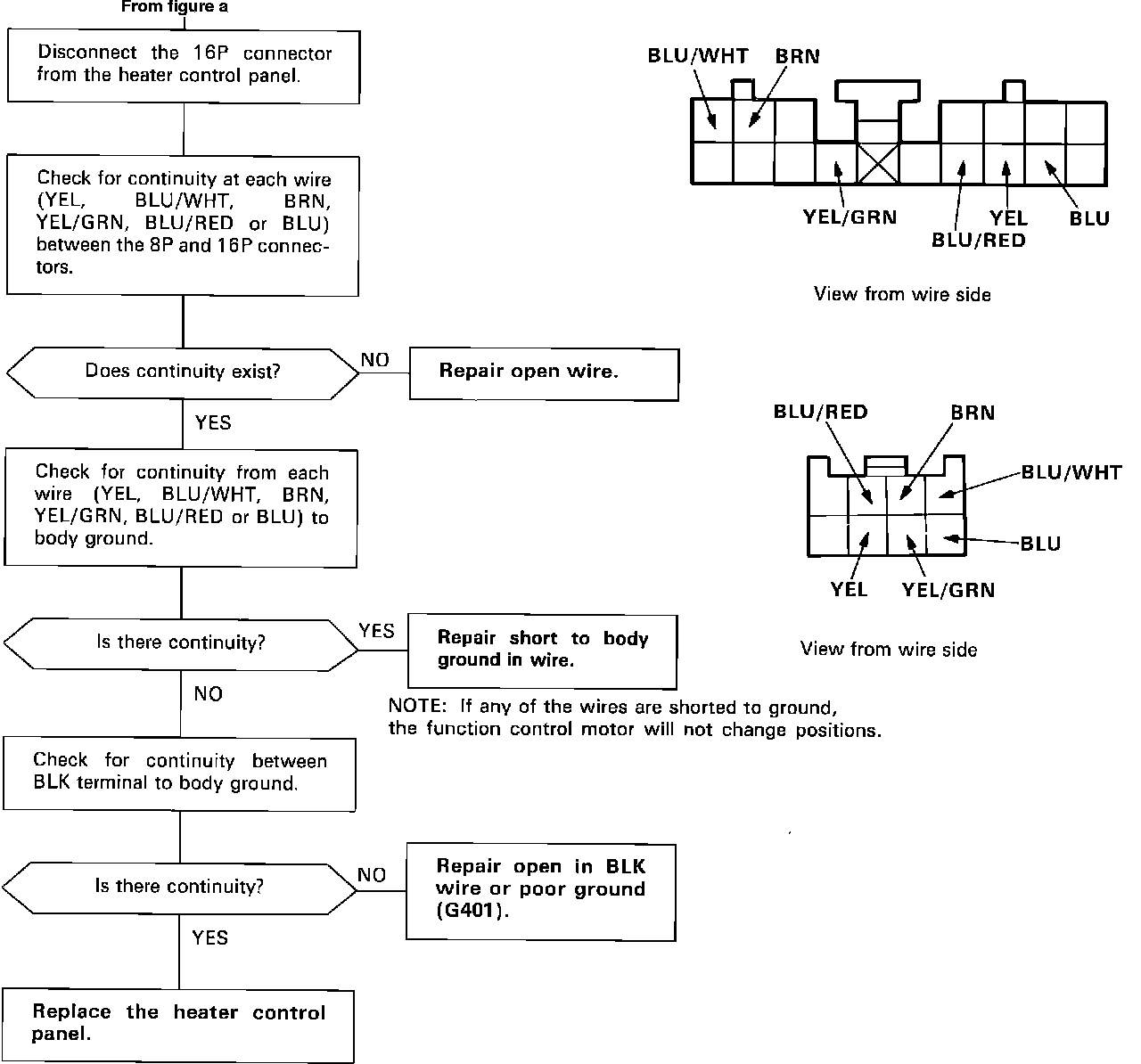

Fig. 11b Function control motor does not run.:
