Air Conditioning Switch: Testing and Inspection

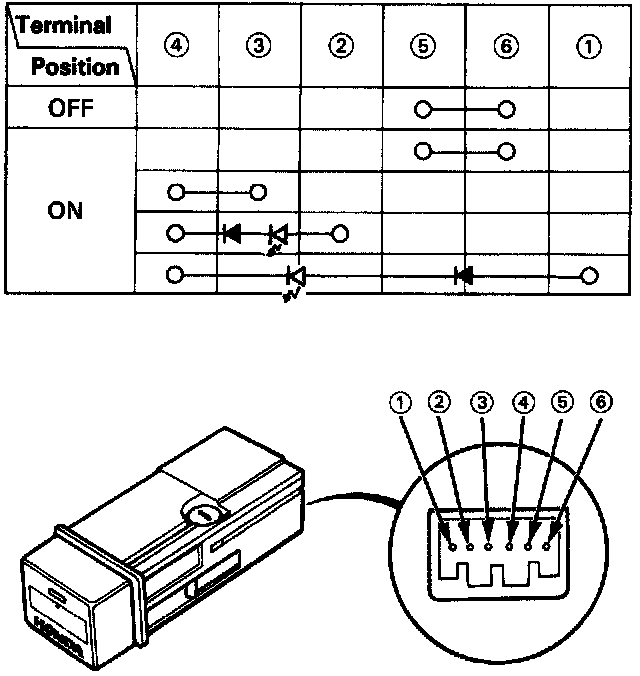

A/C Switch.




Check for continuity between the terminals according to the table.
