Electrical Diagrams

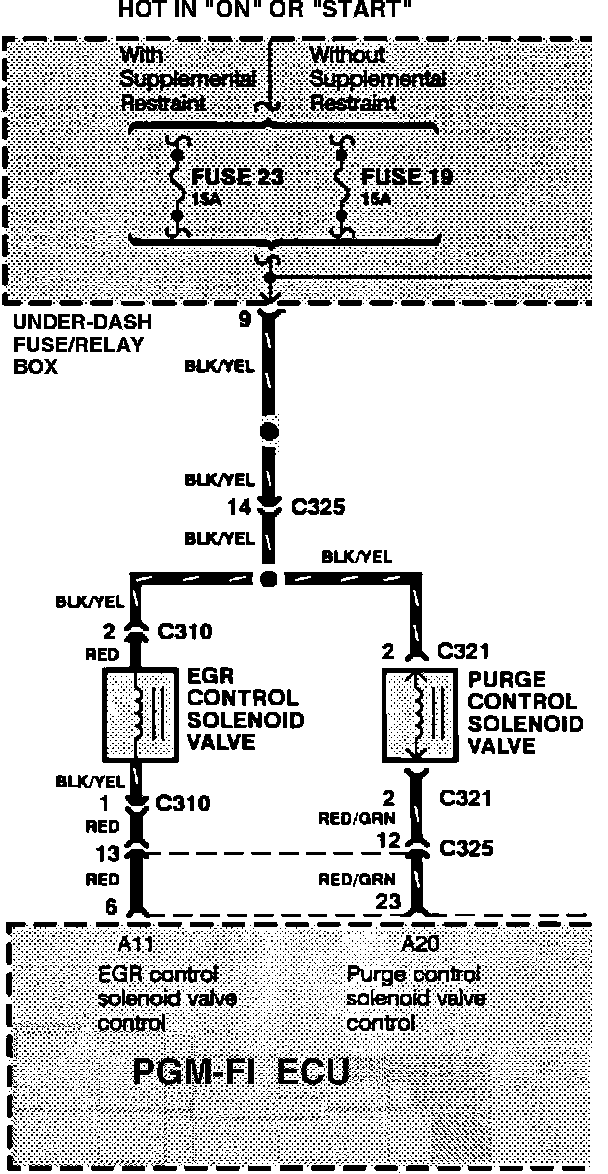

EGR Control Solenoid:






For further information, see CHASSIS ELECTRICAL DIAGRAMS
