Steering

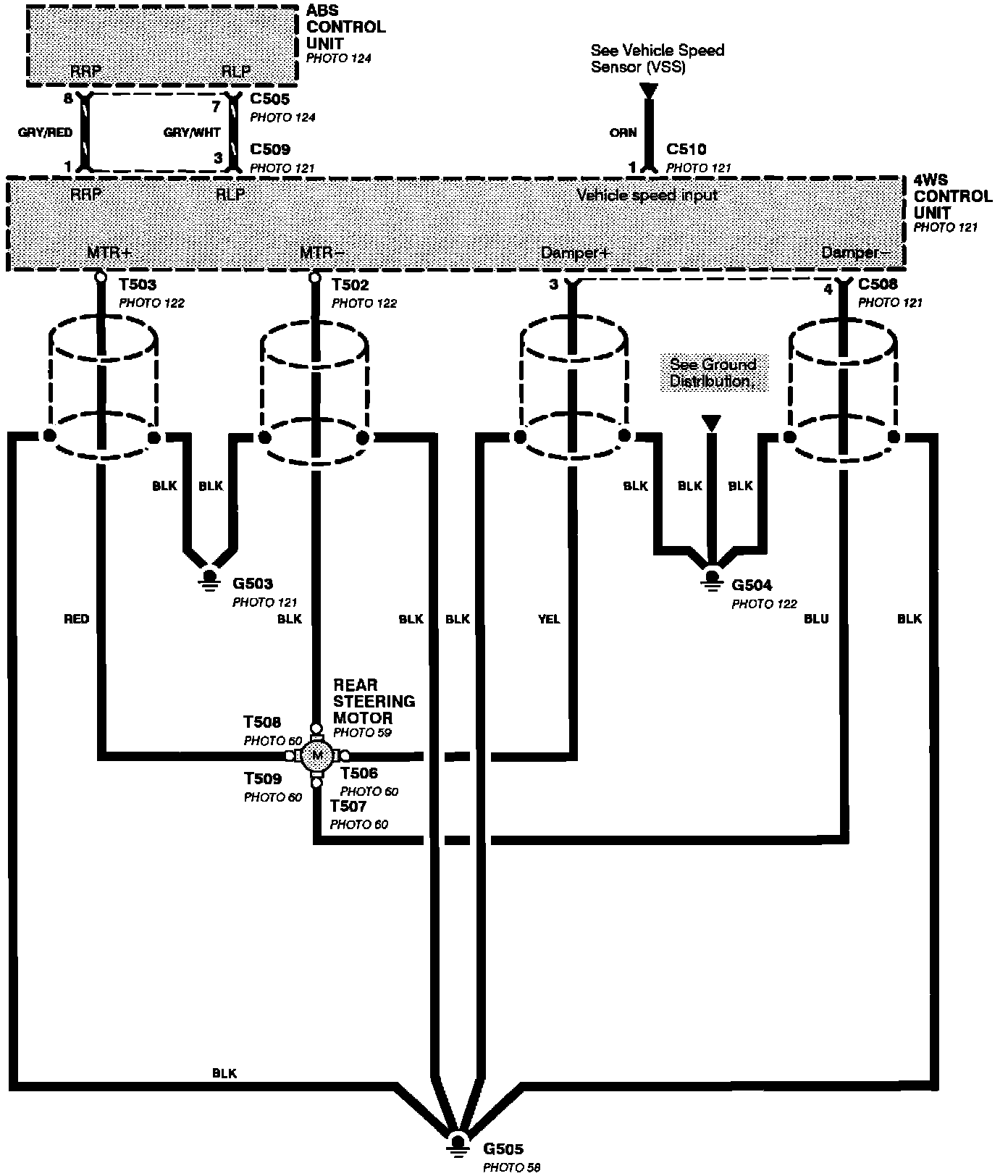

Four Wheel Steering (4WS):

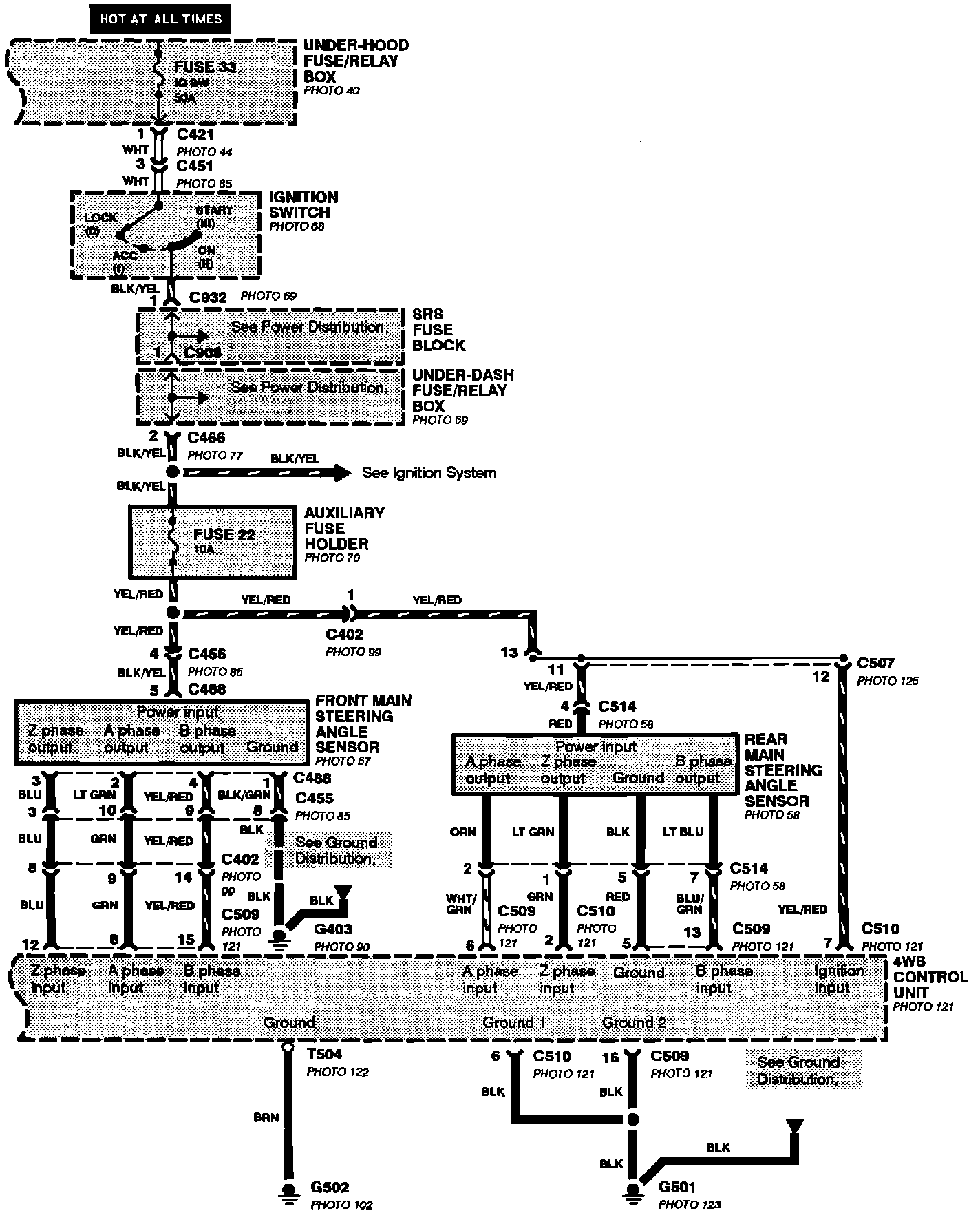

Four Wheel Steering (4WS):

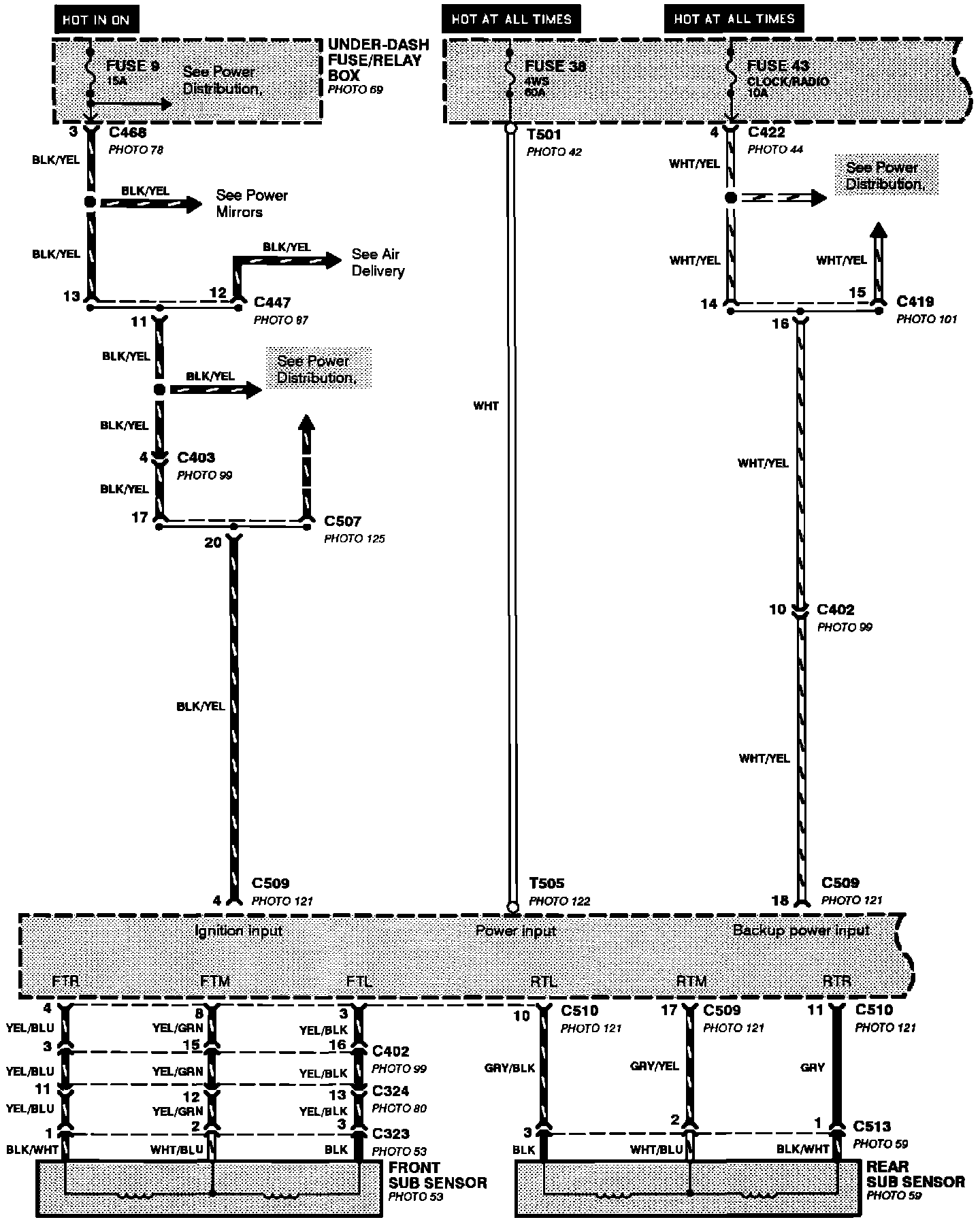

Four Wheel Steering (4WS):

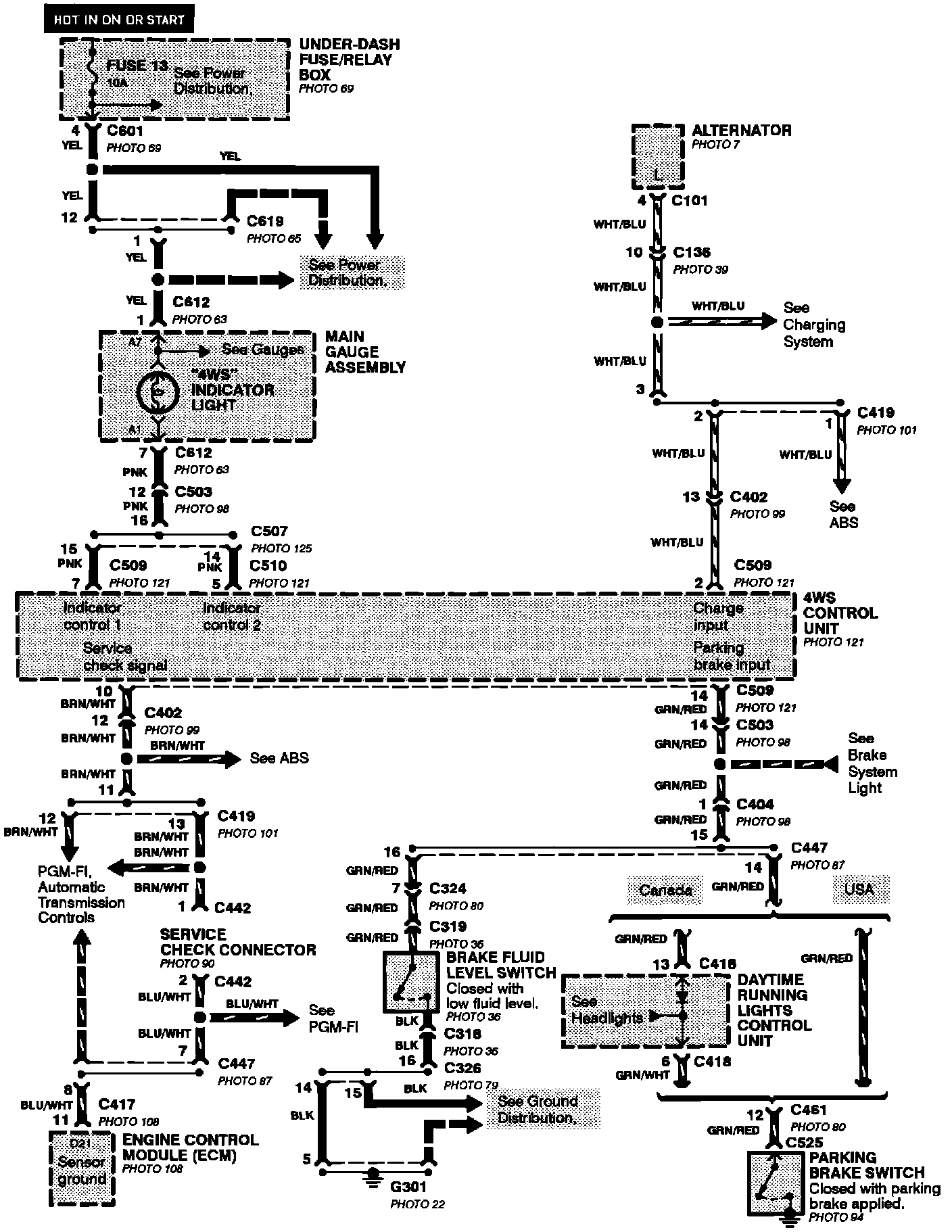

Four Wheel Steering (4WS):
