Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1994
>>
Accord L4-2.2L SOHC VTEC
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Engine Wire Harness
Engine Wire Harness

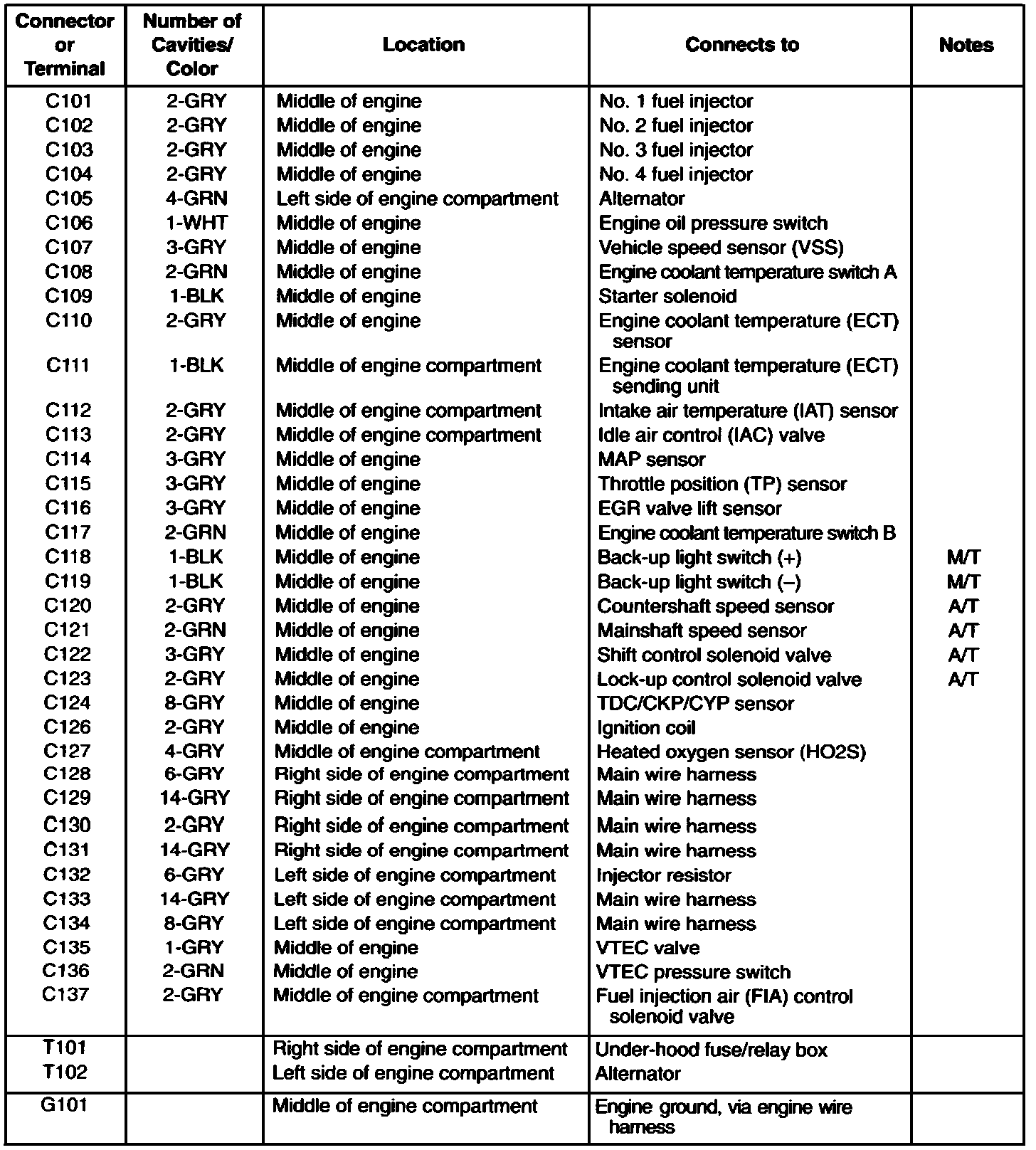

Engine Wire Harness (USA EX, Canada EXR):

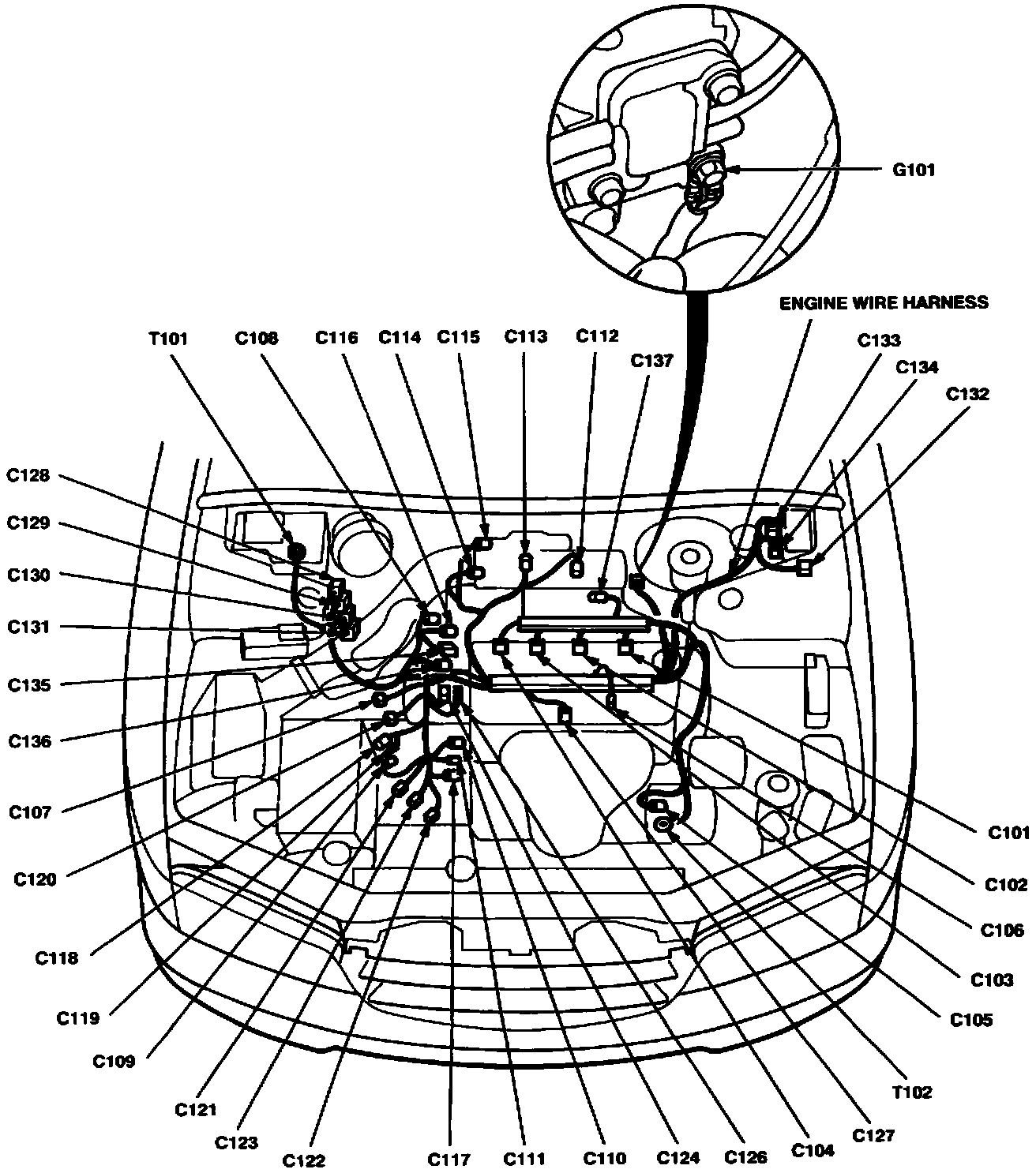

Wire Harness Routing:
