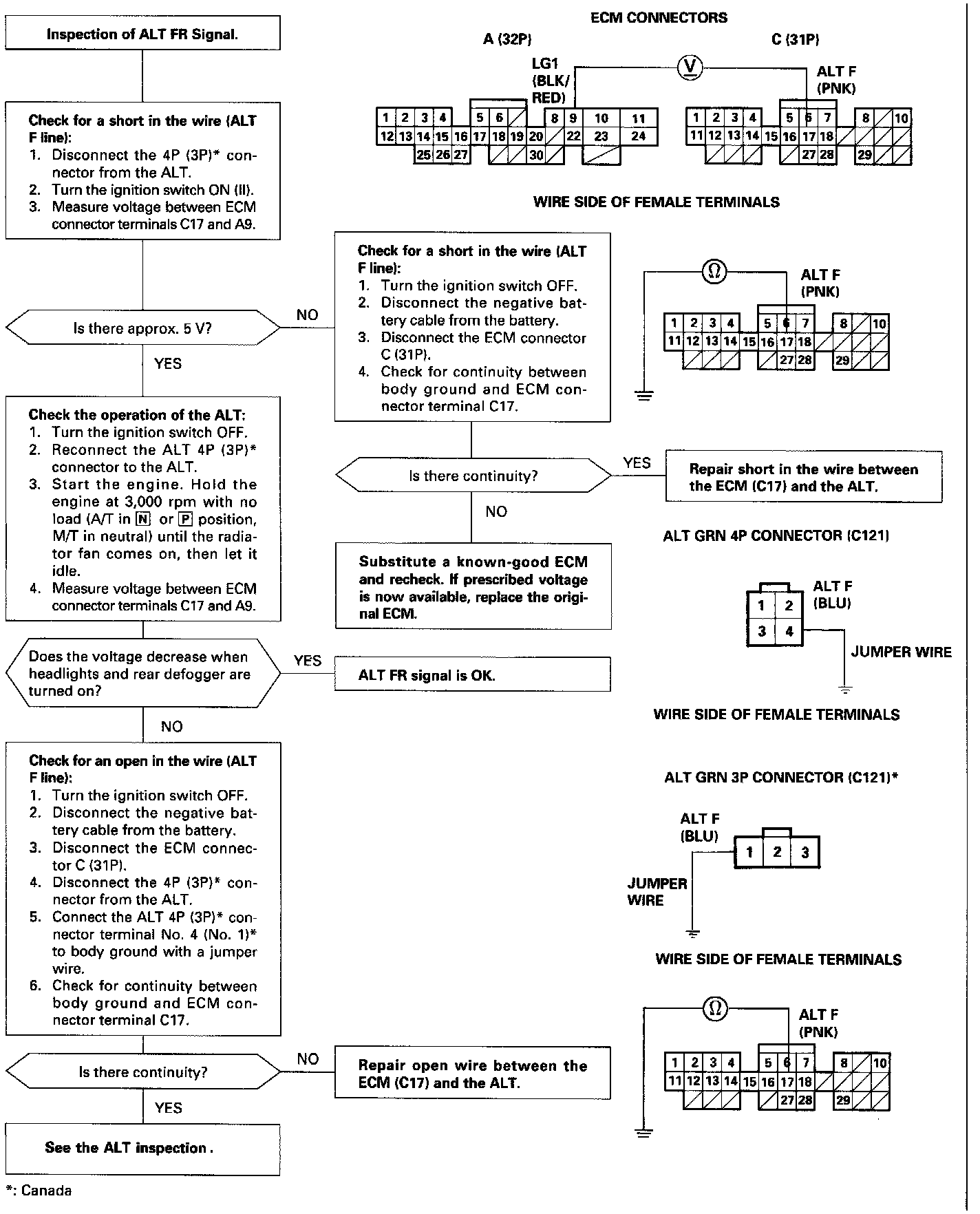

Voltage Signal: Testing and Inspection




This signals the ECM when the Alternator (ALT) is charging.
