Piston Pin Installation

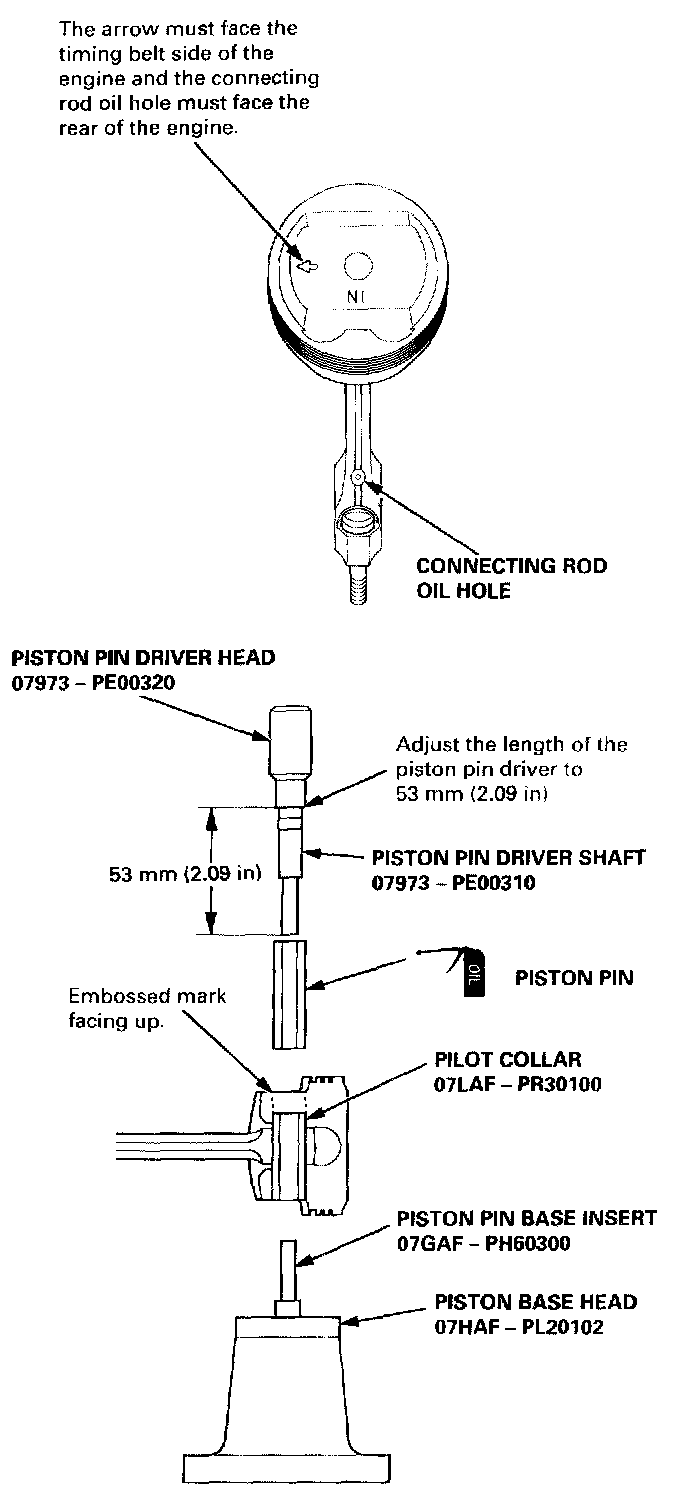

Piston Pins

Installation




1. Use a hydraulic press for installation.
- When pressing the pin in or out, be sure you position the recessed flat on the piston against the lugs on the base attachment.
