Map Light: Testing and Inspection

1. Turn the ceiling/spotlights switch OFF.

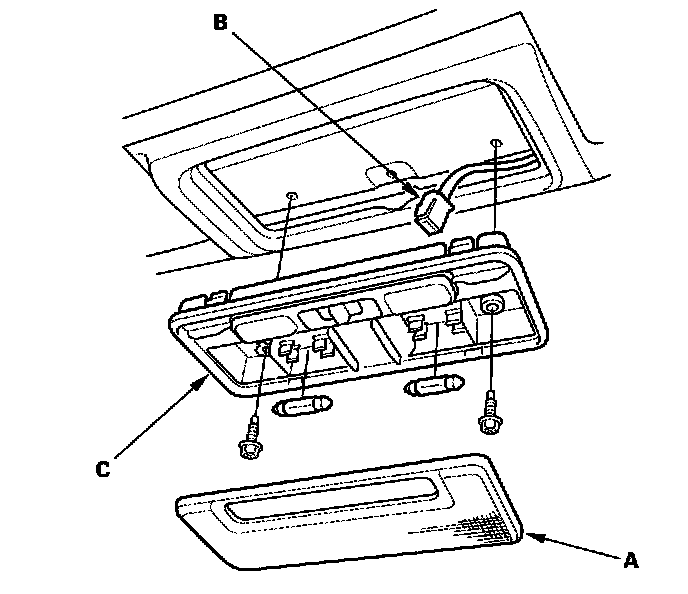

2. Pry OFF the lens (A).
3. Remove the two screws and the ceiling/spotlight housing.
4. Disconnect the 4P connector (B) from the housing(C).

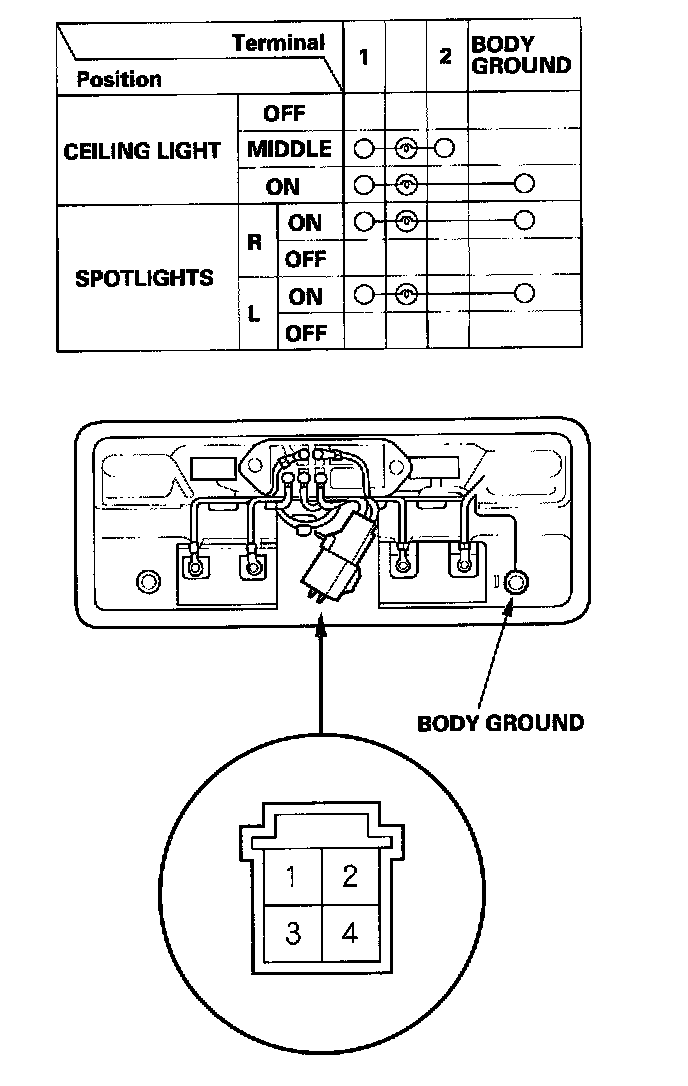

5. Check for continuity between the terminals in each switch position according to the table.
