Torque Specifications

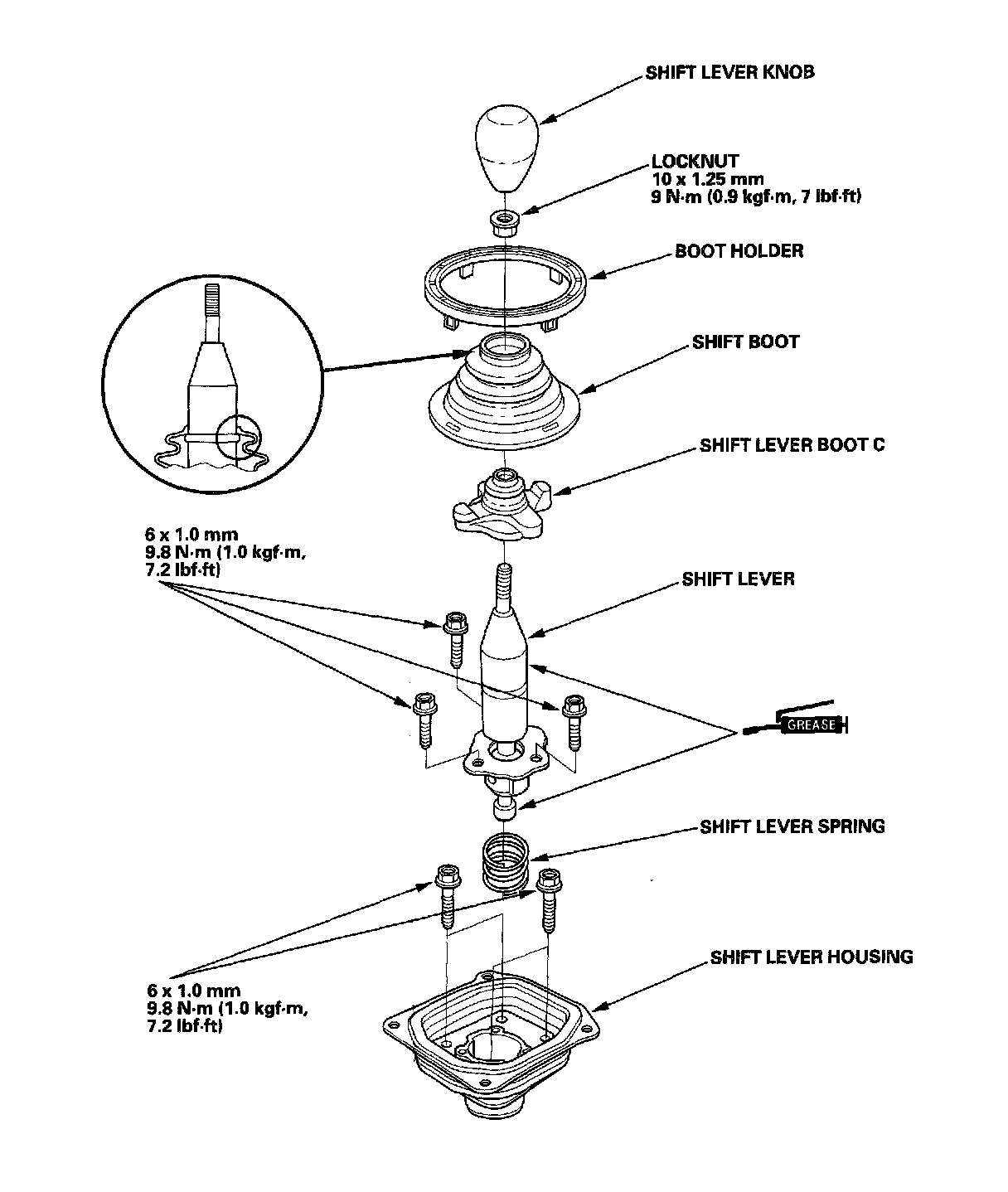

GEARSHIFT MECHANISM REPLACEMENT


TRANSMISSION DISASSEMBLY

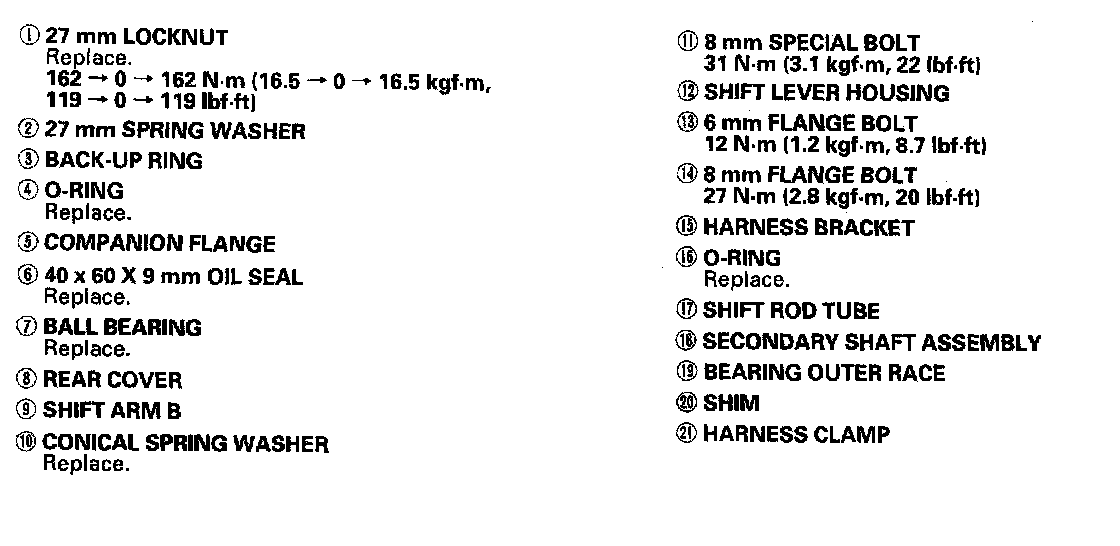

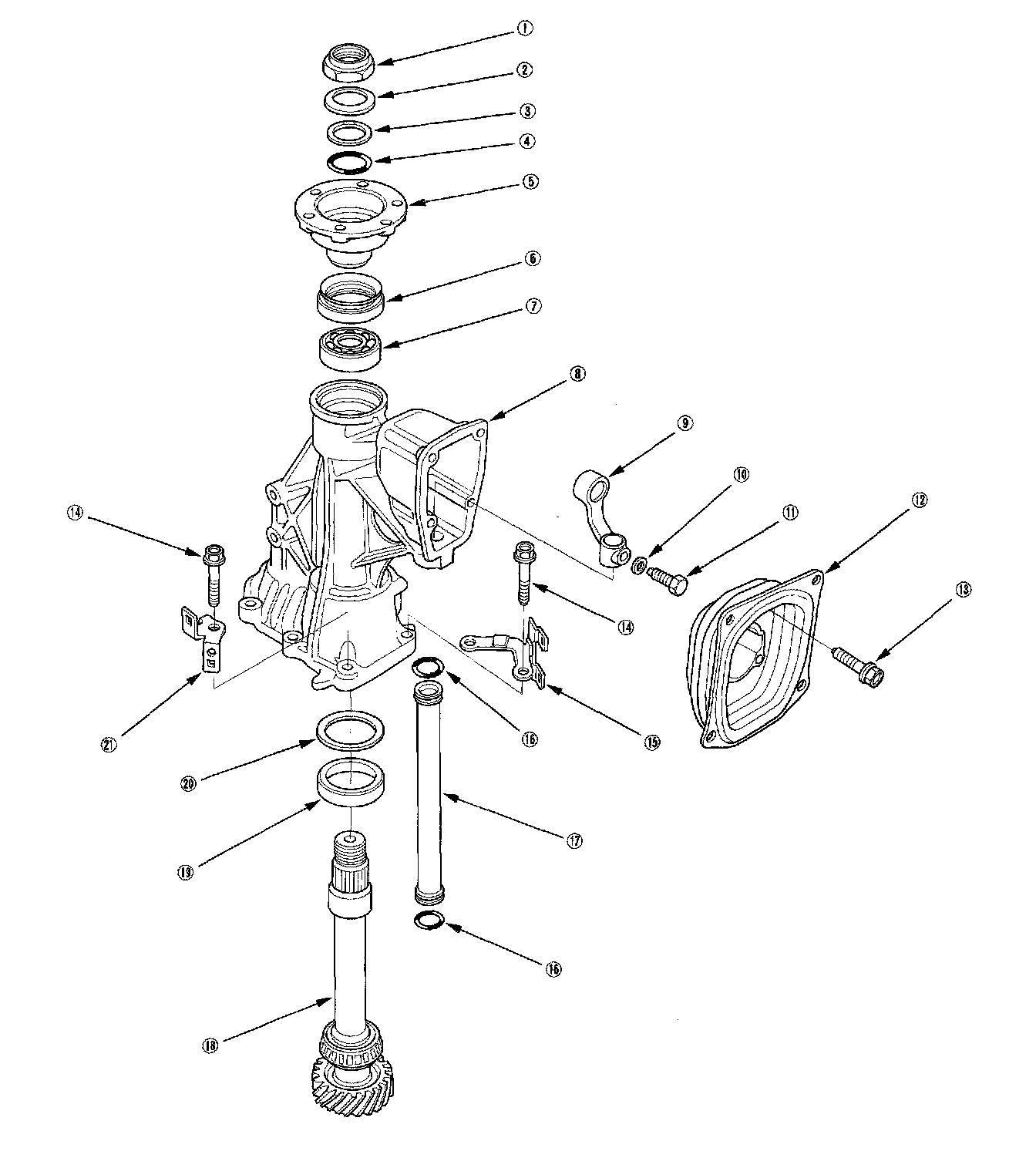

Rear Cover

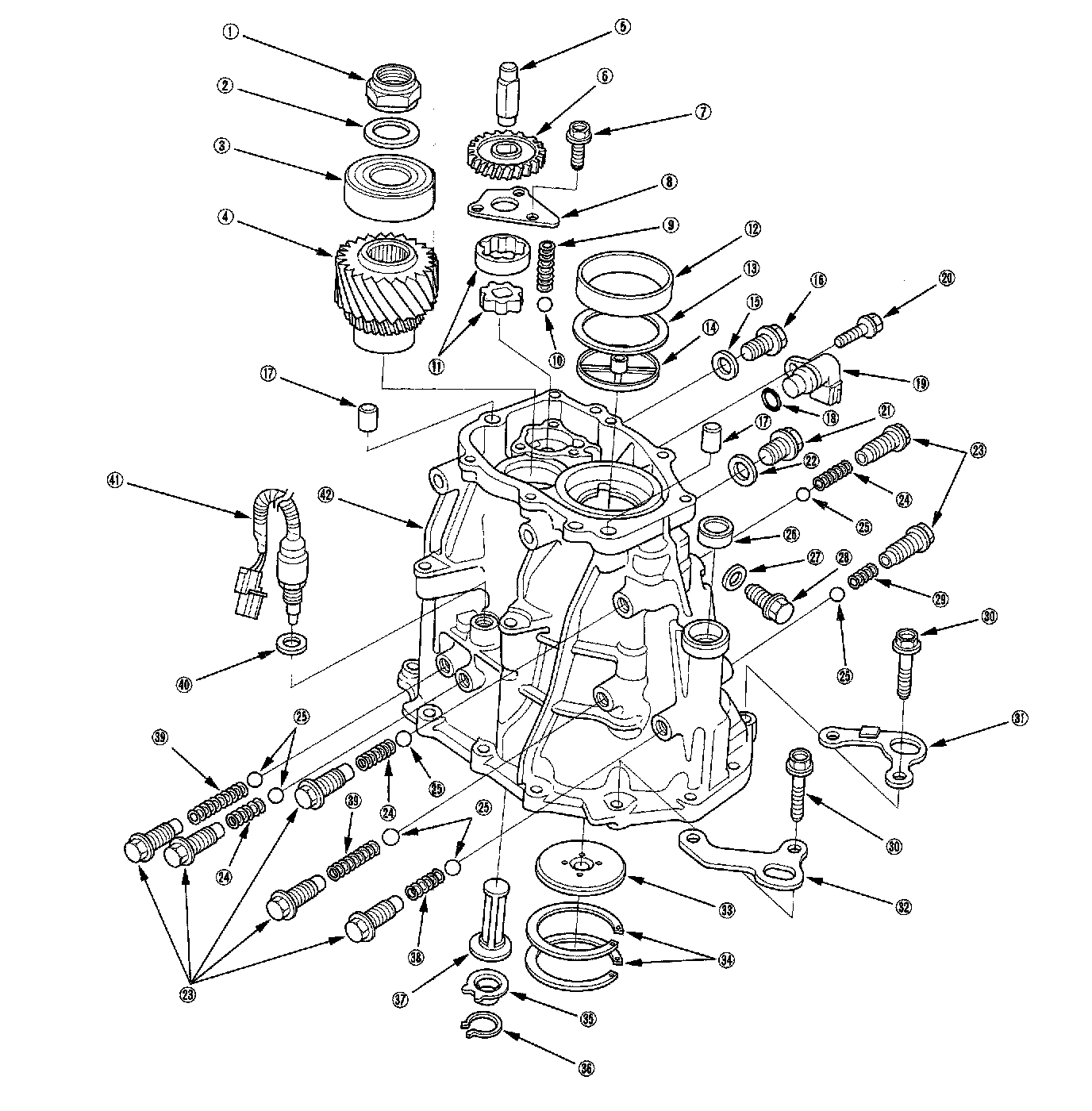

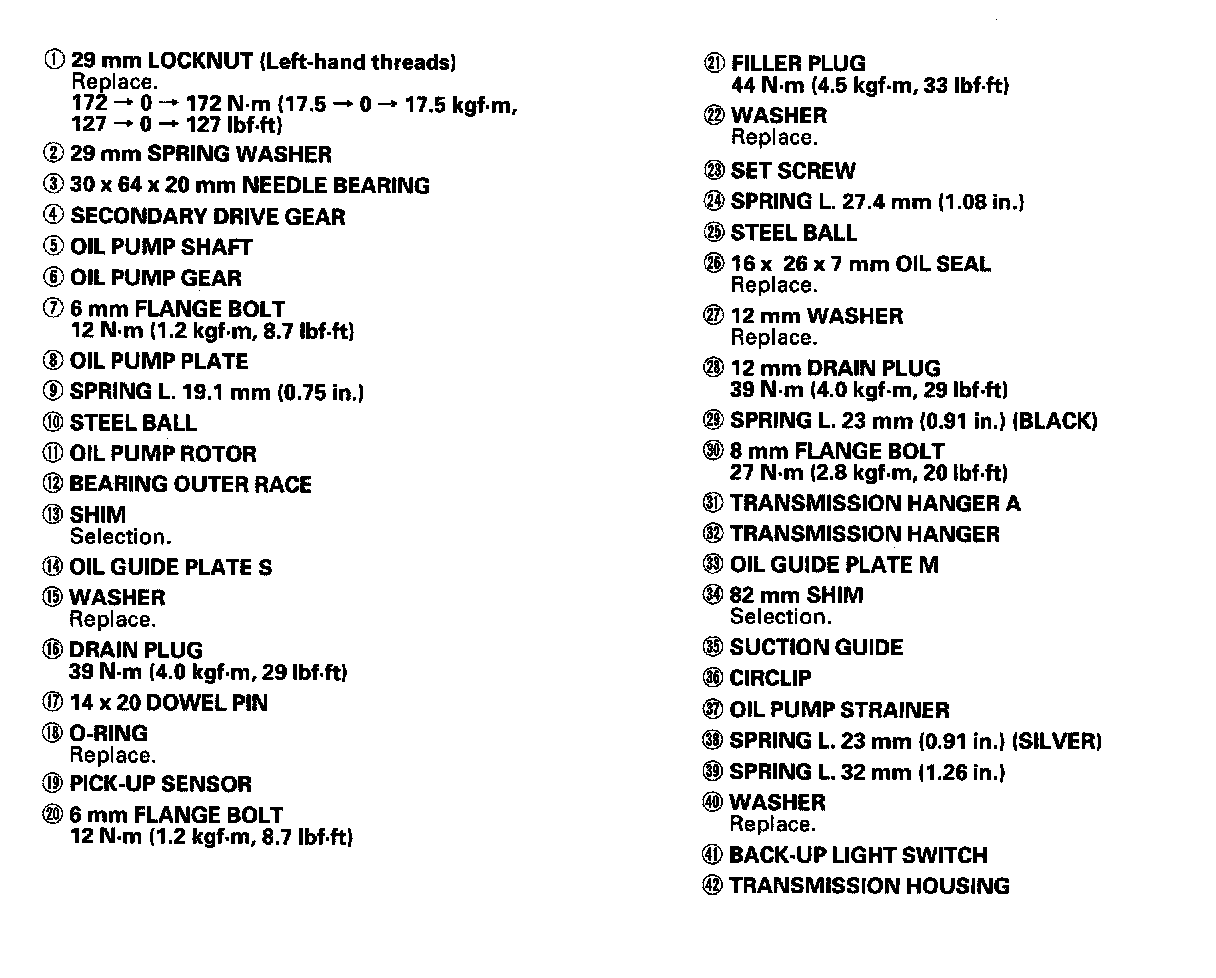

Transmission Housing

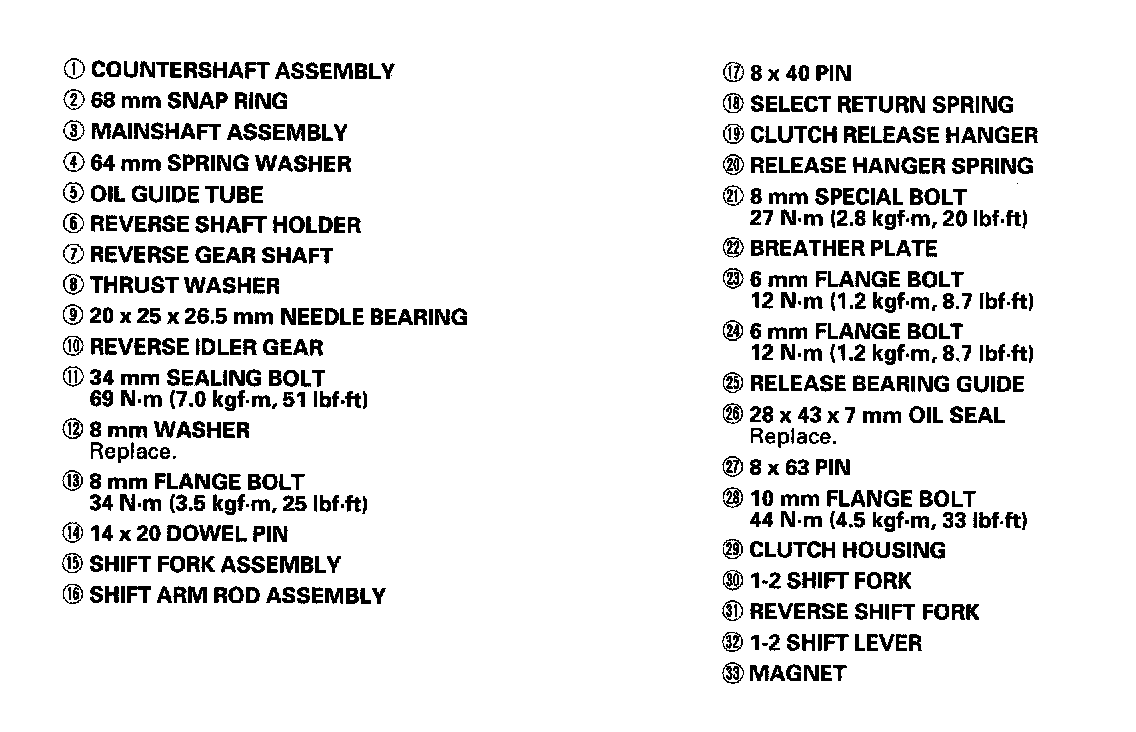

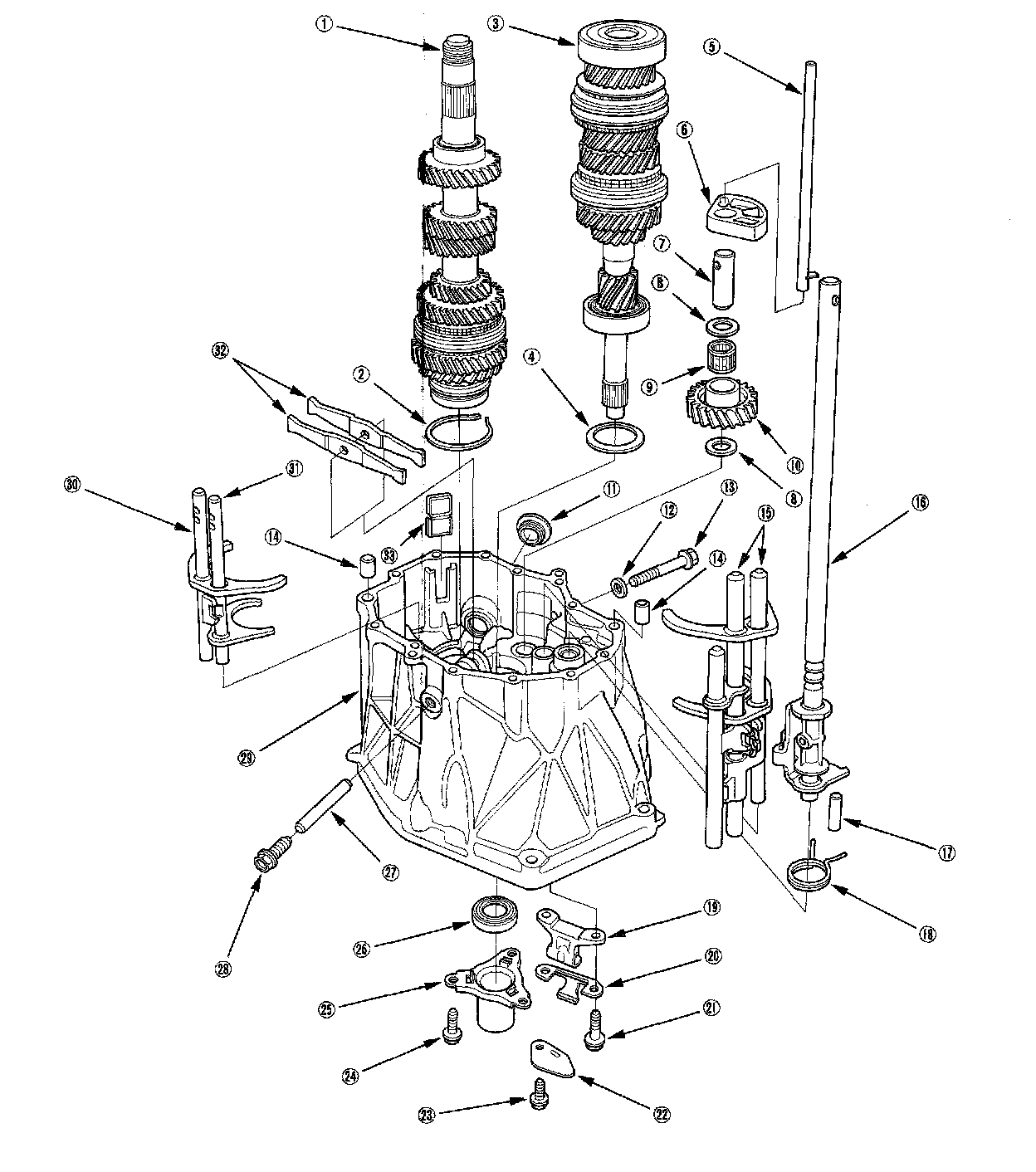

Clutch Housing

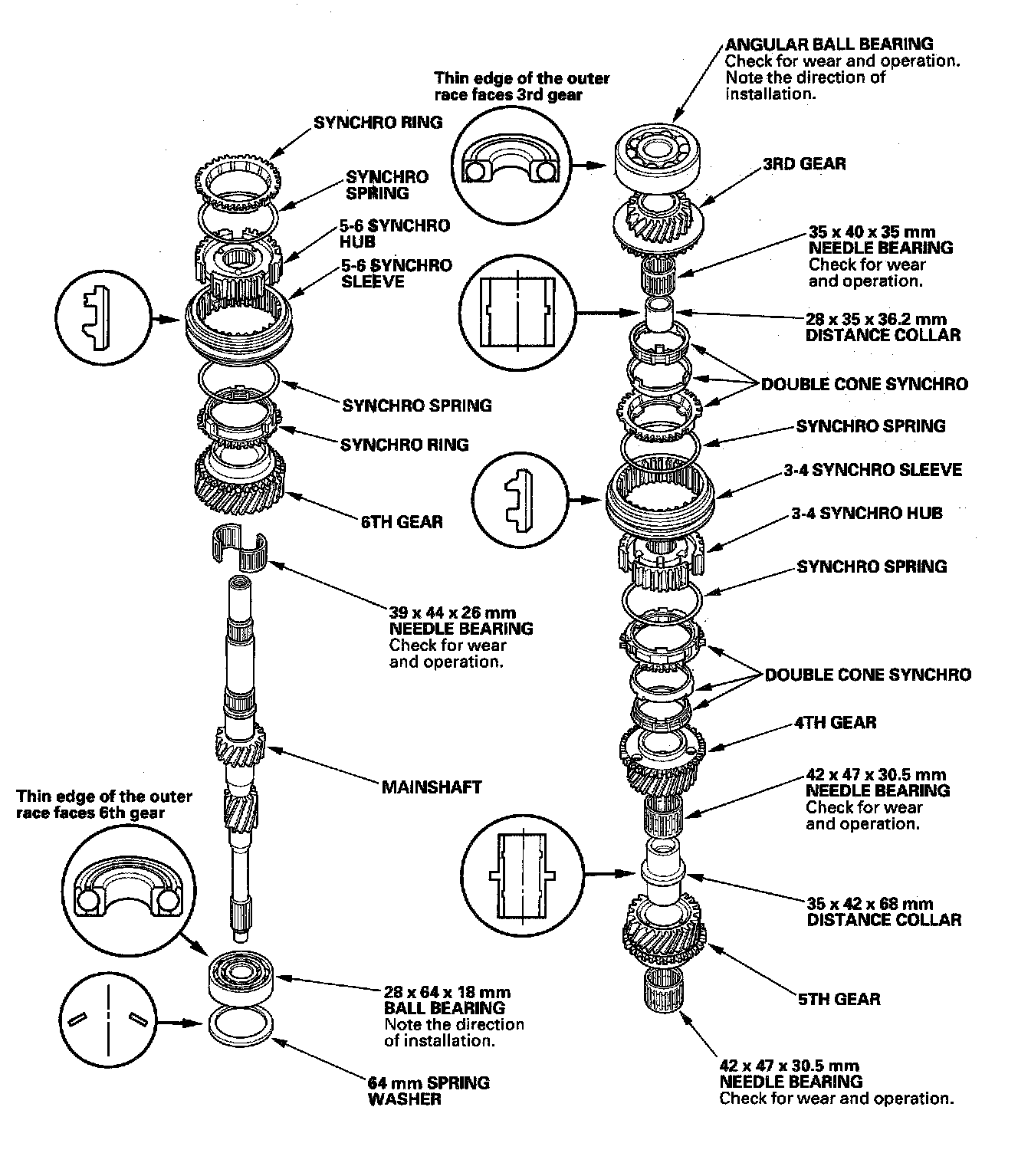

MAINSHAFT REASSEMBLY

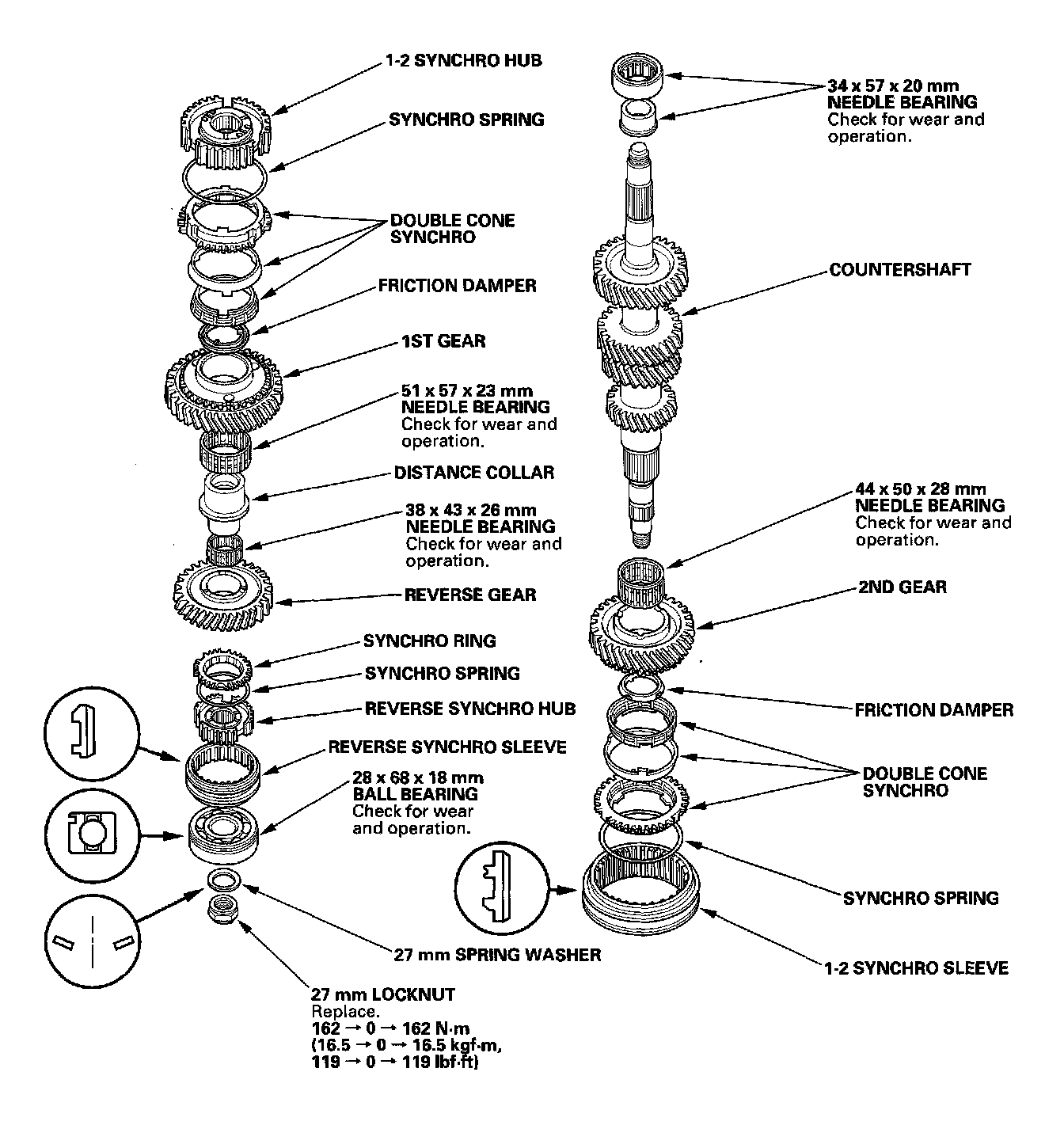

COUNTERSHAFT REASSEMBLY
