Home >> Honda >> 2005 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Shift Interlock Solenoid

Shift Interlock Solenoid

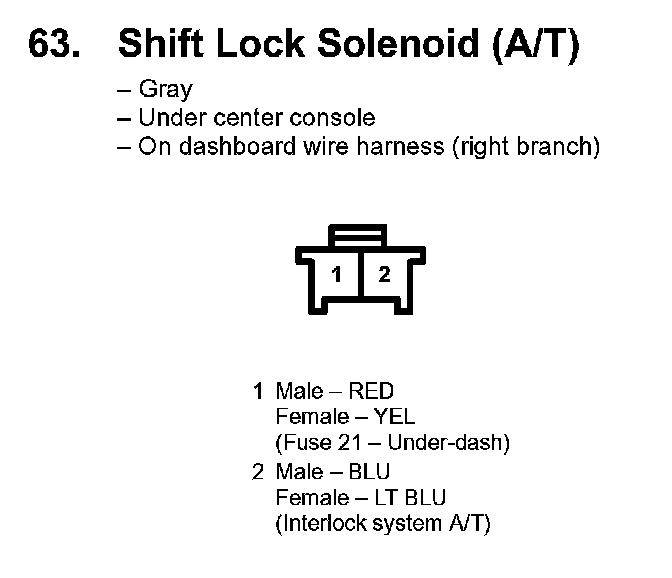

63. Shift Lock Solenoid (A/T):
