Wheel Speed Sensor: Locations

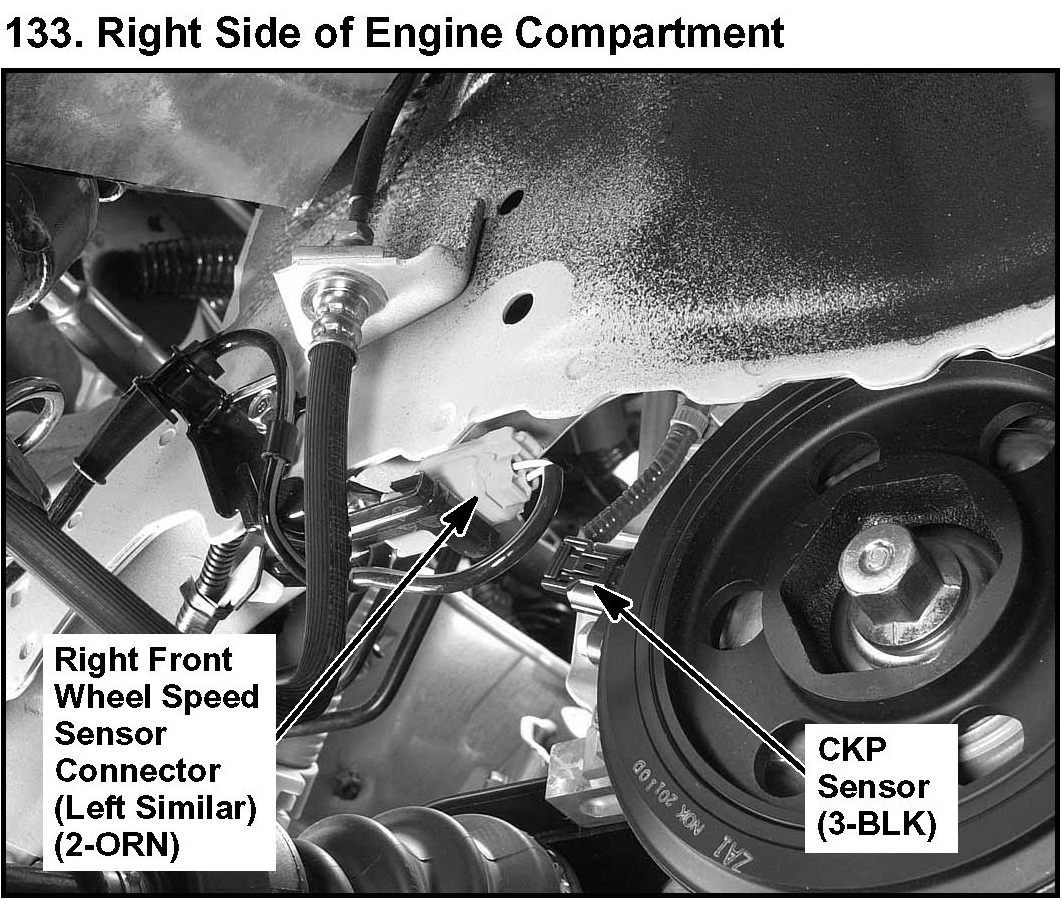

133. Behind Right Side Of Engine Compartment:

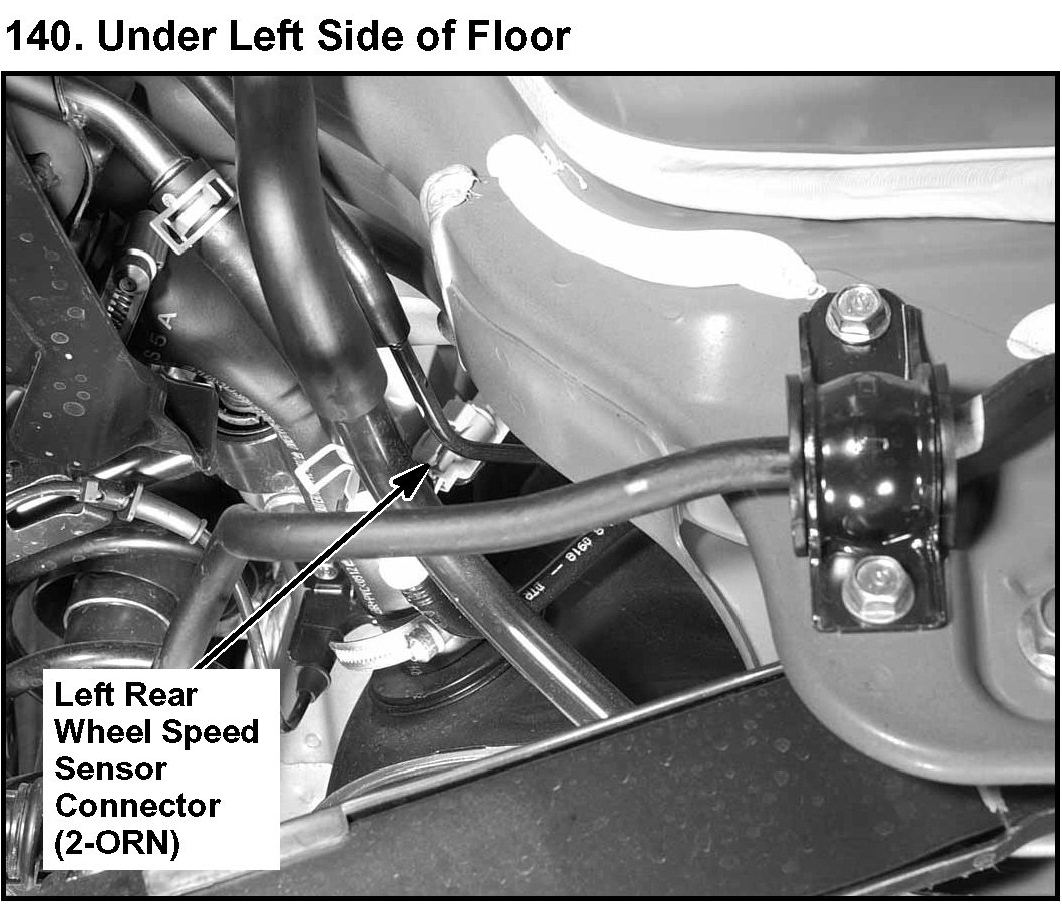

140. Under Left Side Of Floor:

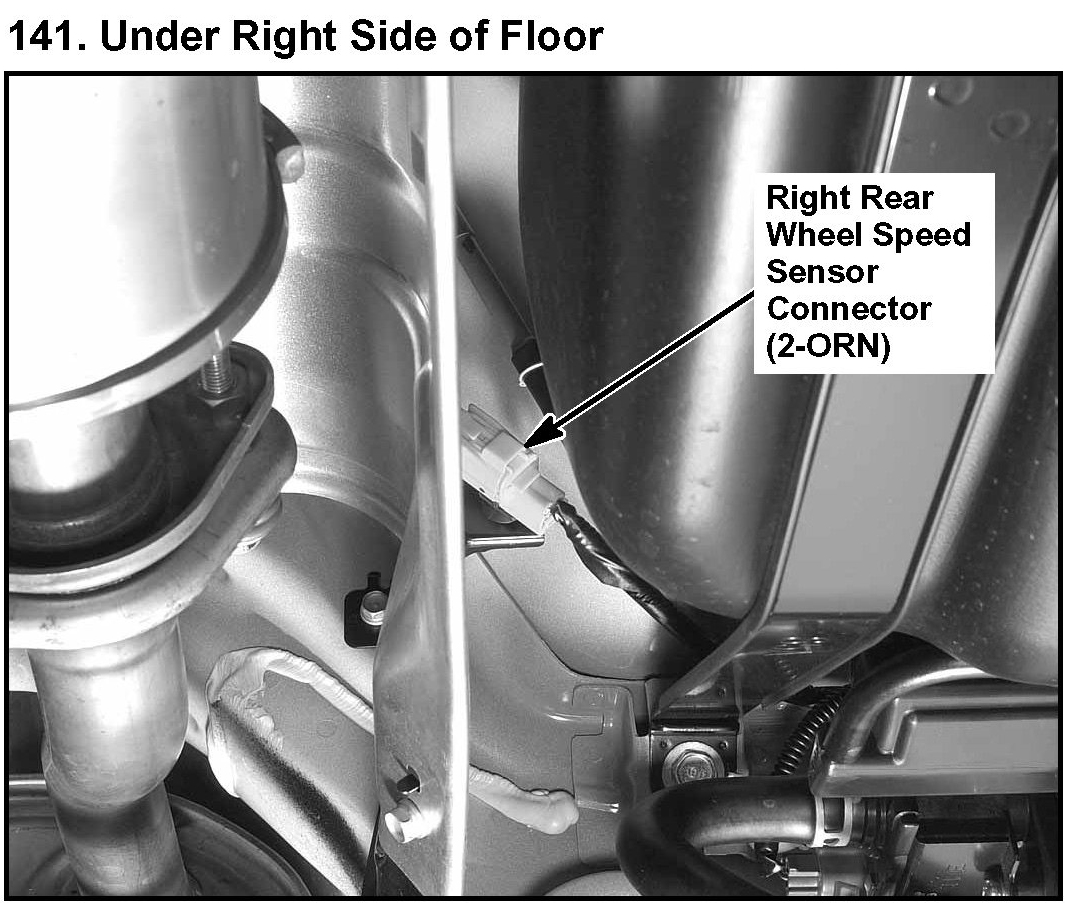

141. Under Right Side Of Floor:
