Home >> Honda >> 2005 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 226-241 >> 226

Views 226-241: 226

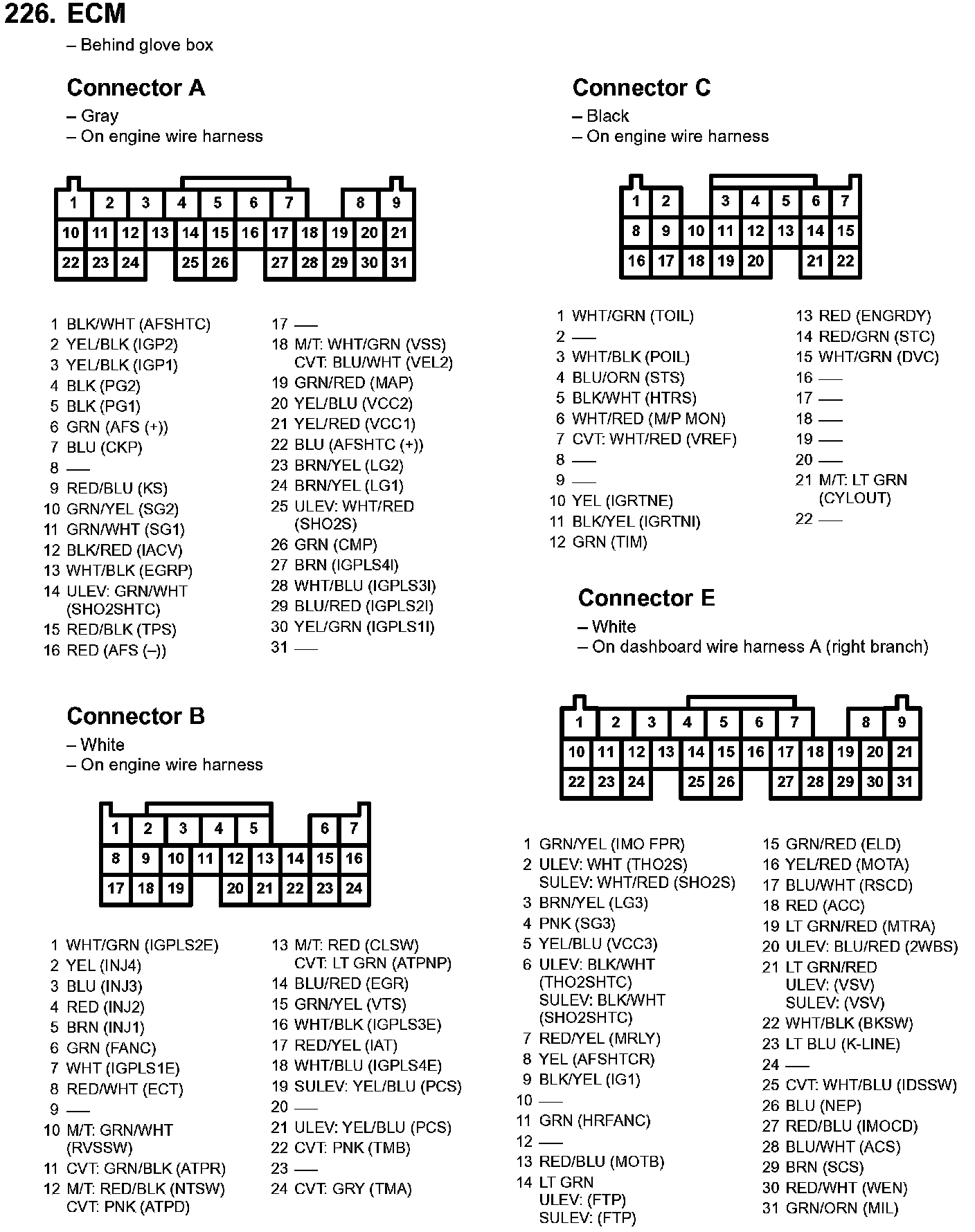

226. ECM:
