CVT Drive Pulley Pressure Control Valve Replacement

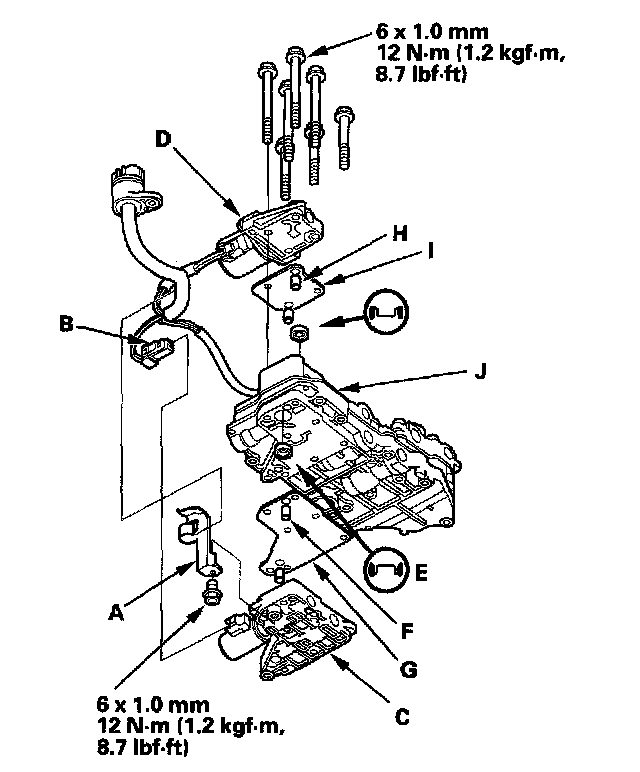

CVT Drive Pulley Pressure Control Valve Replacement1. Remove the lower valve body.
2. Remove the solenoid harness clamp (A).
3. Disconnect the CVT drive pulley pressure control valve connector (B).
4. Remove the seven bolts, and remove the CVT drive pulley pressure control valve (C). The CVT start clutch pressure control valve (D) can also be removed.
5. Check that the filter (E) is in good condition, replace it if it is clogged or damaged.
6. Install the new CVT drive pulley pressure control valve with the dowel pins (F) and separator plate (G), and CVT start clutch pressure control valve with the dowel pins (H) and separator plate (I) on the lower valve body (J).
7. Connect the CVT drive pulley pressure control valve connector.
8. Install the solenoid harness clamp.
9. Install the lower valve body.
