Center Mounted Brake Lamp: Service and Repair

High Mount Brake Light Replacement

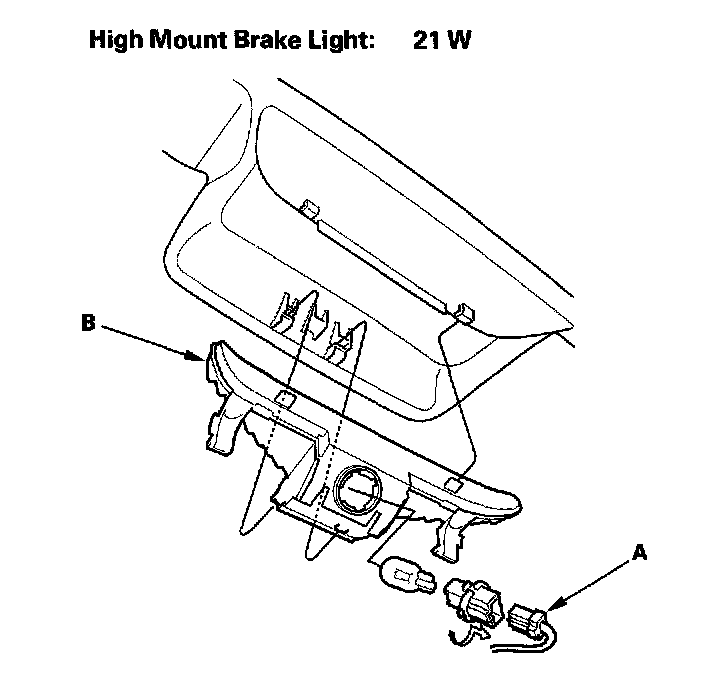

Bulb Type




1. Open the trunk lid and disconnect the 2P connectors (A) from the high mount brake light (B).
2. Carefully remove the rear shelf and high mount brake light.
- 2-door
- 4-door

3. Install the light in the reverse order of removal.

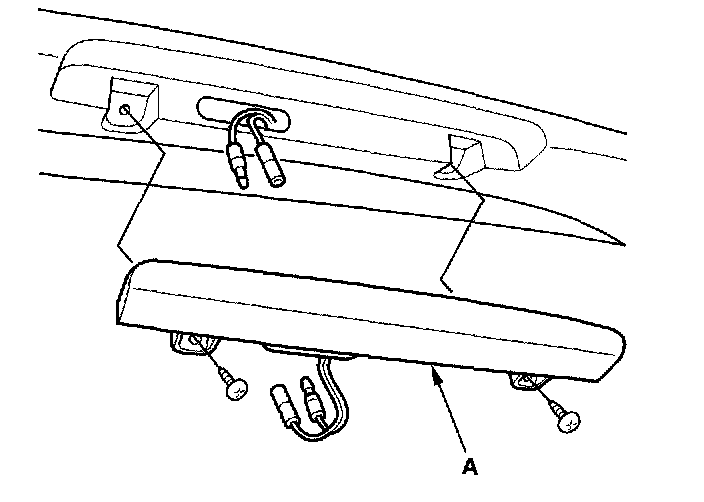

LED Type




1. Remove the two screws from the trunk spoiler, then remove the high mount brake light (A).
2. Install the light in the reverse of removal.
