Evaporative Emissions System: Diagrams

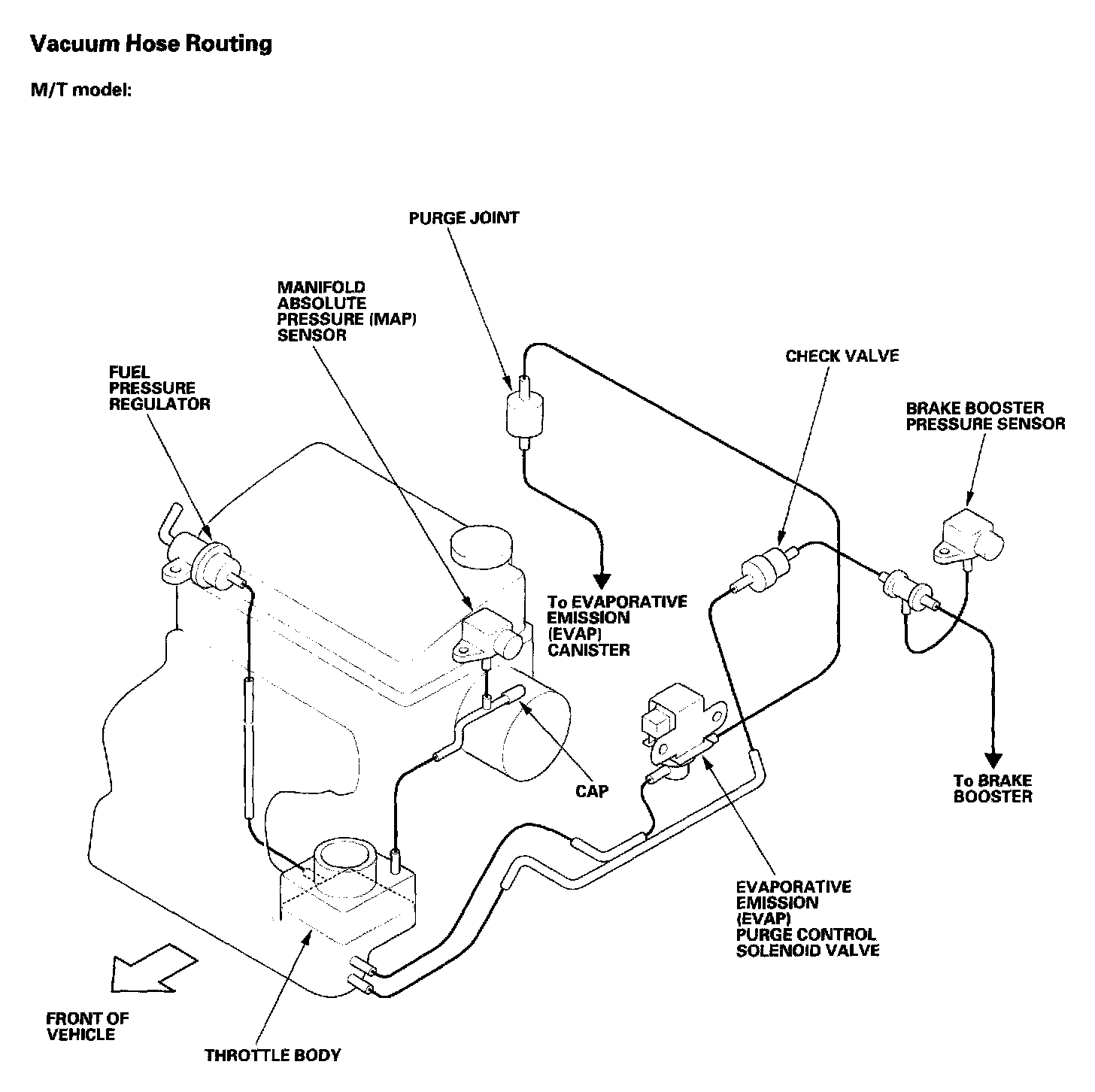

Vacuum Hose Routing (M/T Model):

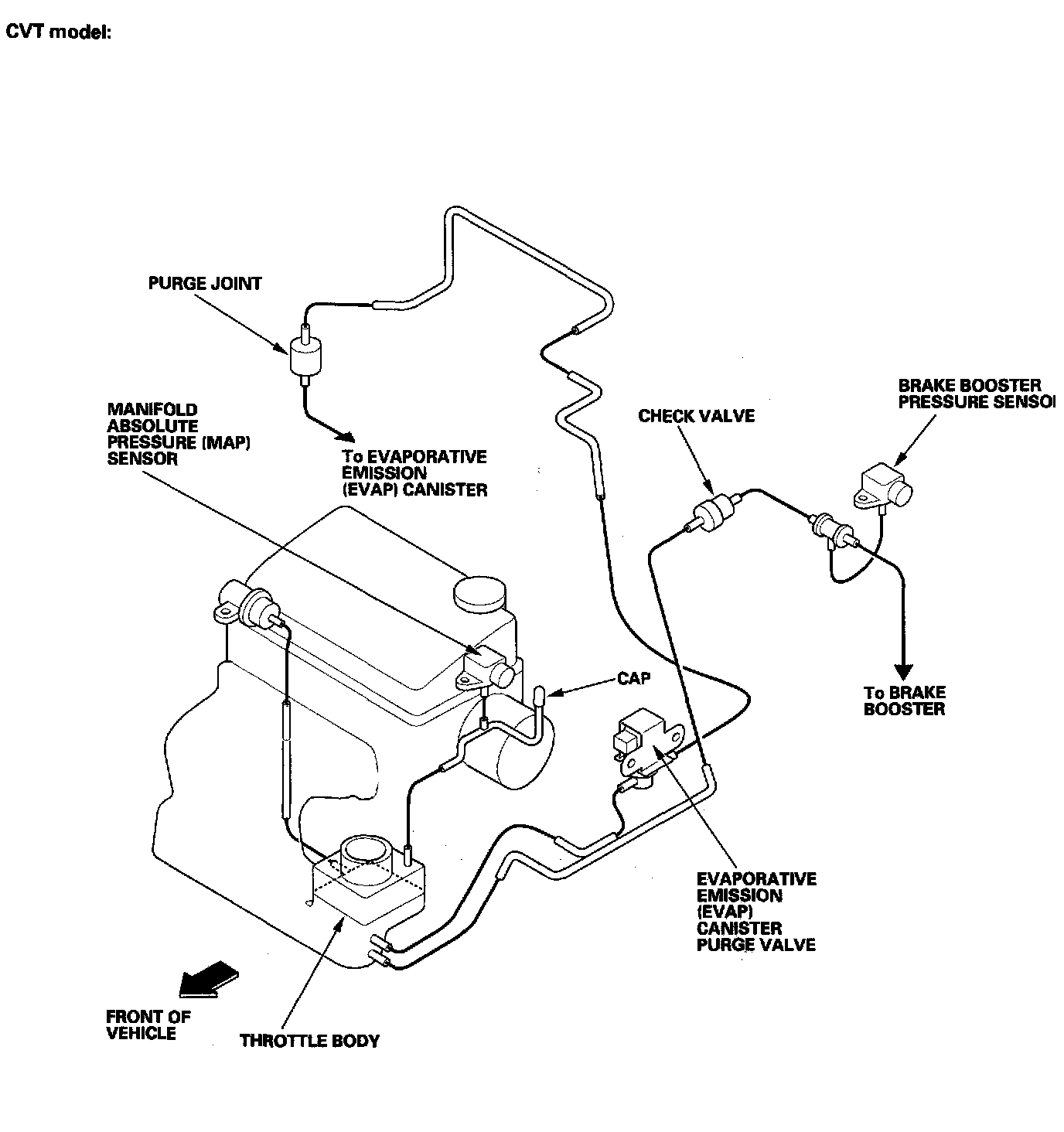

Vacuum Hose Routing (CVT Model):
