Front Seat Belt
Seat Belt ReplacementSRS components are located in this area. Review the SRS component locations and the precautions and procedures before performing repairs or service.
NOTE: Check the seat belts for damage, and replace them if necessary.
Seat Belt
1. Make sure you have the anti-theft code for the radio, and then write down the frequencies for the preset buttons.
2. Disconnect the negative cable from the battery, and wait at least 3 minutes before beginning work.
3. Remove these items:
- Seat
- Rear side trim
- Spare tire cover and spare tire
- Rear tray/roll bar and upper trim assembly.

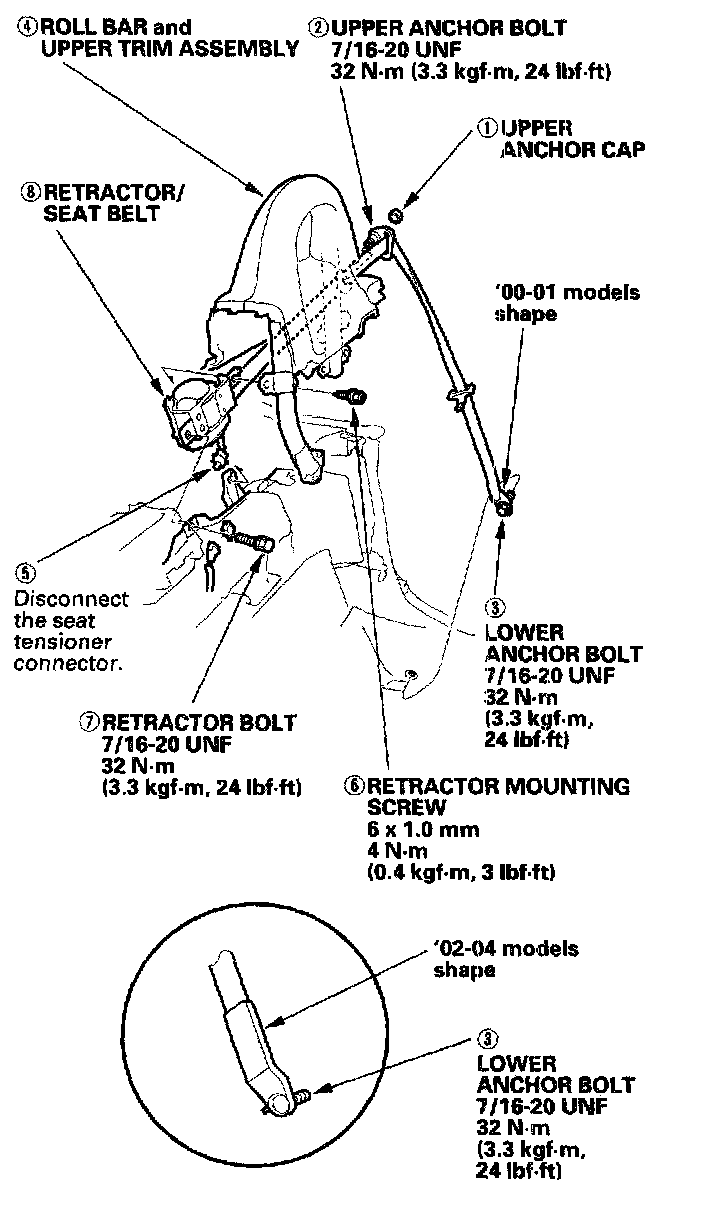

4. Remove the seat belt and retractor in numbered sequence.
5. Install the belt in the reverse order of removal, and note these items:
- Check that the retractor locking mechanism functions.
- Follow the Anchor Bolt Installation diagrams carefully when assembling the washers, collar, and bushings of the upper and lower anchor bolts.
- Apply liquid thread lock to the anchor bolts before reinstallation.
- Before installing the anchor bolts, make sure there are no twists or kinks in the seat belt.
- Make sure the seat belt tensioner connector is plugged in properly.
- Apply liquid thread lock to the seat mounting bolts before reinstallation.
- Reconnect the negative cable to the battery.
- Enter the anti-theft code for the radio, and then enter the customer's radio station presets.
- Reset the clock.
- Do the PCM idle learn procedure.
