Floor Under Cover Replacement

Floor Under Cover Replacement

'06-07 Models

NOTE: Take care not to scratch the body.

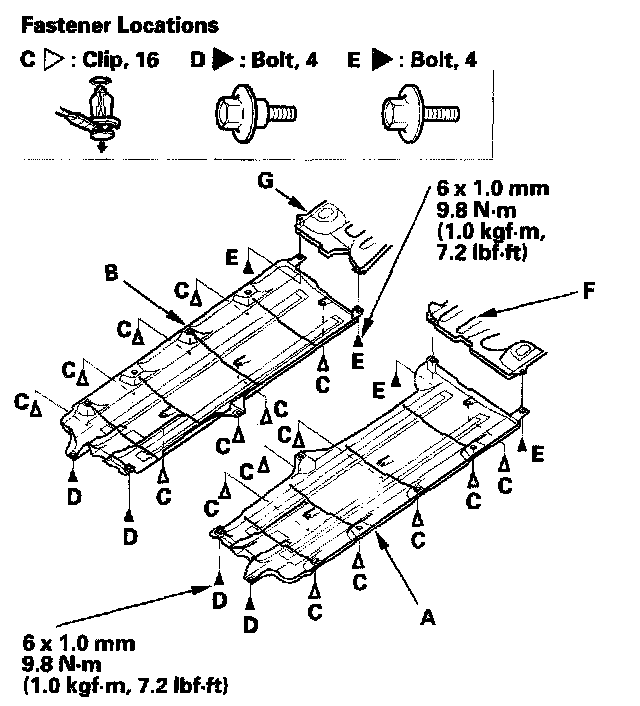

1. Remove the left floor under covers (A) and right floor under cover (B).
1. Remove the clips (C) and bolts (D).
2. Remove the bolts (E) securing the floor under covers, left middle floor under cover (F), and right middle floor under cover (G).

2. Install the cover in the reverse order of removal, and note these items:
- Check for damaged or stress-whitened clips, and replace them with new ones.
- Push the clip portions into place securely.
