Operation CHARM: Car repair manuals for everyone.
Home >> Honda >> 2007 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Heating and Air Conditioning >> Ambient Temperature Sensor / Switch HVAC >> Locations

Ambient Temperature Sensor / Switch HVAC: Locations

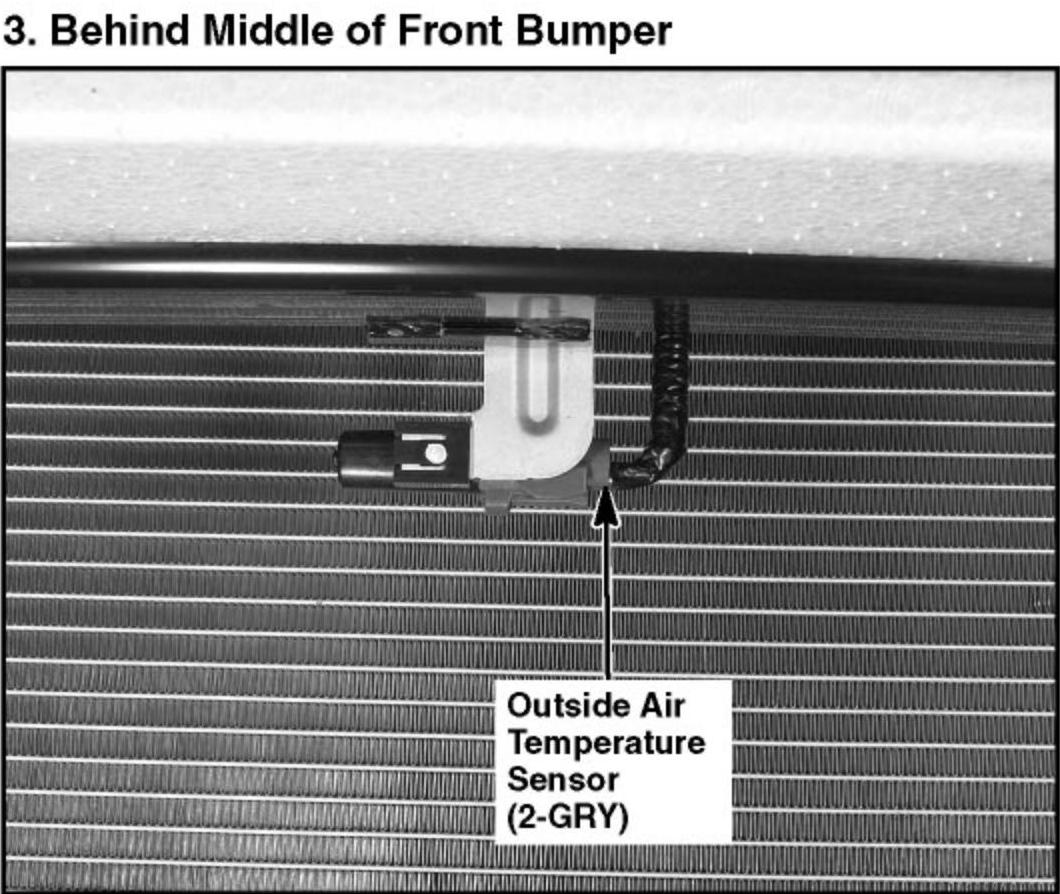

3. Behind Middle of Front Bumper:

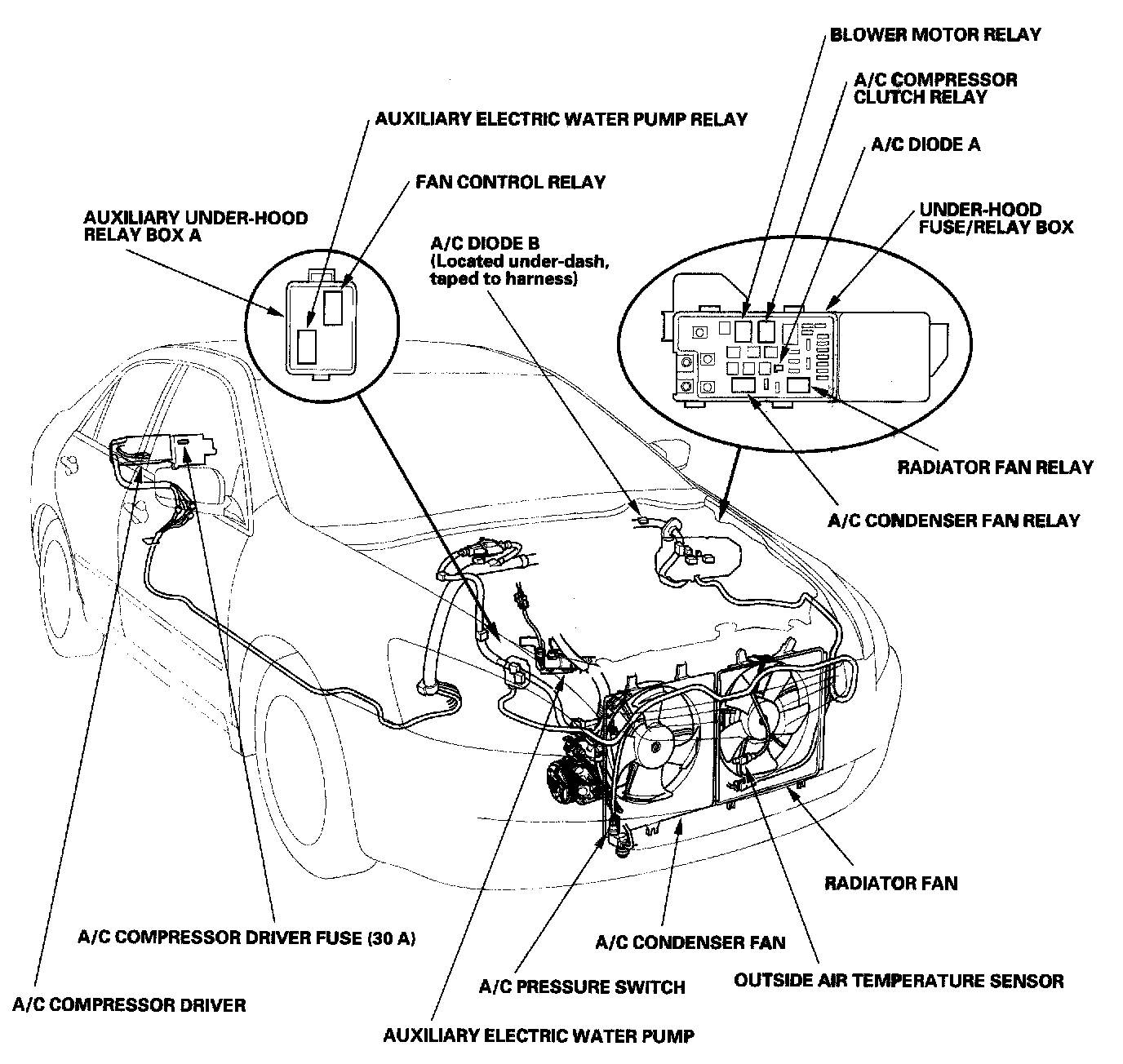

Climate Control - Component Location Index:
