4th Clutch Transmission Fluid Pressure Switch Replacement

4th Clutch Transmission Fluid Pressure Switch Replacement
1. Remove the air cleaner assembly.

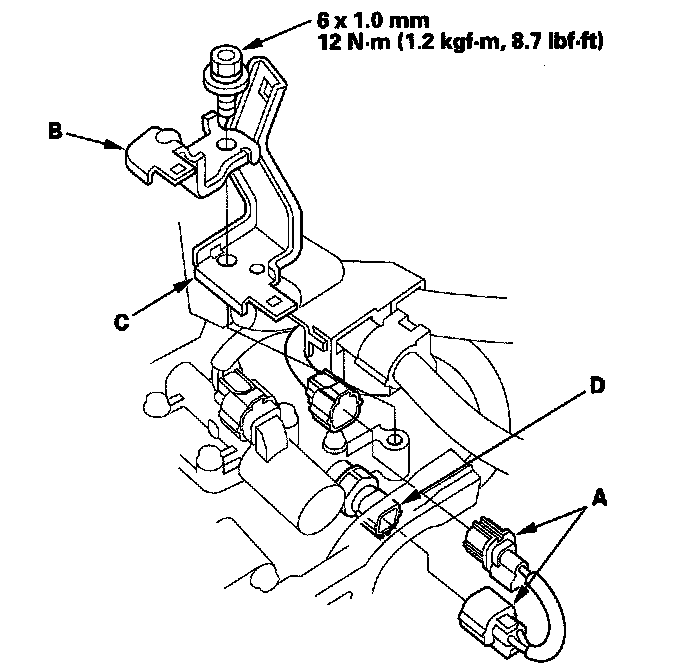

2. Disconnect the 4th clutch transmission fluid pressure switch harness connectors (A).





3. Remove the bolt securing the connector bracket, and remove the connector bracket (B) and harness clamp bracket (C).
4. Remove the 4th clutch transmission fluid pressure switch (D).
5. Make sure there is no water, oil, dust, or foreign particles inside the connector.

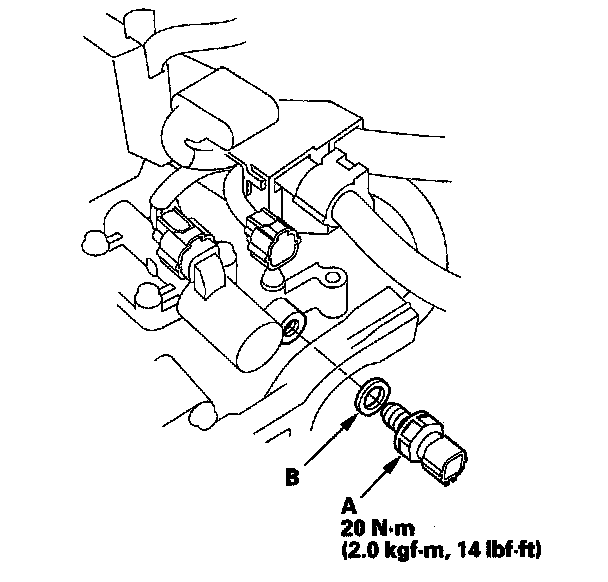

6. Install the new 4th clutch transmission fluid pressure switch (A) and a new sealing washer (B), and tighten the switch.





7. Install the harness clamp bracket and connector bracket with the mounting bolt.
8. Connect the connectors securely.
9. Install the air cleaner assembly.
