Brake Warning Indicator: Service and Repair

Buzzer Replacement
1. Remove the subdisplay Visor.

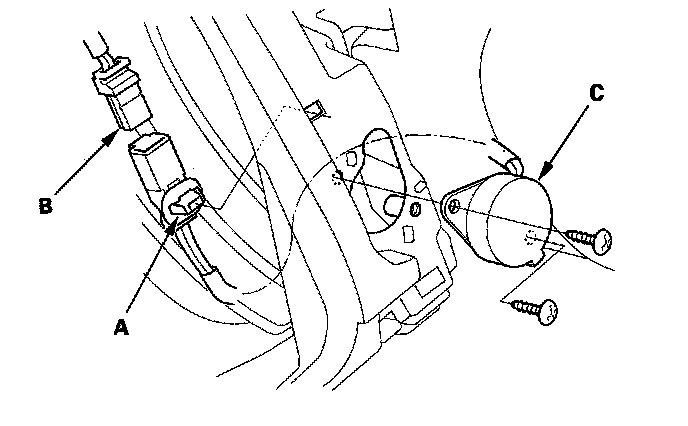

2. Remove the clip (A), and disconnect the buzzer 2P connector (B).





3. Remove the buzzer (C).
4. Install the buzzer in the reverse order of removal.
5. Do the BUZZER ON in the FUNCTION TEST with the HDS, and check that the buzzer can sound.
