Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2007
>>
Civic L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Amplifier, Sound System
Amplifier, Sound System

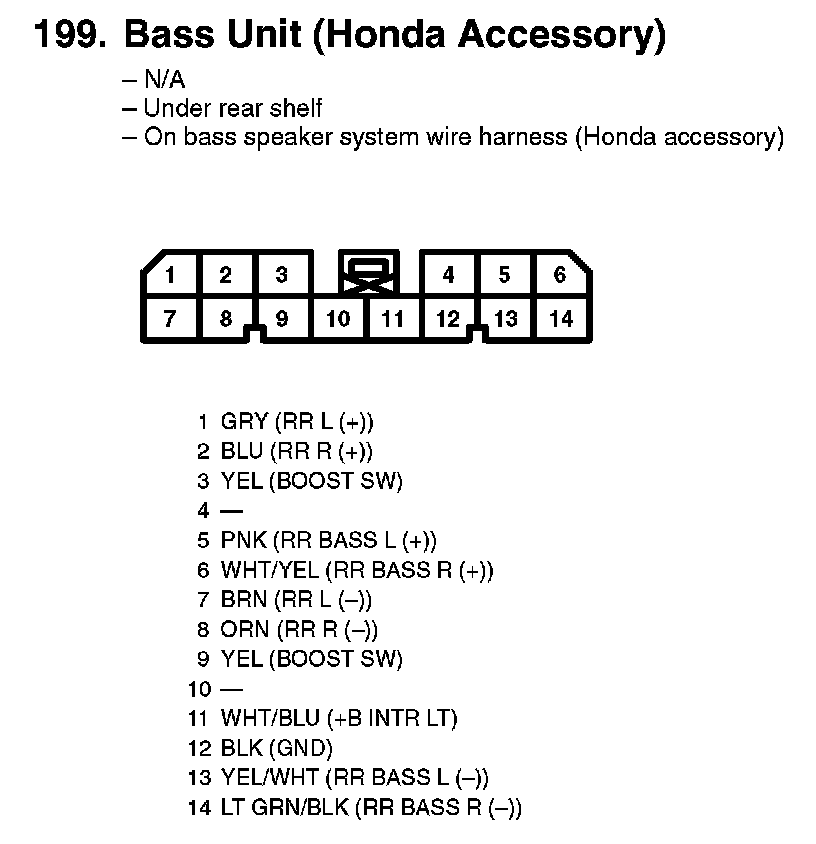

199. Bass Unit (Honda Accessory):
199. Bass Unit (Honda Accessory):
